Bosch DX2010-CHI DX2010 Series Input Expansion Module Input Expander 8 Zones F.01U.123.704

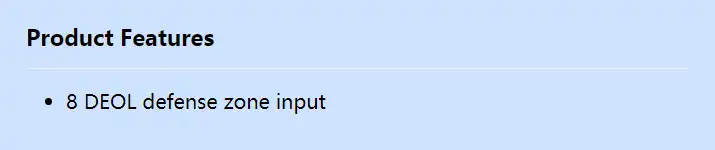

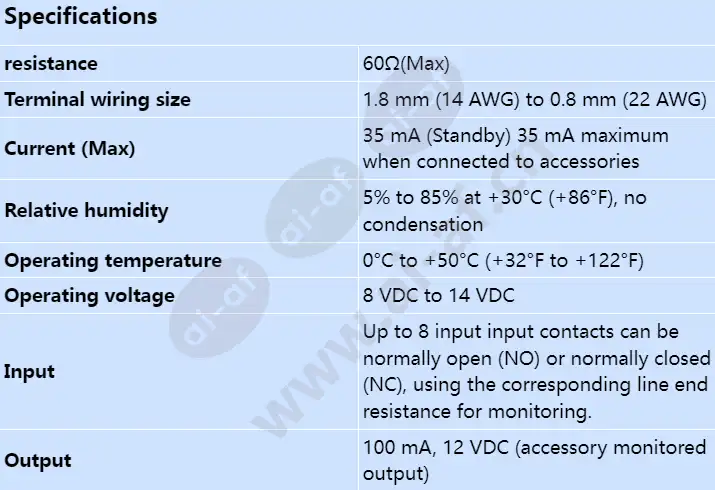

8 DEOL defense zone input Outputs 100 mA, 12 VDC (accessory monitored output) Working temperature 0°C to +50°C (+32°F to +122°F) Relative Humidity 5% to 85% at +30°C (+86°F), no condensation Inputs Up to 8 input input contacts can be normally open (NO) or normally closed (NC), using the corresponding line end resistance for monitoring. resistance 60Ω(Max) Terminal wiring size 1.8 mm (14 AWG) to 0.8 mm (22 AWG) Current (Max) 35 mA (Standby) 35 mA maximum when connected to accessories Operating voltage 8 VDC to 14 VDC
