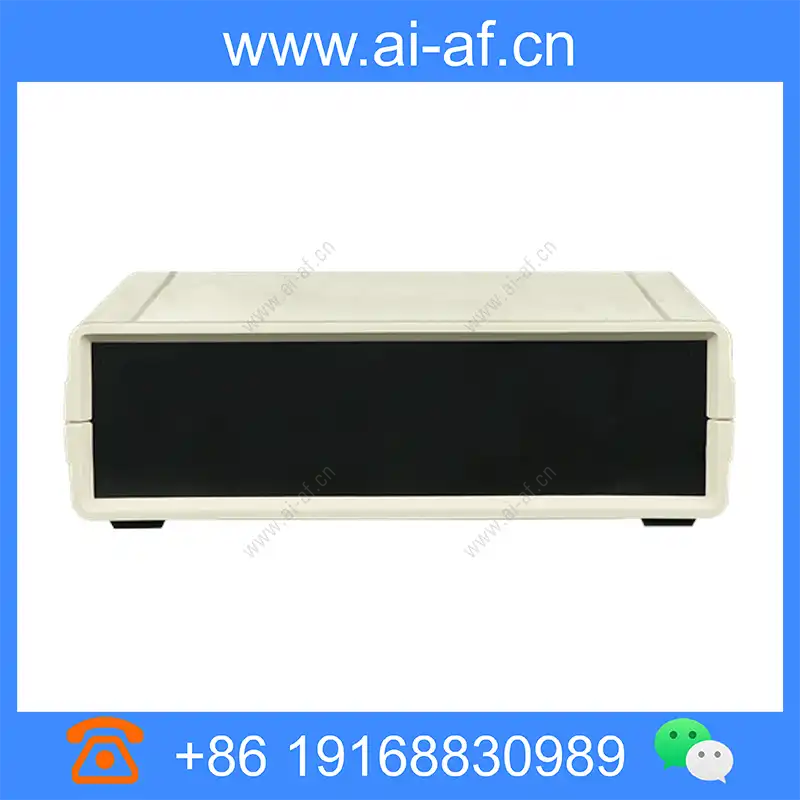

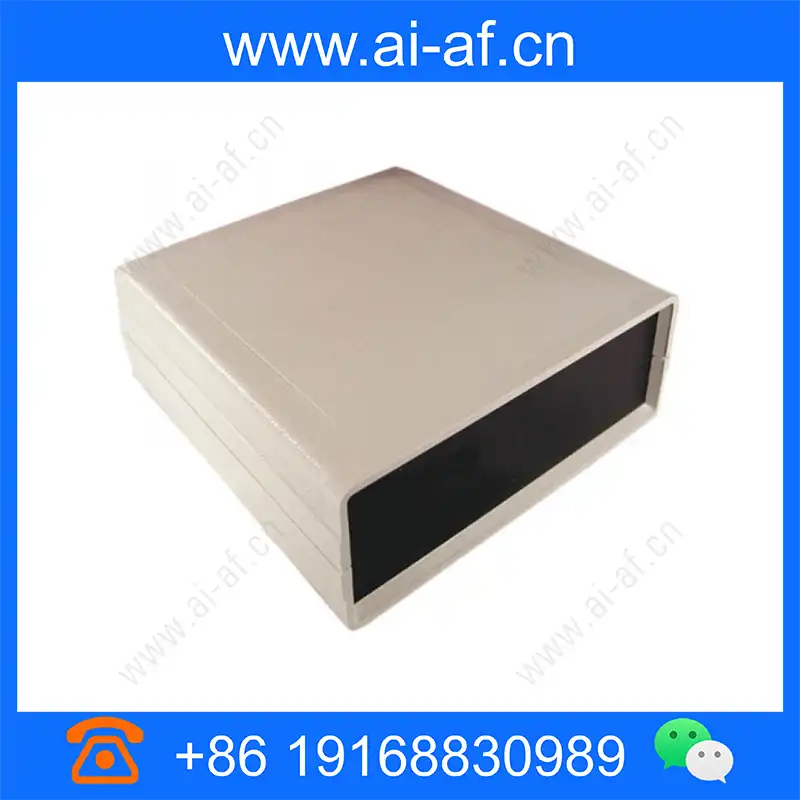

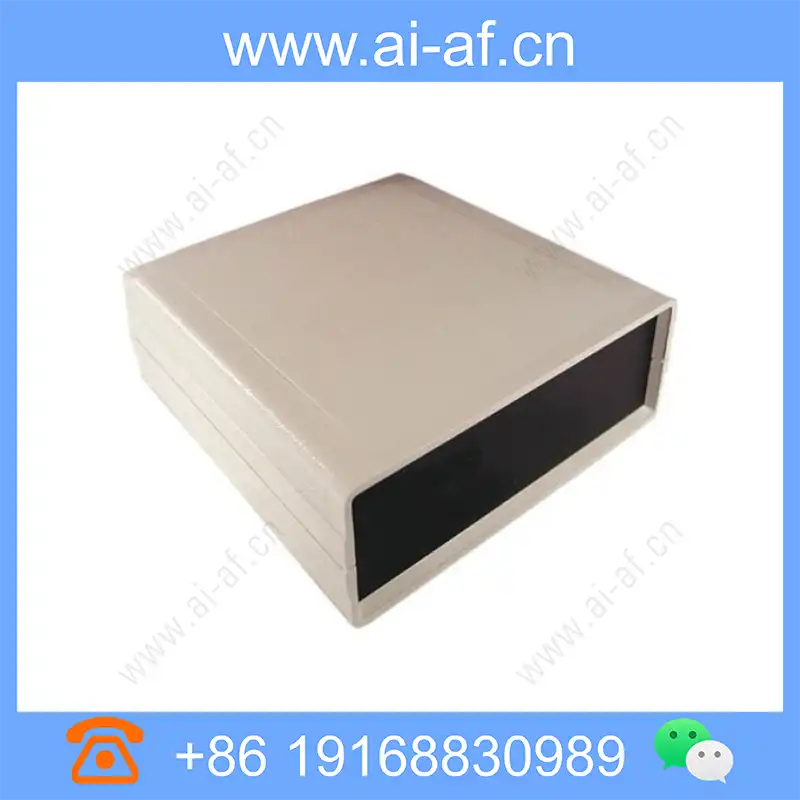

Bosch D9131A Parallel printer interface module 4.998.800.209

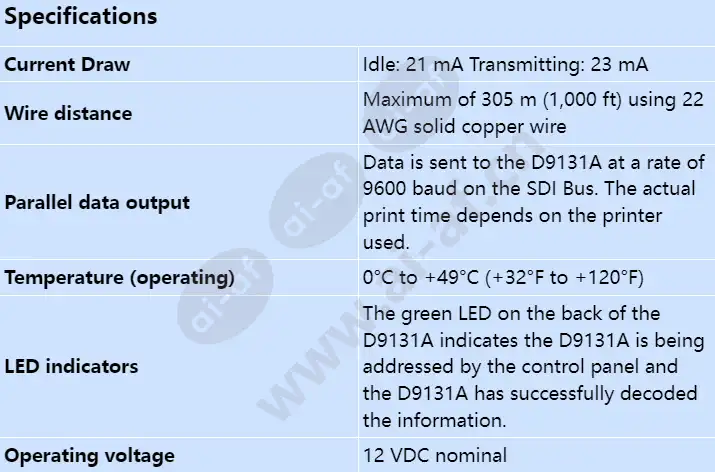

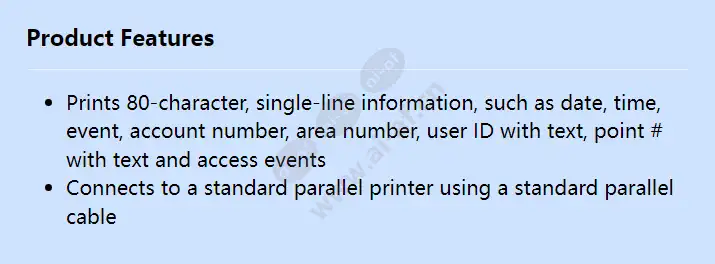

Prints 80-character, single-line information, such as date, time, event, account number, area number, user ID with text, point # with text and access events Connects to a standard parallel printer using a standard parallel cable Operating Voltage 12 VDC nominal Current Draw Idle: 21 mA Transmitting: 23 mA Temperature (operating) 0°C to +49°C (+32°F to +120°F) Wire distance Maximum of 305 m (1,000 ft) using 22 AWG solid copper wire Parallel data output Data is sent to the D9131A at a rate of 9600 baud on the SDI Bus. The actual print time depends on the printer used. LED indicators The green LED on the back of the D9131A indicates the D9131A is being addressed by the control panel and the D9131A has successfully decoded the information.
