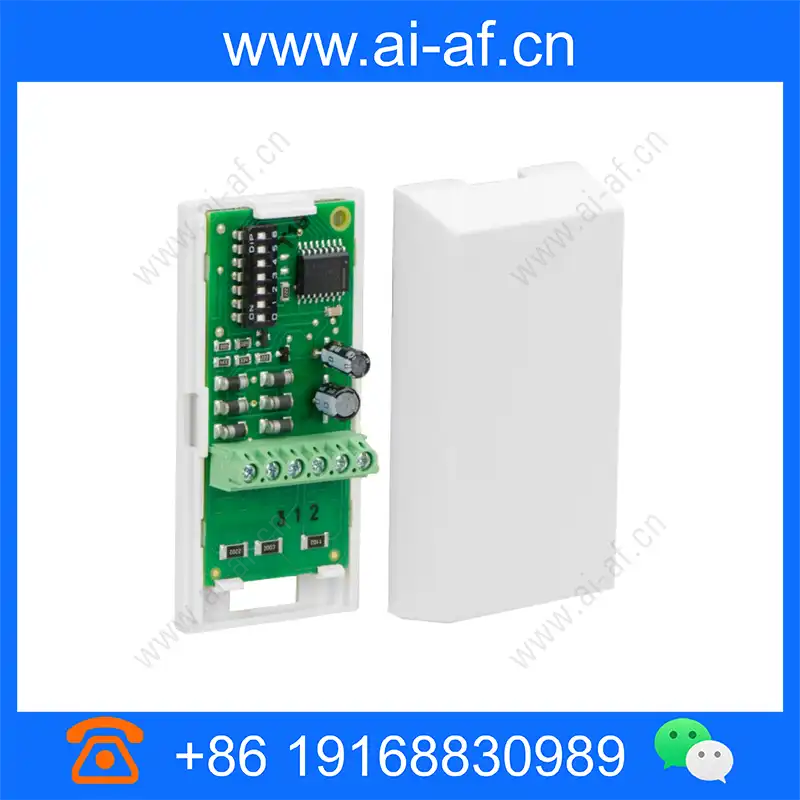

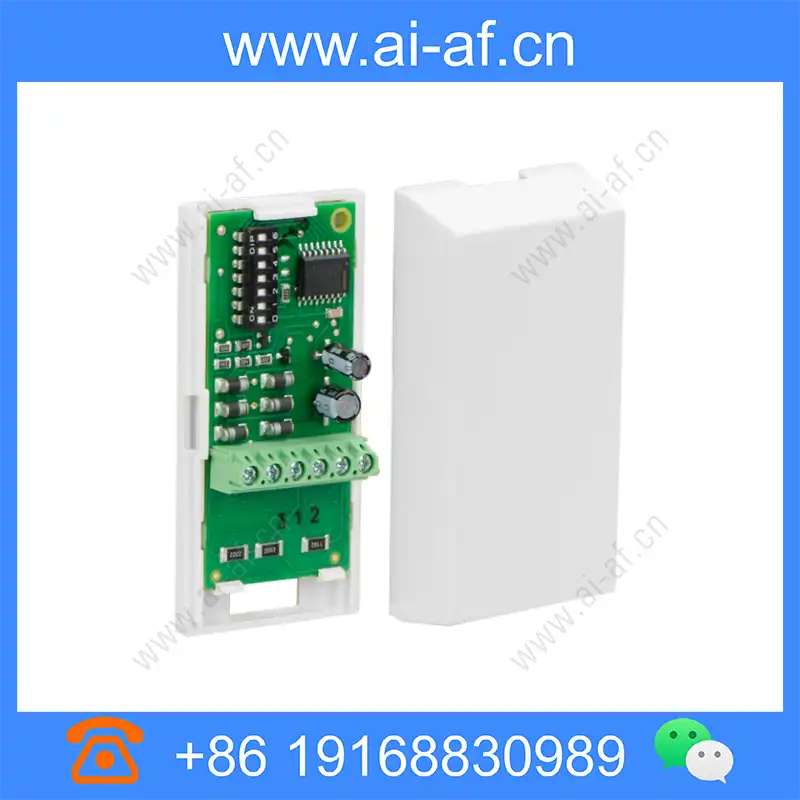

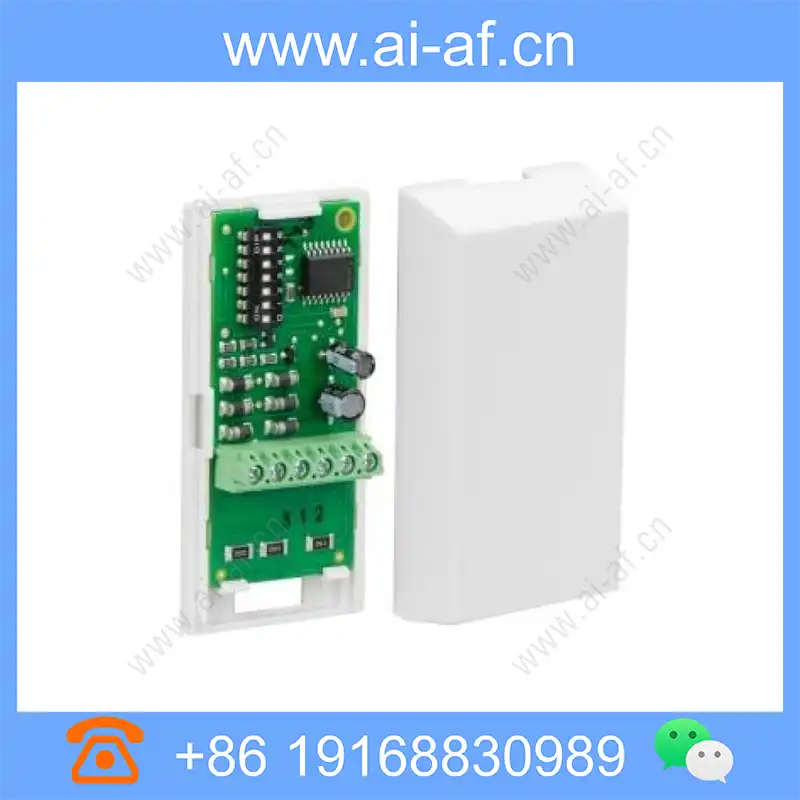

Bosch D9127U D9127 Series POPIT Modules POPIT input module without tamper 4.998.800.196

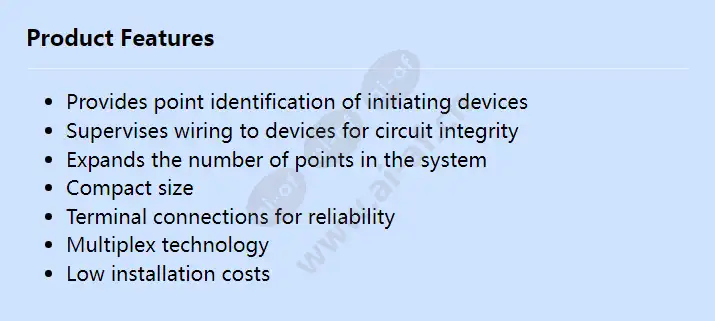

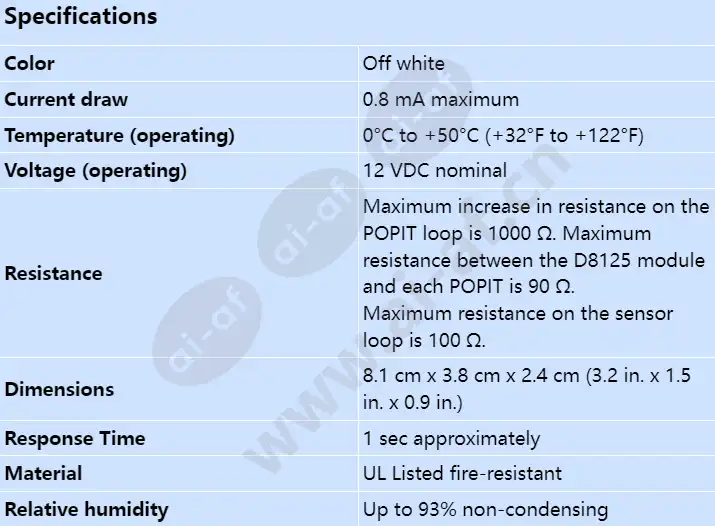

Provides point identification of initiating devices Supervises wiring to devices for circuit integrity Expands the number of points in the system Compact size Terminal connections for reliability Multiplex technology Low installation costs Relative humidity Up to 93% non-condensing Temperature (operating) 0°C to +50°C (+32°F to +122°F) Color Off white Dimensions 8.1 cm x 3.8 cm x 2.4 cm (3.2 in. x 1.5 in. x 0.9 in.) Material UL Listed fire-resistant Current draw 0.8 mA maximum Resistance Maximum increase in resistance on the POPIT loop is 1000 Ω. Maximum resistance between the D8125 module and each POPIT is 90 Ω.
Maximum resistance on the sensor loop is 100 Ω. Voltage (operating) 12 VDC nominal Response time 1 sec approximately
