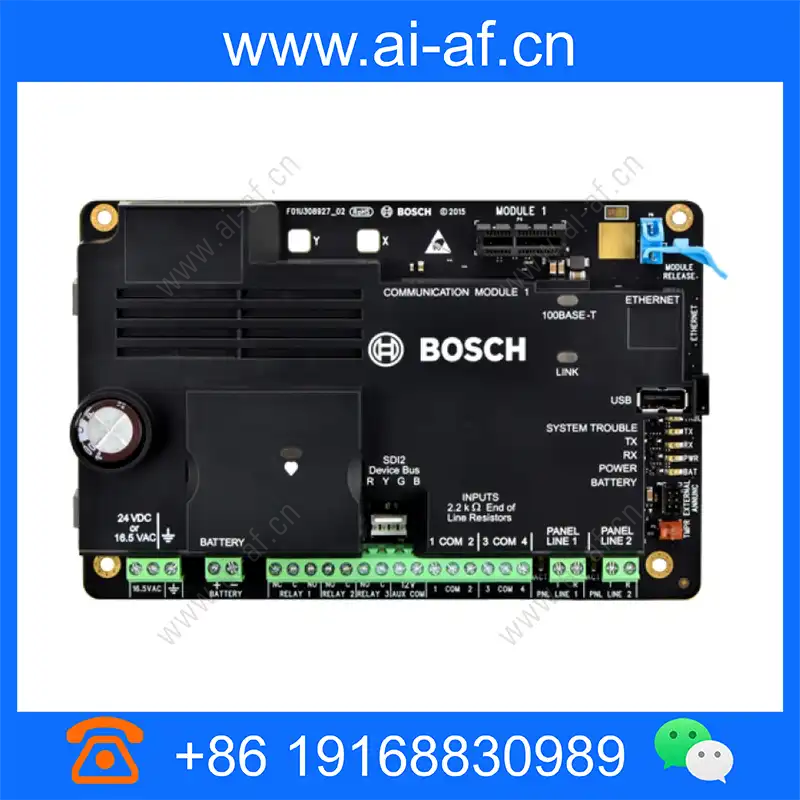

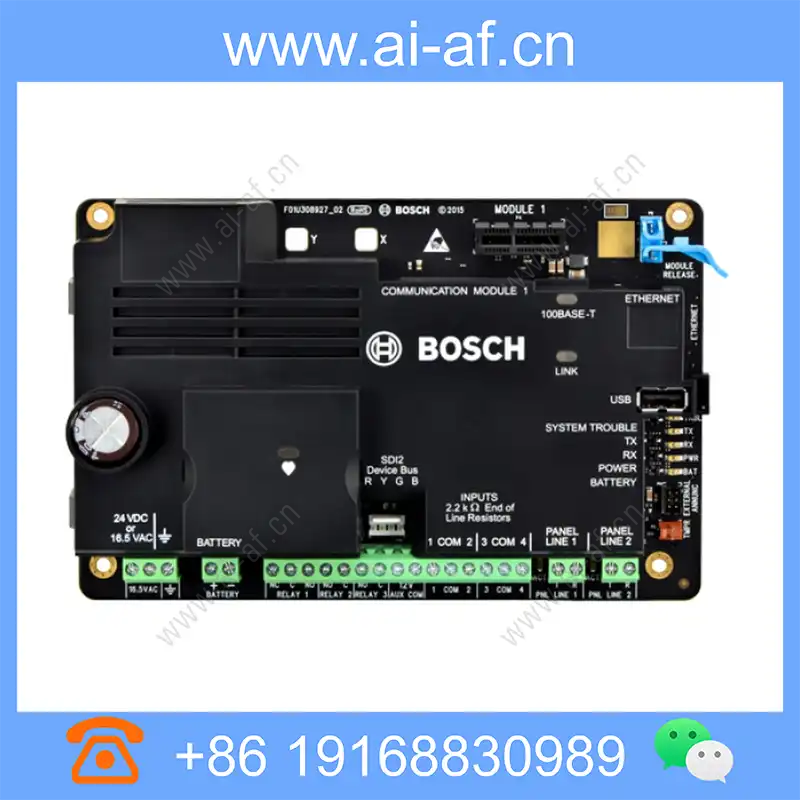

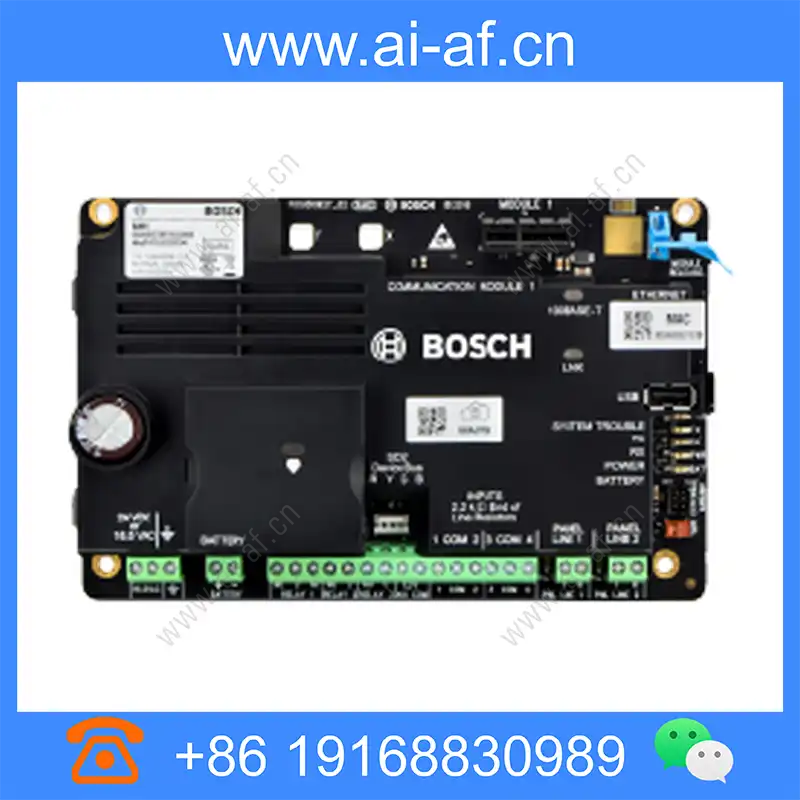

Bosch B465 Universal Dual Path Communicator F.01U.323.794

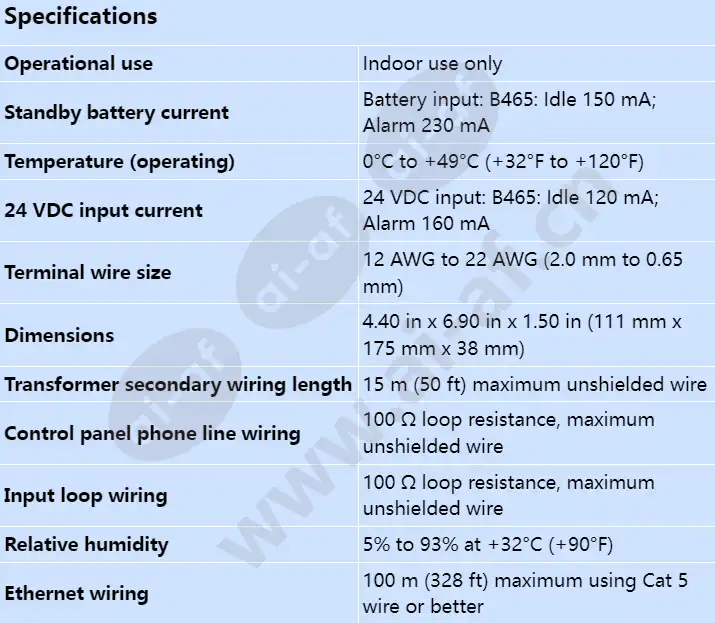

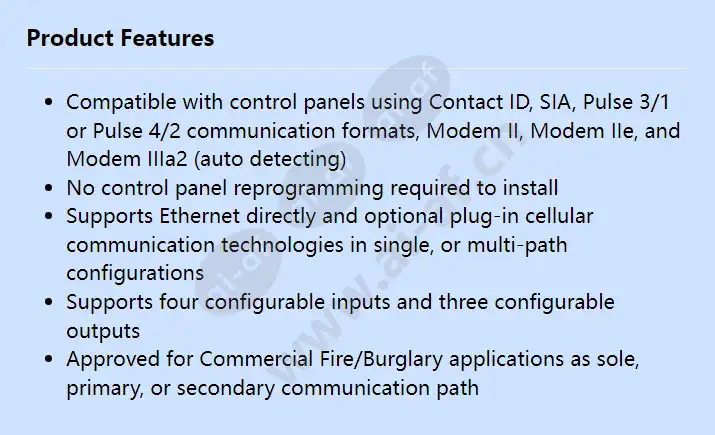

Compatible with control panels using Contact ID, SIA, Pulse 3/1 or Pulse 4/2 communication formats, Modem II, Modem IIe, and Modem IIIa2 (auto detecting) No control panel reprogramming required to install Supports Ethernet directly and optional plug-in cellular communication technologies in single, or multi-path configurations Supports four configurable inputs and three configurable outputs Approved for Commercial Fire/Burglary applications as sole, primary, or secondary communication path Dimensions 4.40 in x 6.90 in x 1.50 in (111 mm x 175 mm x 38 mm) Relative humidity 5% to 93% at +32°C (+90°F) Temperature (operating) 0°C to +49°C (+32°F to +120°F) Operational use Indoor use only Standby battery current Battery input: B465: Idle 150 mA; Alarm 230 mA 24 VDC input current 24 VDC input:
