Bosch B465-MR-1640 Universal Dual Path Communicator Kit None

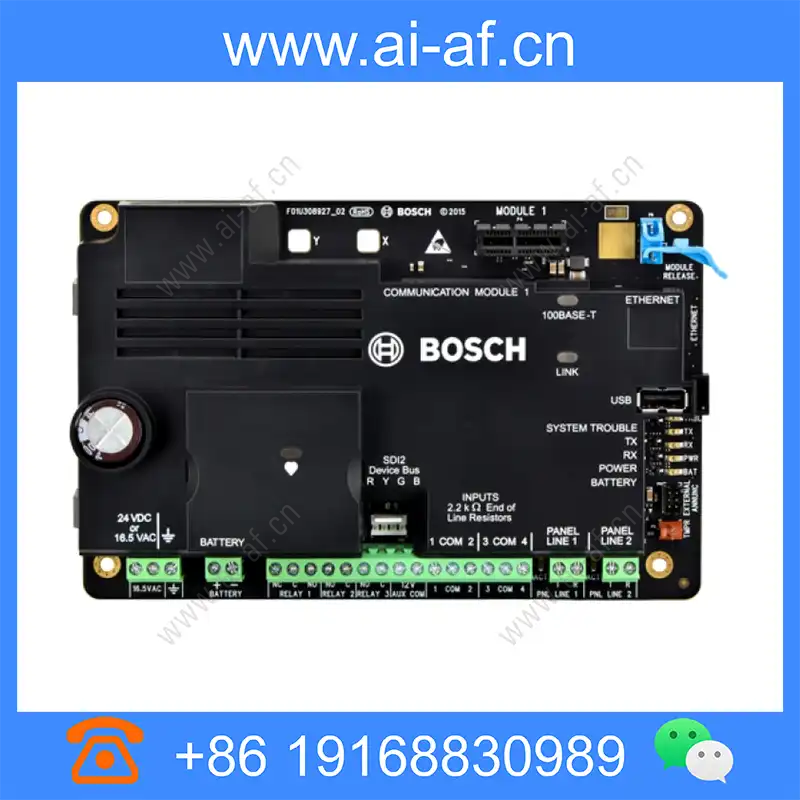

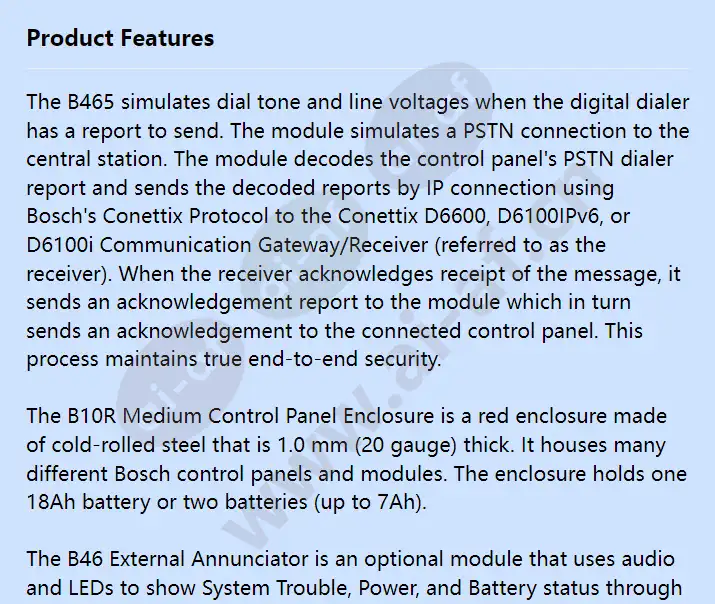

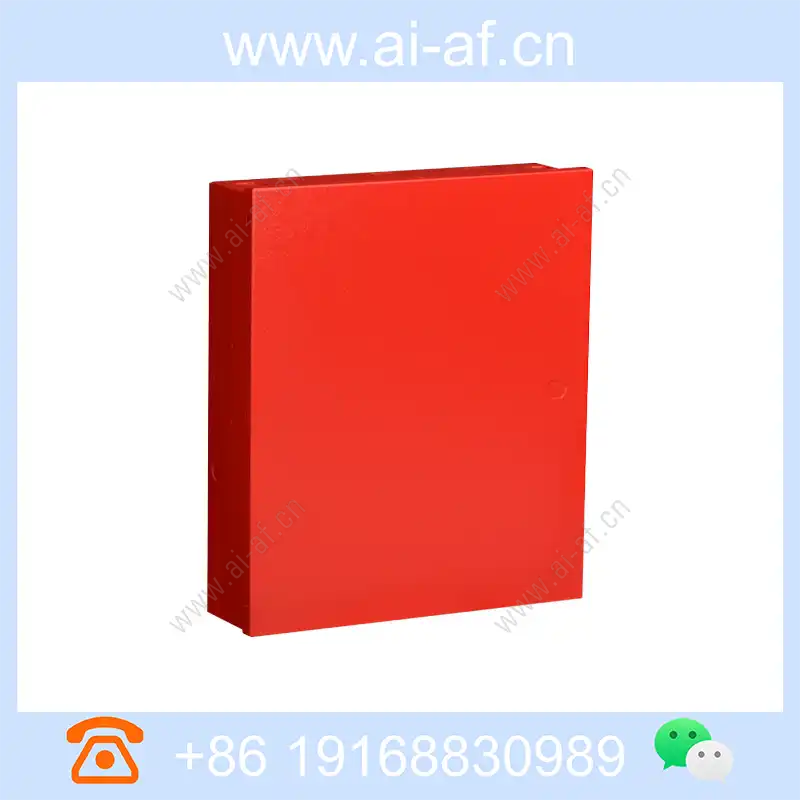

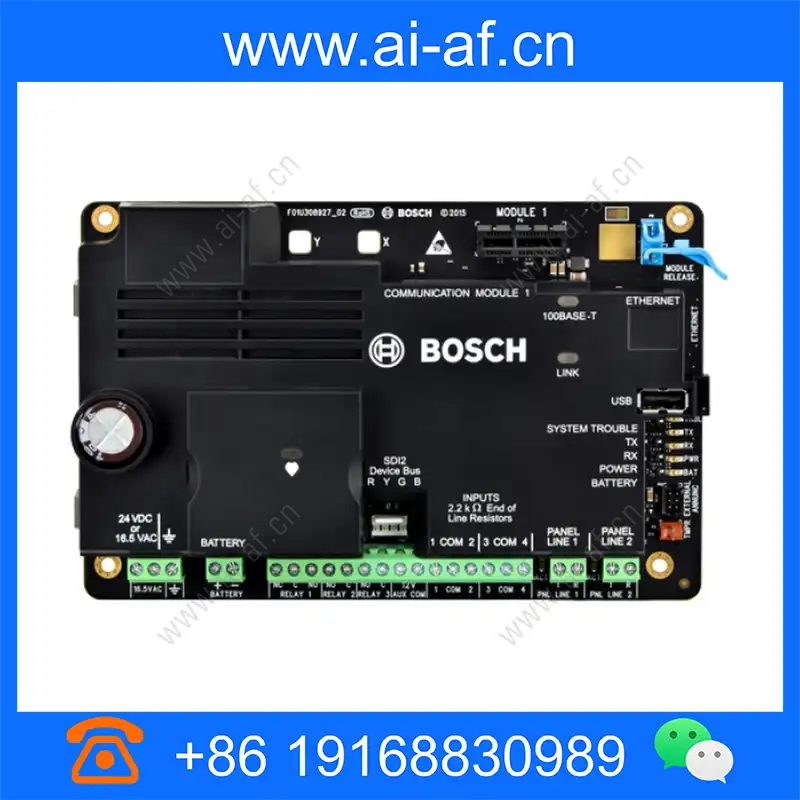

The B465 simulates dial tone and line voltages when the digital dialer has a report to send. The module simulates a PSTN connection to the central station. The module decodes the control panel's PSTN dialer report and sends the decoded reports by IP connection using Bosch's Conettix Protocol to the Conettix D6600, D6100IPv6, or D6100i Communication Gateway/Receiver (referred to as the receiver). When the receiver acknowledges receipt of the message, it sends an acknowledgement report to the module which in turn sends an acknowledgement to the connected control panel. This process maintains true end-to-end security. The B10R Medium Control Panel Enclosure is a red enclosure made of cold-rolled steel that is 1.0 mm (20 gauge) thick. It houses many different Bosch control panels and modules.
