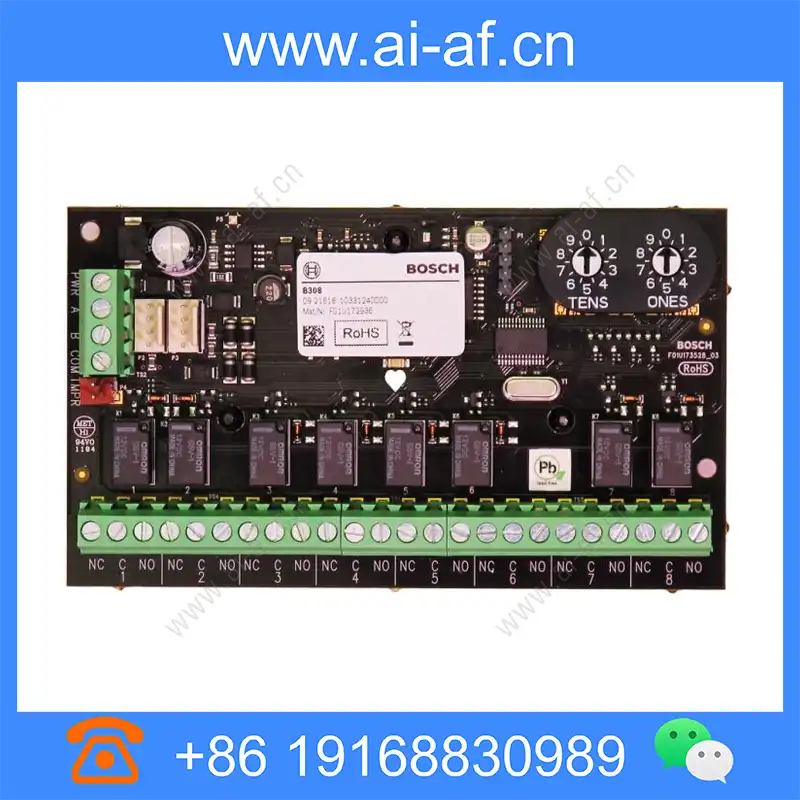

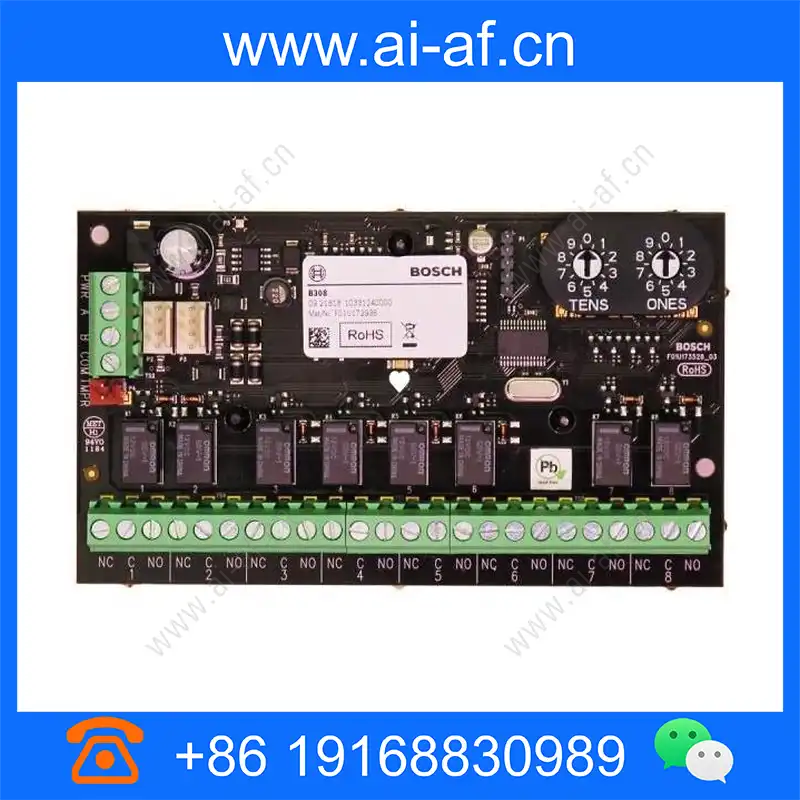

Bosch B308 SDI2 8-Output Expansion Module F.01U.397.025

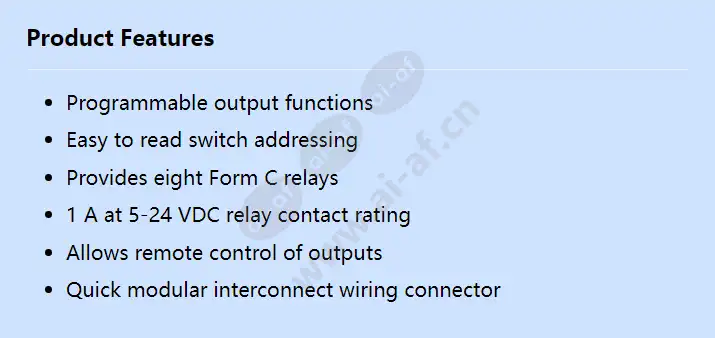

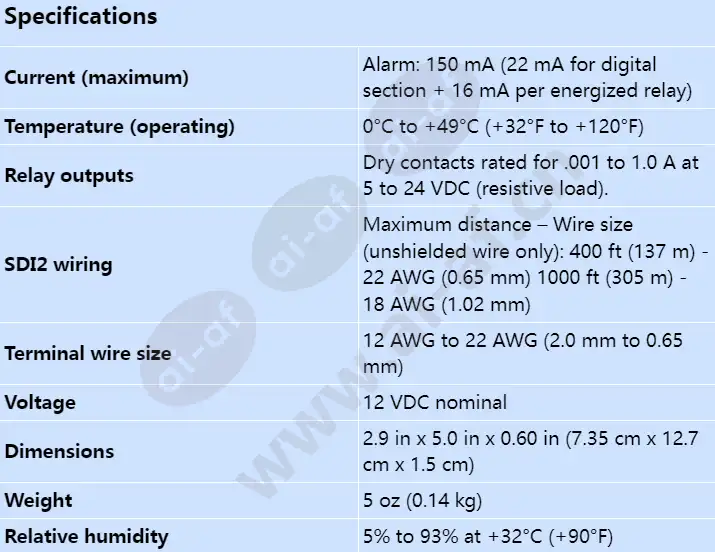

Programmable output functions Easy to read switch addressing Provides eight Form C relays 1 A at 5-24 VDC relay contact rating Allows remote control of outputs Quick modular interconnect wiring connector Dimensions 2.9 in x 5.0 in x 0.60 in (7.35 cm x 12.7 cm x 1.5 cm) Weight 5 oz (0.14 kg) Relative humidity 5% to 93% at +32°C (+90°F) Temperature (operating) 0°C to +49°C (+32°F to +120°F) Current (maximum) Alarm: 150 mA (22 mA for digital section + 16 mA per energized relay) Relay outputs Dry contacts rated for .001 to 1.0 A at 5 to 24 VDC (resistive load). Voltage 12 VDC nominal Terminal wire size 12 AWG to 22 AWG (2.0 mm to 0.65 mm) SDI2 wiring Maximum distance – Wire size (unshielded wire only): 400 ft (137 m) - 22 AWG (0.65 mm) 1000 ft (305 m) - 18 AWG (1.02 mm)
