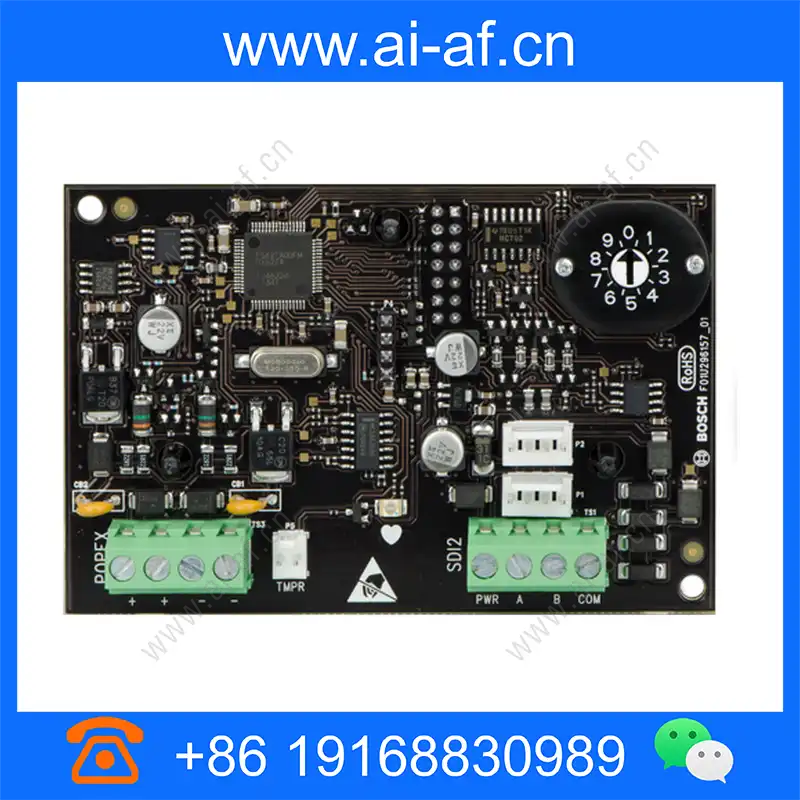

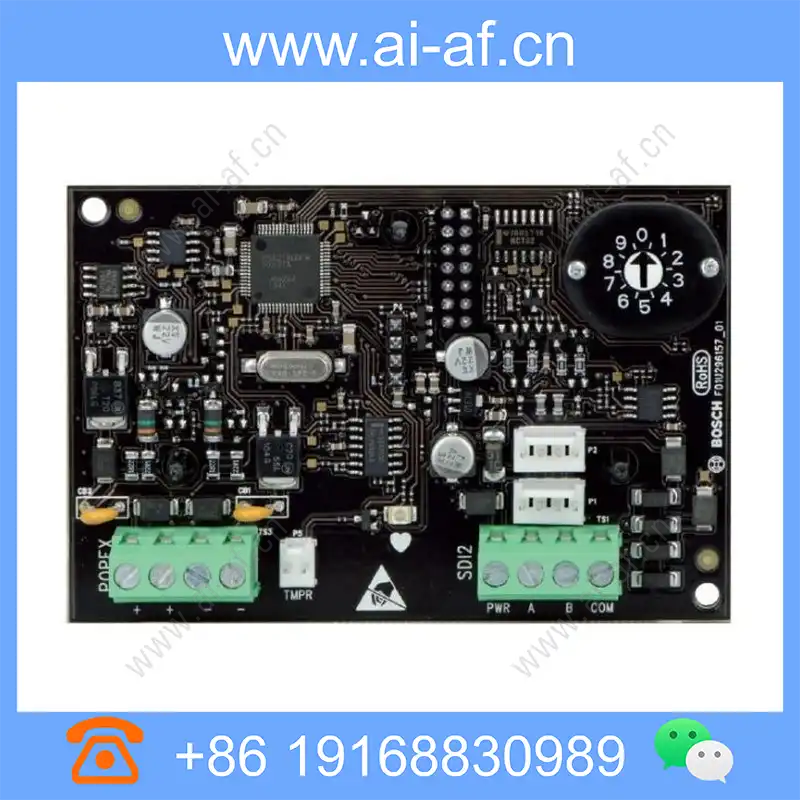

Bosch B299 POPEX Expansion module SDI2 F.01U.385.673

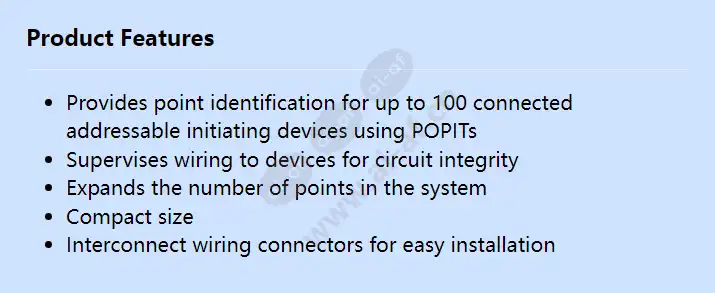

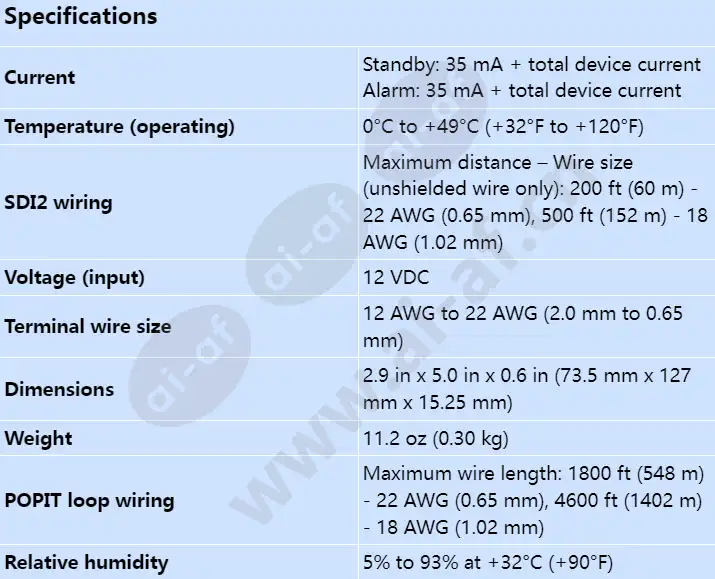

Provides point identification for up to 100 connected addressable initiating devices using POPITs Supervises wiring to devices for circuit integrity Expands the number of points in the system Compact size Interconnect wiring connectors for easy installation Dimensions 2.9 in x 5.0 in x 0.6 in (73.5 mm x 127 mm x 15.25 mm) Weight 11.2 oz (0.30 kg) Relative humidity 5% to 93% at +32°C (+90°F) Temperature (operating) 0°C to +49°C (+32°F to +120°F) Current Standby: 35 mA + total device current Alarm: 35 mA + total device current Voltage (input) 12 VDC Terminal wire size 12 AWG to 22 AWG (2.0 mm to 0.65 mm) SDI2 wiring Maximum distance – Wire size (unshielded wire only): 200 ft (60 m) - 22 AWG (0.65 mm), 500 ft (152 m) - 18 AWG (1.02 mm) POPIT loop wiring Maximum wire length: 1800 ft (548 m) -
