Bosch ARD-AYBS6360 LECTUS duo 3000 classic line Card reader with keypad MIFAREclassic F.01U.166.056

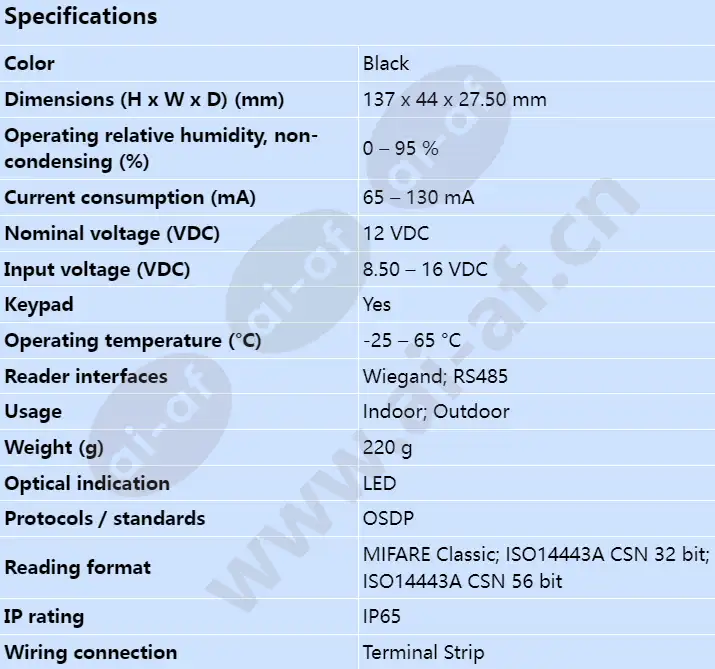

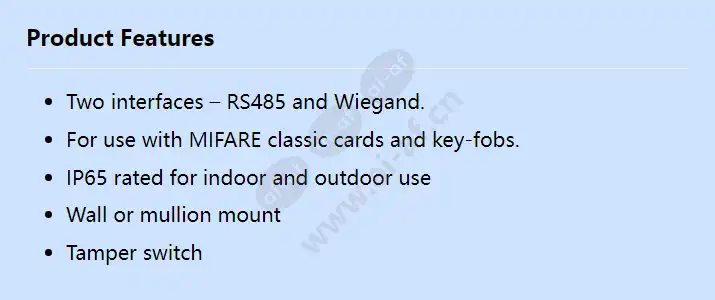

Two interfaces – RS485 and Wiegand. For use with MIFARE classic cards and key-fobs. IP65 rated for indoor and outdoor use Wall or mullion mount Tamper switch Color Black Current consumption (mA) 65 – 130 mA Dimensions (H x W x D) (mm) 137 x 44 x 27.50 mm Input voltage (VDC) 8.50 – 16 VDC IP rating IP65 Keypad Yes Nominal voltage (VDC) 12 VDC Operating relative humidity, non-condensing (%) 0 – 95 % Operating temperature (°C) -25 – 65 °C Optical indication LED Protocols / standards OSDP Reader interfaces Wiegand; RS485 Reading format MIFARE Classic; ISO14443A CSN 32 bit; ISO14443A CSN 56 bit Usage Indoor; Outdoor Weight (g) 220 g Wiring connection Terminal Strip
