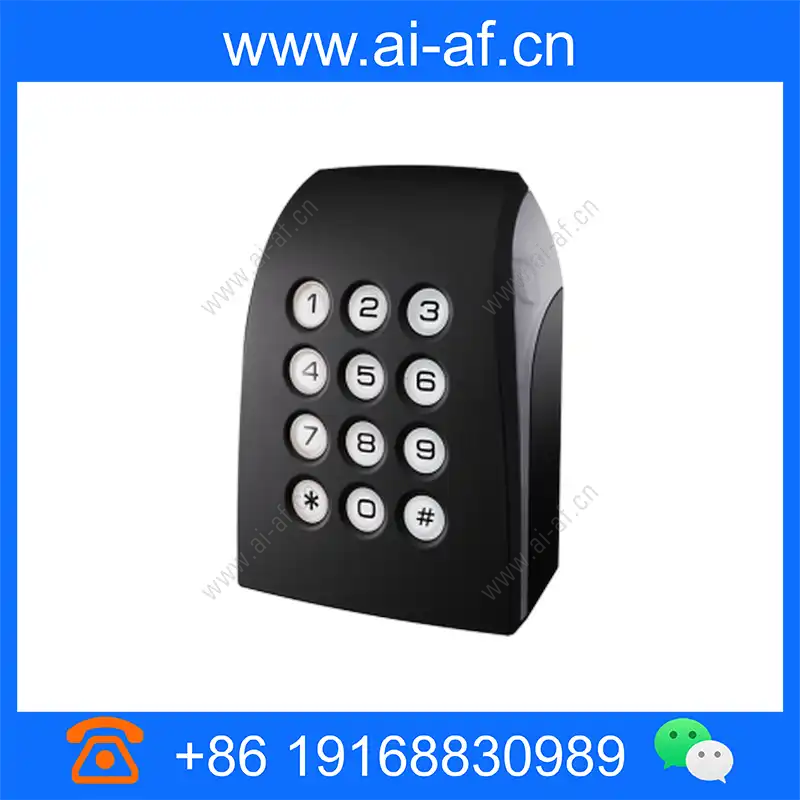

Bosch ARCR31B103B101A STid Architect Card reader Wiegand standard keypad F.01U.410.434

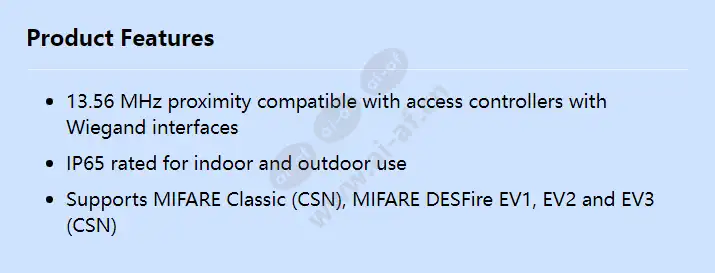

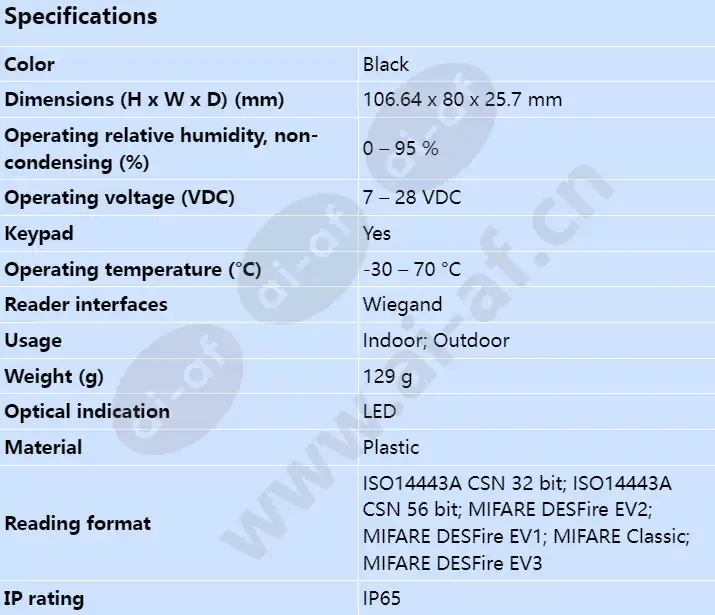

13.56 MHz proximity compatible with access controllers with Wiegand interfaces IP65 rated for indoor and outdoor use Supports MIFARE Classic (CSN), MIFARE DESFire EV1, EV2 and EV3 (CSN) Color Black Dimensions (H x W x D) (mm) 106.64 x 80 x 25.7 mm IP rating IP65 Keypad Yes Material Plastic Operating relative humidity, non-condensing (%) 0 – 95 % Operating temperature (°C) -30 – 70 °C Operating voltage (VDC) 7 – 28 VDC Optical indication LED Reader interfaces Wiegand Reading format ISO14443A CSN 32 bit; ISO14443A CSN 56 bit; MIFARE DESFire EV2; MIFARE DESFire EV1; MIFARE Classic; MIFARE DESFire EV3 Usage Indoor; Outdoor Weight (g) 129 g
