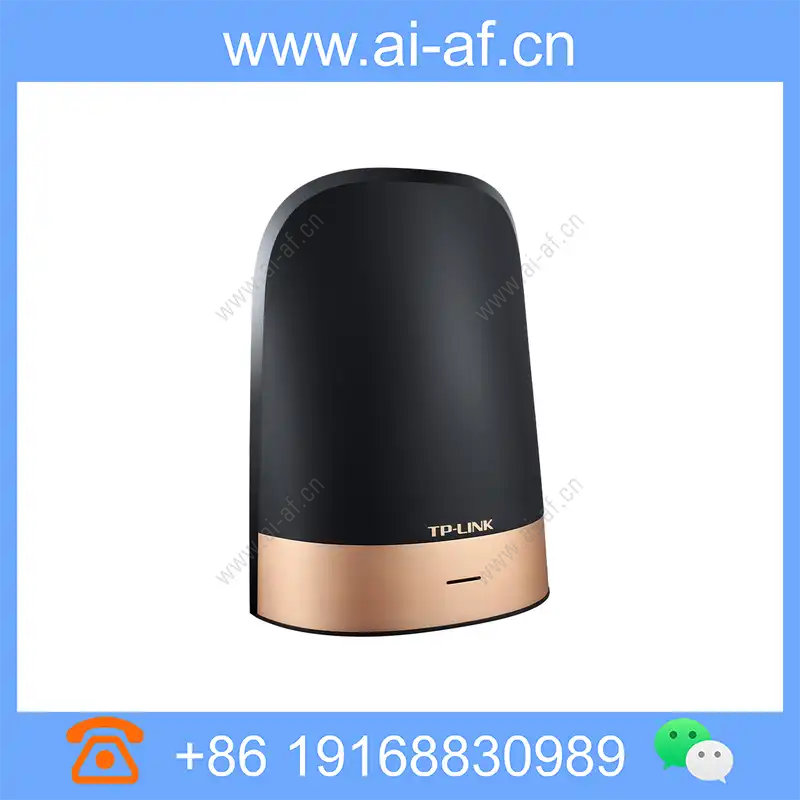

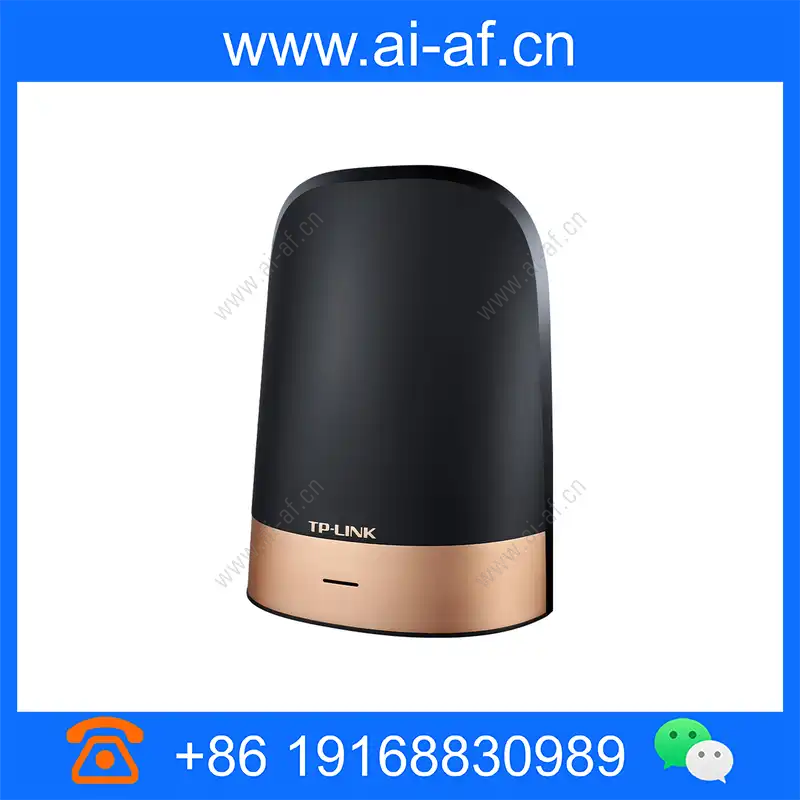

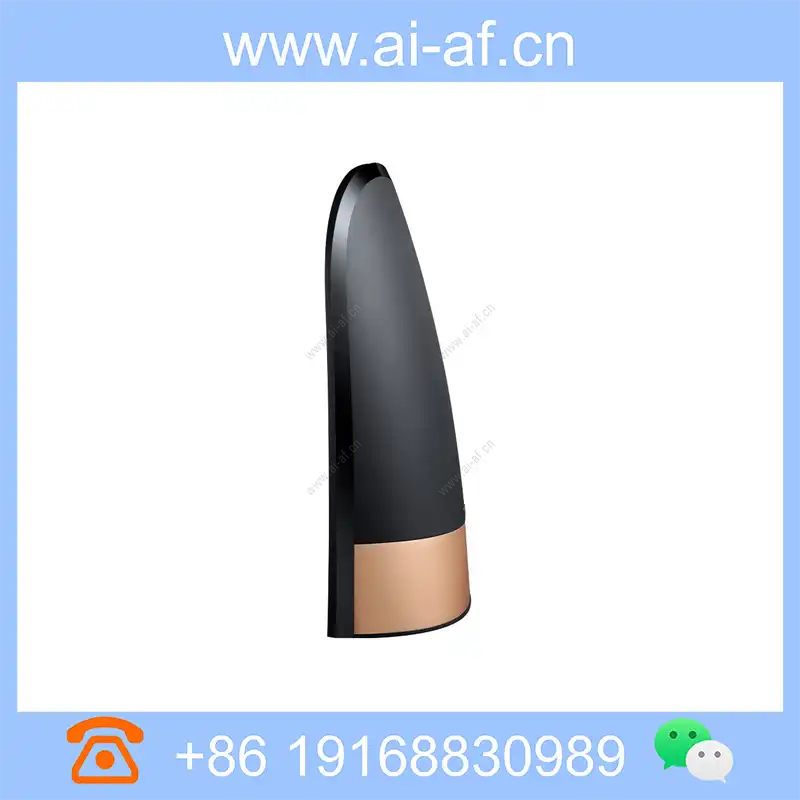

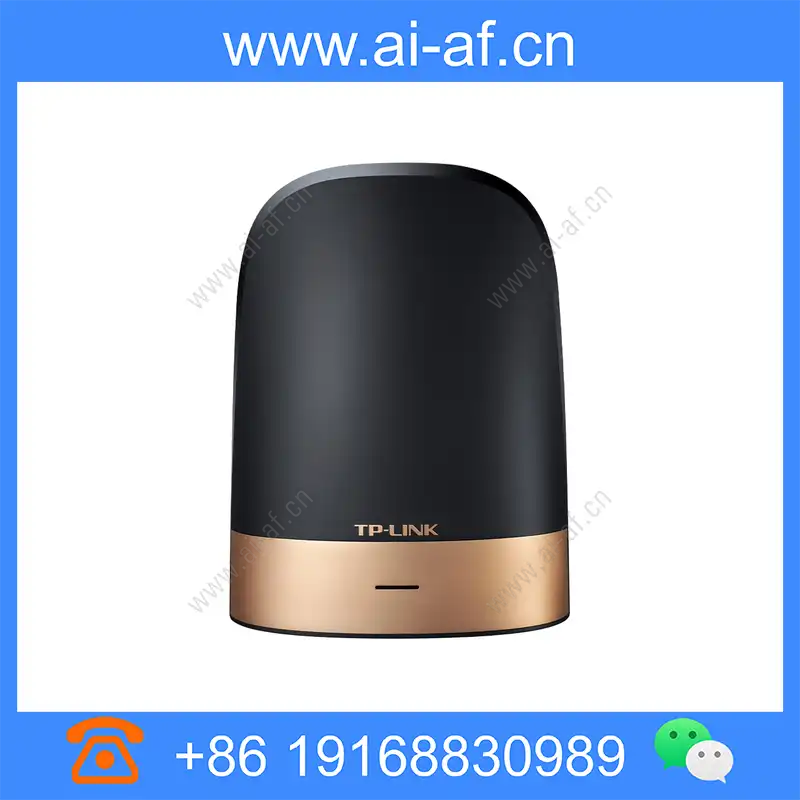

TP-LINK TL-XTR6690 Easy Exhibition Version AX6600 Tri-band Super Wi-Fi 6 Wireless Router (10G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
Maximum wireless rate 6579Mbps (2.4GHz 574Mbps, 5GHz band 1 4804Mbps, 5GHz band 2 1201Mbps)
p>Beamforming
MU-MIMO
Wi-Fi multi-frequency integration
Easy expansion function

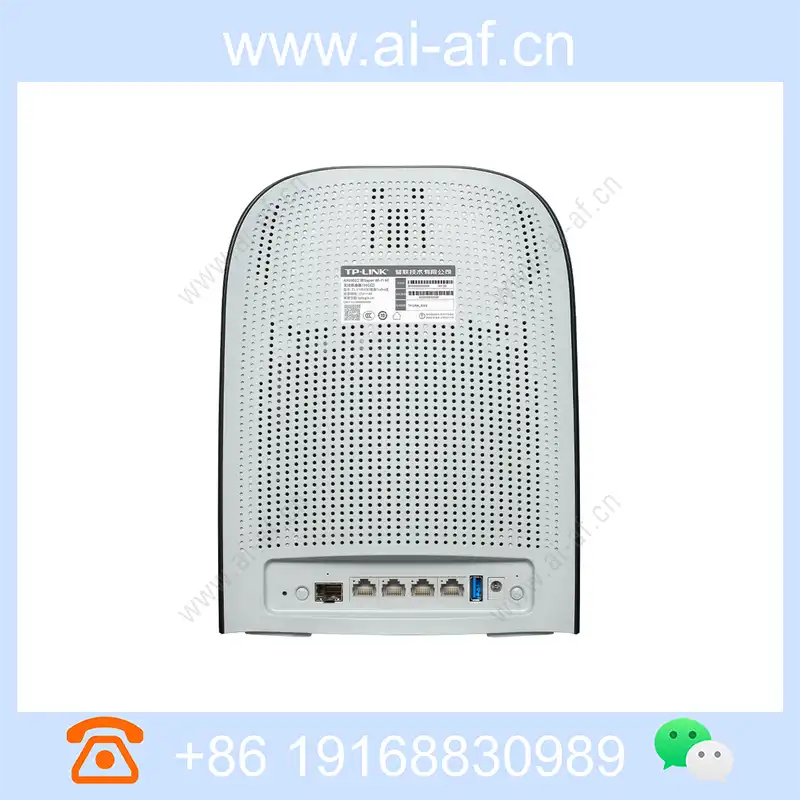

Ethernet port1 10Gbps SFP+ port
1 2.5Gbps Ethernet port
3 Gigabit Ethernet ports
(All of the above Support WAN/LAN blind insertion)
1 USB 3.0 port
Bare size (LxWxH): 198x87x261mm
Package size (LxWxH): 419.5x263.5x119.5mm
< p>Bare machine weight: 1.06kg (single machine, without accessories and packaging)Whole machine weight: 1.35kg (single machine, including accessories and packaging)
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol Maximum wireless rate 6579Mbps (2.4GHz 574Mbps, 5GHz band 1 4804Mbps, 5GHz band 2 1201Mbps) p>Beamforming MU-MIMO Wi-Fi multi-frequency integration Easy expansion function |
| Ethernet port | 1 10Gbps SFP+ port 1 2.5Gbps Ethernet port 3 Gigabit Ethernet ports (All of the above Support WAN/LAN blind insertion) |
| USB port | 1 USB 3.0 port |
| size and weight | Bare size (LxWxH): 198x87x261mm Package size (LxWxH): 419.5x263.5x119.5mm < p>Bare machine weight: 1.06kg (single machine, without accessories and packaging)Whole machine weight: 1.35kg (single machine, including accessories and packaging) |
| Antenna type | Built-in omnidirectional antenna |
| Software function | Signal Conditioning Terminal Management IP and MAC Address Binding AP Isolation Virtual Server< /p> Route/AP (wired relay)/bridge (wireless relay) mode port function customization (dual WAN port/IPTV port/port aggregation port/game dedicated port)< /p> Band function customization (game frequency band/visitor frequency band) Behavior control (application behavior restriction/website access restriction/web page upload and download restriction) VPN function ( Support IPSec, L2TP, PPTP) DDNS DMZ host wireless timer switch automatic cleaning p>File Sharing Local Online/Local Firmware/Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V / 4A power adapter |
| packing list | Router 1 Power Adapter 12V / 4A 1 Netline (1 m) 1 Quick Installation Guide 1 / p> parameter record label 1 photo |
