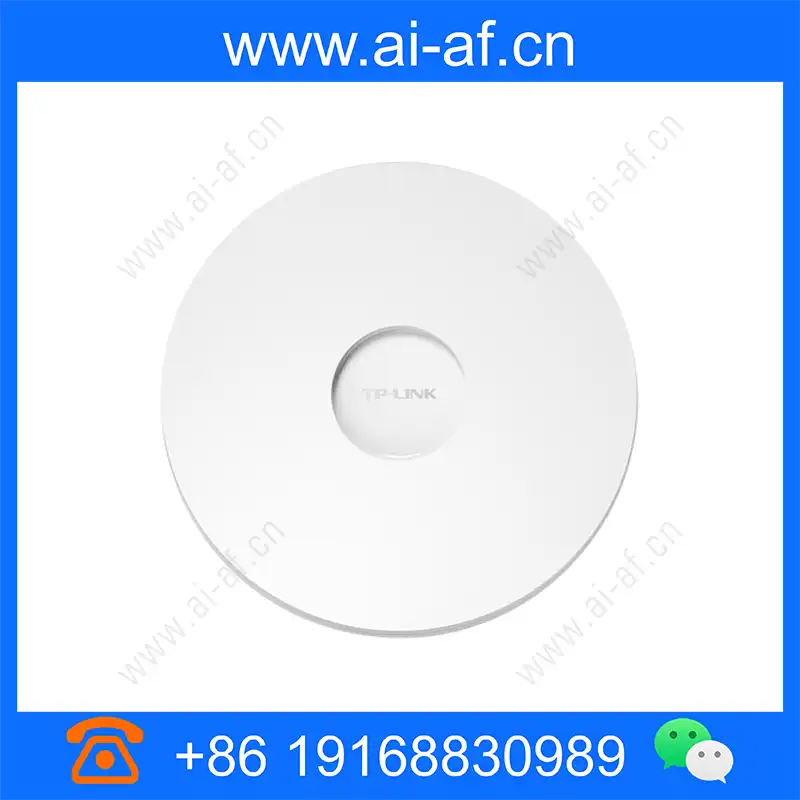

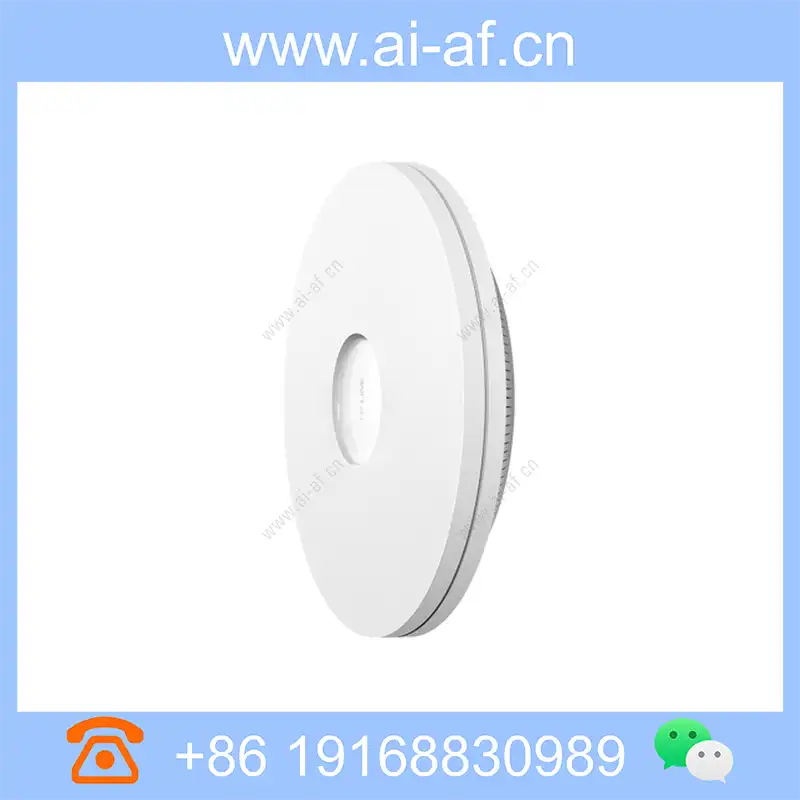

TP-LINK TL-XHDAP10209GC-PoE/DC Easy Exhibition AX10200 Tri-band Wi-Fi 6 Wireless Ceiling AP (2.5G Port)

Brand: TP-LINK
Model: TL-XHDAP10209GC-PoE-DC-EasyExpress-Edition
Dimensions: 390mm x 390mm x 73mm

11ax tri-band concurrent, three radios access at the same time, the highest wireless rate can reach 10182Mbps, which doubles the number of devices compared to ordinary dual-band APs 2.5G network port, providing high-speed wired connection The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional tri-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, 802.3bt/at standard PoE network cable power supply The port is hidden in the shell, and the wiring is beautiful Fat and thin, choose different working

Product Features


  • 11ax tri-band concurrent, three radios access at the same time, the highest wireless rate can reach 10182Mbps, which doubles the number of devices compared to ordinary dual-band APs
  • 2.5G network port, providing high-speed wired connection
  • The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs
  • Professional tri-band antenna to improve the signal quality of the coverage area
  • Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance

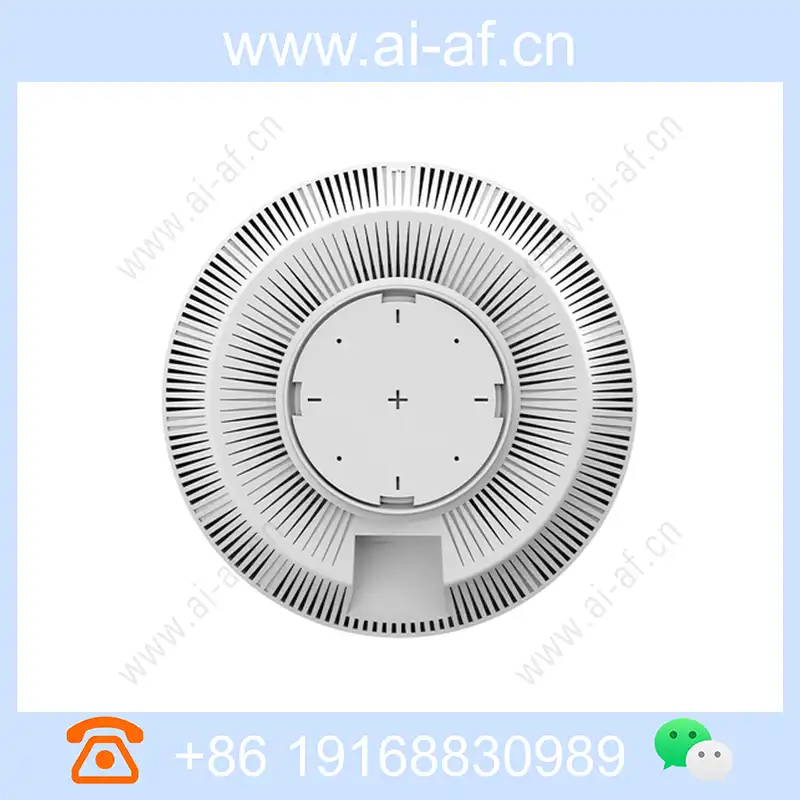

  • Simple ceiling installation, 802.3bt/at standard PoE network cable power supply
  • The port is hidden in the shell, and the wiring is beautiful
  • Fat and thin, choose different working modes in different environments
  • Independent hardware protection circuit can automatically recover abnormal AP
  • FIT mode supports radio frequency automatic tuning function
  • FIT mode supports intelligent roaming technology
  • Support 4K QAM transmission technology
  • Support centralized management of TP-LINK commercial network cloud platform
  • Support TP-LINK business cloud APP remote view / management

Technical Specifications

Property DescriptionProperty Value
Product model
  • TL-XHDAP10209GC-PoE/DC Easy Exhibit
Installation method
  • suction / wall installation
size
  • Φ390x73mm
wireless
  • 2.4GHz band: 574Mbps
  • 5GHz-1 band: 4804Mbps, 5GHz-2 band: 4804Mbps (using country code)
port
  • 1 10/100/1000 / 2500m RJ45 port
  • 1 DC port
Indicator light
  • 1 system indicator
Button
  • 1 reset button
  • 1 FAT / FIT mode Dial switch
Power supply
  • 802.3bt/at standard PoE power supply
  • 12V/4A DC power supply (power adapter not delivered)
Maximum machine power consumption
  • 39.2W
management
  • FIT AP mode: Unified Management
  • FAT AP Mode: Independent Web Page Management
  • TP-LINK Commercial Network Cloud Platform centralized management
Use environment
  • operating temperature: 0°C ~ 40°C
  • Working humidity: 10% ~ 90% RH does not condense
  • storage temperature: -40°C ~ 70°C
  • Storage humidity: 5% ~ 90% RH does not condense
wireless function
  • SSID broadcast: Support
  • SSID quantity: 8 (2.4GHz) +8 (5GHz), support Chinese SSID
  • network type: Visitor network, employee network < / li>
  • Wireless encryption: WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK
  • User Isolation: Wi-Fi interval, AP internal isolation
  • wireless MAC address Filtering: Support White List (100)
  • VLAN settings: Support SSID and TAG VLAN Bind
  • Transmission power setting: Support 1DBM linear adjustment
  • wireless client Quantitative limit: Support
  • QoS: WMM
  • WDS: Support
  • kicking weak signal equipment, no weak signal access: support
  • < / ul>
Maximum number of connectable clients
  • 128(2.4GHz)+512(5GHz-1)+512(5GHz-2)
System Management
  • device management: full Chinese Web Management
  • restore factory setting: Support
  • backup configuration: support
  • Import configuration: Support
  • software upgrade: support
  • ping watchdog: Support
