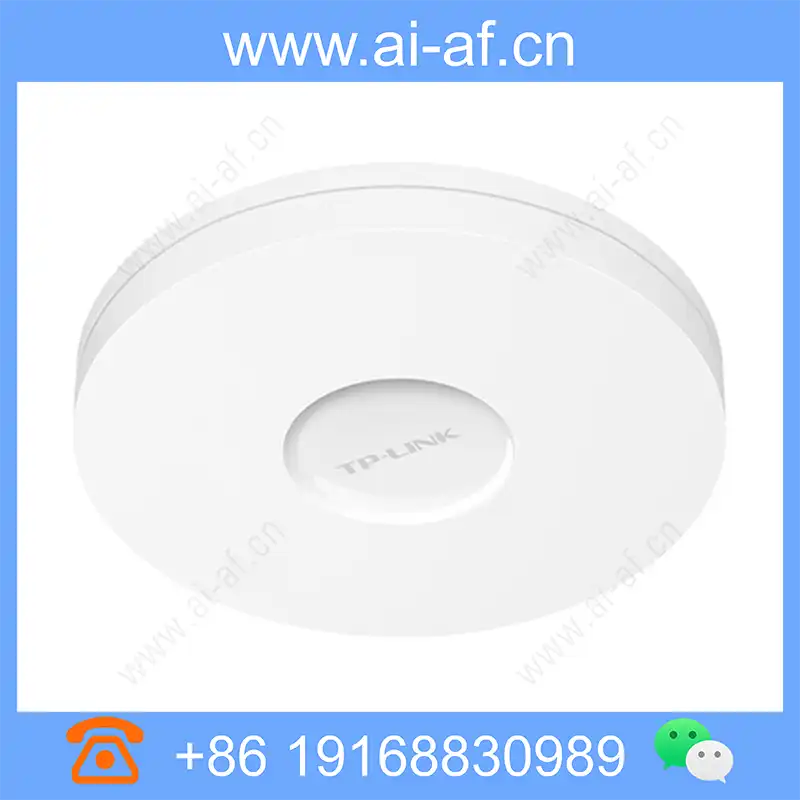

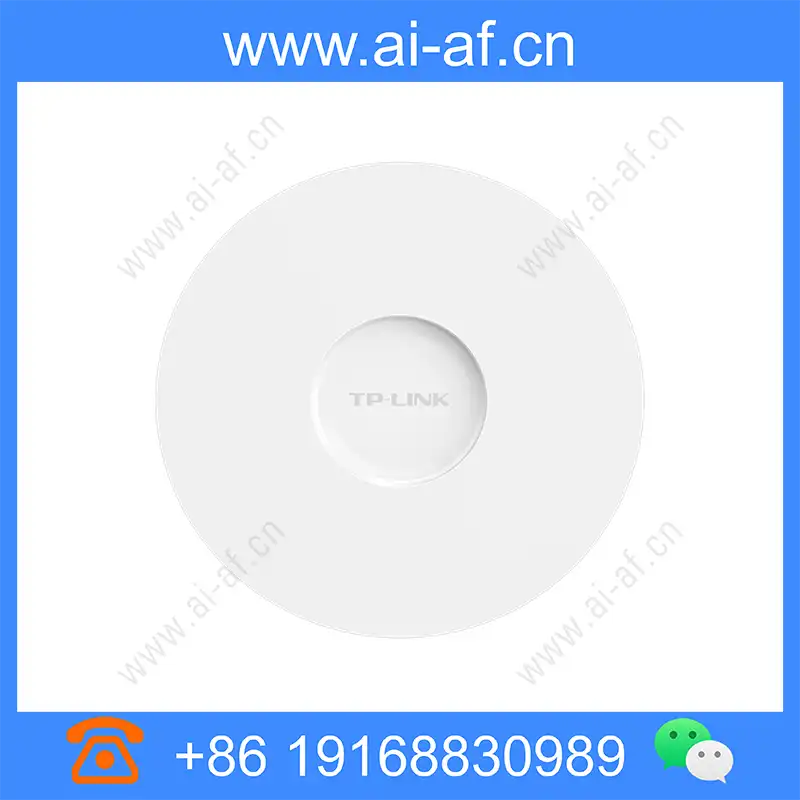

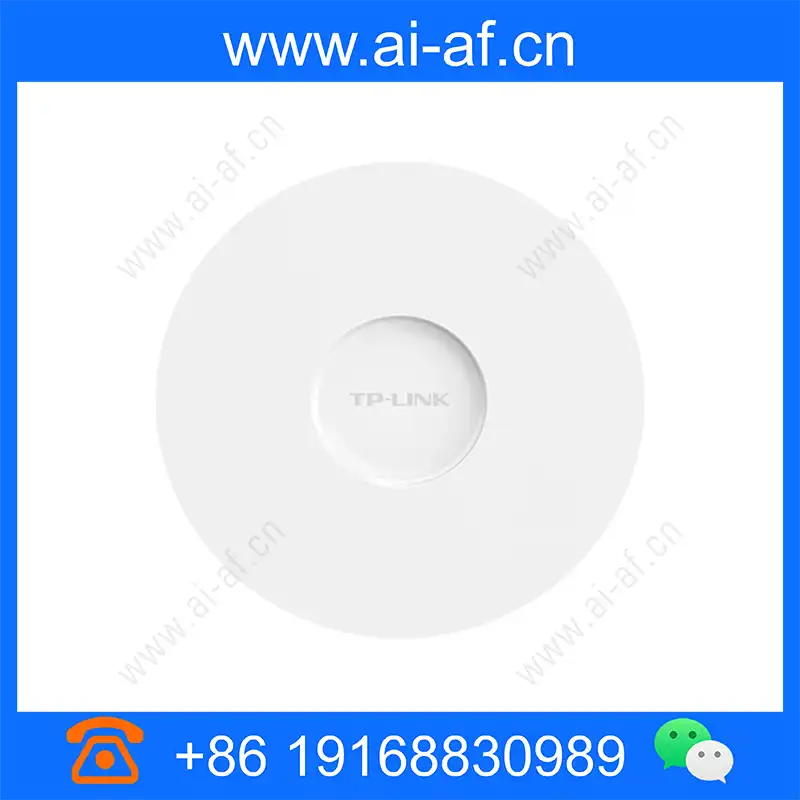

TP-LINK TL-XAP1807GC-PoE/DC AX1800 Dual Band Gigabit Wi-Fi 6 Wireless Ceiling AP

Brand: TP-LINK
Model: TL-XAP1807GC-PoE_DC
Weight: 0.52kg
Dimensions: 306mm x 304mm x 85mm

Next-generation Wi-Fi 6 (802.11ax) technology 11AX dual-frequency concurrent, the highest wireless rate is up to 1775MBPS The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, 802.3at standard PoE network cable power supply The port is hidden in the shell, and the wiring is beautiful Fat and thin, choose different working modes in different environments Independent hardware protection circuit can automatically recover abnormal AP FIT mode

Product Features

  • Next-generation Wi-Fi 6 (802.11ax) technology
  • 11AX dual-frequency concurrent, the highest wireless rate is up to 1775MBPS
  • The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs
  • Professional dual-band antenna to improve the signal quality of the coverage area
  • Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance
  • Simple ceiling installation, 802.3at standard PoE network cable power supply
  • The port is hidden in the shell, and the wiring is beautiful
  • Fat and thin, choose different working modes in different environments
  • Independent hardware protection circuit can automatically recover abnormal AP
  • FIT mode supports radio frequency automatic tuning function
  • FIT mode supports intelligent roaming technology
  • Support centralized management of TP-LINK commercial network cloud platform
  • Support TP-LINK business cloud APP remote view / management

Technical Specifications

Property DescriptionProperty Value
model
  • TL-XAP1807GC-PoE/DC
name
  • AX1800 dual-band Gigabit Wi-Fi 6 wireless ceiling AP
Bare metal size (length x width x height)
  • φ243 x 64mm (free of mounting)
Packing size (length x width x height)
  • 306x304x85mm
Bare metal weight
  • 0.52kg (single, excluding accessories, packaging)
Total weight
  • 0.94kg (single, including accessories, packaging)

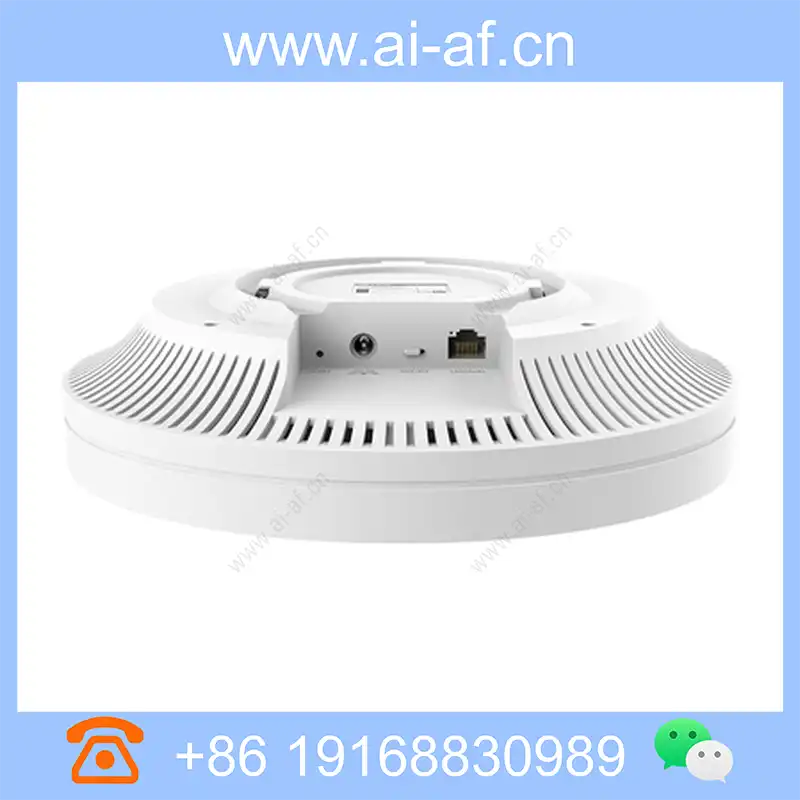

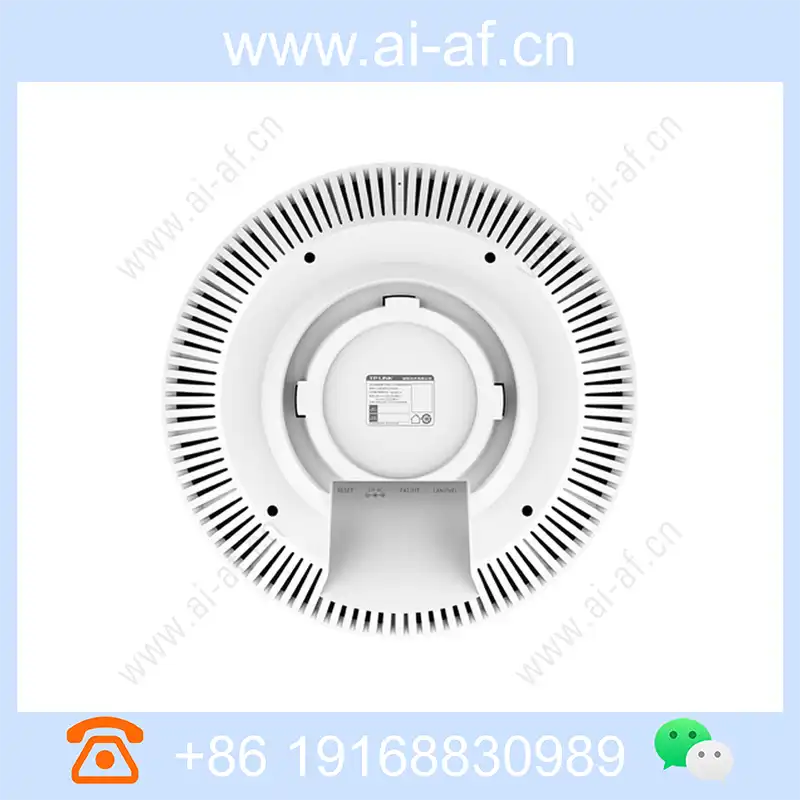

interface
  • 1 10/100/1000Mbps rate adaptive Ethernet interface
  • 1 DC power interface
Indicator light
  • 1 system indicator
Button
  • 1 reset button
  • 1 FAT / FIT mode dial switch
power supply
  • IEEE 802.3AT standard PoE Power Supply
  • DC power supply: 12V
Maximum power consumption
  • PoE power supply maximum power consumption 14.5W
  • DC power supply maximum power consumption 13.0W
Operating temperature
  • 0°C~40°C
Working humidity
  • 10% ~ 90% RH does not condense
storage temperature
  • -40°C~70°C
Storage humidity
  • 5% ~ 90% RH does not condense
Antenna type
  • Built-in full-Directions
Installation method
  • Ceiling installation
  • Wall-mounted
wireless function
  • IEEE 802.11a / n / ac / AX, IEEE 802.11b/g/n / AX Wireless Protocol
  • maximum wireless rate 1775Mbps: 2.4GHz frequency band 574Mbps, 5GHz band 1201Mbps
  • Beamforming
  • 2 x 2 MU-MIMO
  • Maximum merger (MRC)
  • empty group code (STBC) < / li>
  • Cycle delay / cyclic shift diversity (CDD / CSD)
  • LDPC low density parity
  • maximum likelihood decoding (MLD)
  • wireless speed speed parameters (shortgi)
  • SSID broadcast / hide
  • SSID quantity: 2.4g: 8; 5g: 8
  • Chinese SSID, including GB2312 UTF-8 encoding
  • Set the master network, the employee network
  • channel bandwidth setting. 2.4G: 20M / 40MHz / Automatic; 5G: 20M / 40M / 80MHz / Auto
  • Dynamic Channel Selection (DCS)
  • Wi-Fi Multi-Frequency One
  • FIT mode spectrum navigation
  • Transmission power setting: LV1-LV10, 1DBM step length
  • wireless network interval, AP internal isolation
  • Beacon time slot setting
  • Weak signal equipment eliminates
  • weak signal equipment prohibits access
  • IEEE 802.11k/v protocol Intelligent roaming
  • automatic frequency adjustment
  • WMM: Based on priority data processing and forwarding
  • WDS function
  • wireless client number limit
  • OFDMA
  • TWT
Network characteristics
  • Rate and duplex mode self-negotiation, automatic MDI / MDI-x
  • Fit mode CAPWAP interrupt service Hold
  • Fit mode AC Double Link Backup < / li>
  • LLDP link discovers
  • VLAN
  • management VLAN
  • management VLAN
  • based on user access >
  • Intelligent DHCP Server
  • FAT mode DHCPv6, IPv6 address access, RADIUSV6 authentication and other functions
  • Fit mode CAPWAPV6, WPORTALV6 authentication, DHCPV6 protection
cyber security
  • Fit mode Portal authentication, MAC address authentication
  • WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3 encryption
  • White list management Access device < / li>
  • SSID and TAG VLAN Bind
  • Fit mode broadcast storm suppression
  • Fit mode DHCP protection
  • Fit mode ARP protection
Management method
  • FIT Mode Wireless Controller (AC) Unified Management
  • FAT Mode Independent Web Page Management
  • NMS Commercial Cloud Platform Concentration Management
  • TP -Link network management system centralized management
System Management
  • User Name / Password Management
  • System Log View / Download / Send Server
  • Manual Settings / NTP Server Synchronization Time
  • Backup Configuration < / li>
  • Import configuration
  • Restore factory settings
  • restart device
  • local online upgrade, local firmware upgrade, cloud upgrade
  • PING Watch Dog Function, Exception Equipment Automatic Recovery
  • First Aid mode, exception device enters the first aid page upgrade firmware
