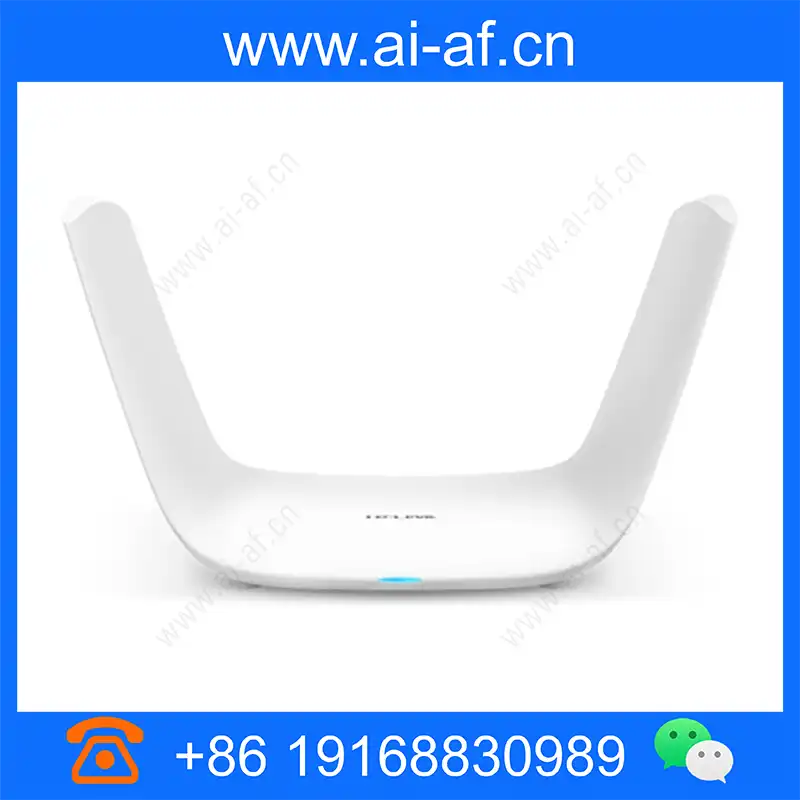

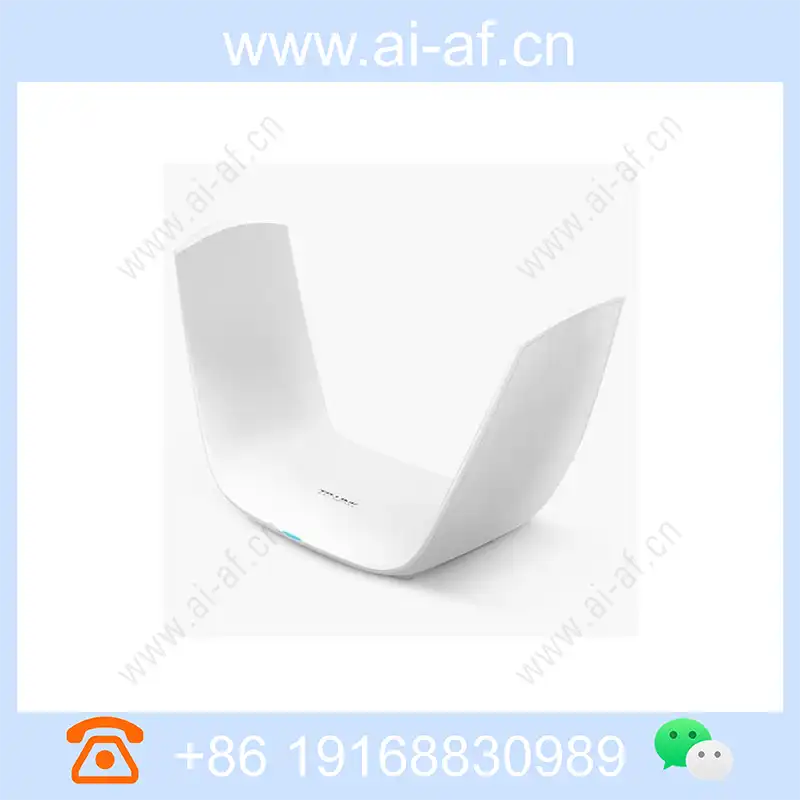

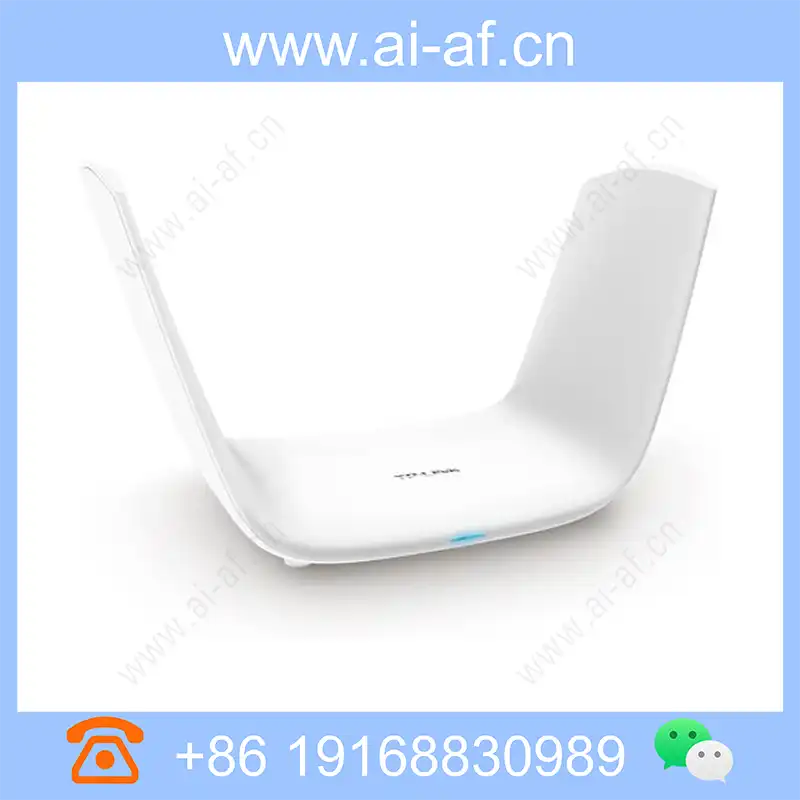

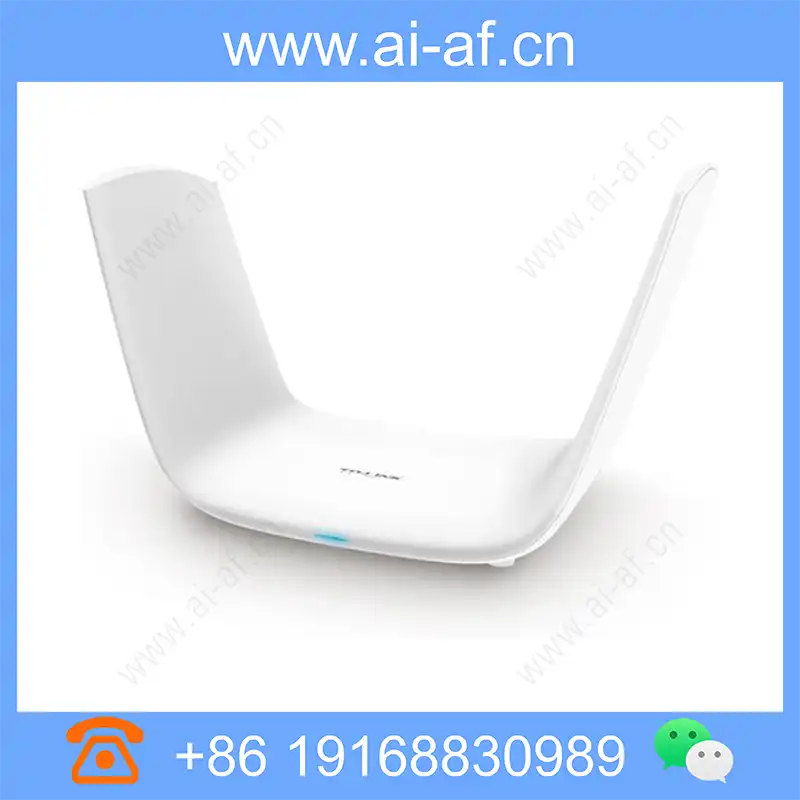

TP-LINK TL-WDR8600 AC2600 Dual Band Wing Array Antenna Gigabit Wireless Router
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 800Mbps 5GHz band: 1733Mbps interface 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX); 1 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX); 2 USB 3.0 ports Button Reset button LED SYS system indication Link/Act indication of each port USB status indication antenna Built-in 8 high-gain omni-Directional antennas network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP and MAC
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 800Mbps 5GHz band: 1733Mbps |
| interface | 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX); 1 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX); 2 USB 3.0 ports |
| Button | Reset button |
| LED | SYS system indication Link/Act indication of each port USB status indication |
| antenna | Built-in 8 high-gain omni-Directional antennas |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | AC2600 Dual Frequency Gigabit Wireless Router TL-WDR8600 Power Adapter Quick Installation Guide Warranty Card Toxic Substance Description Card Device Parameter Record Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
