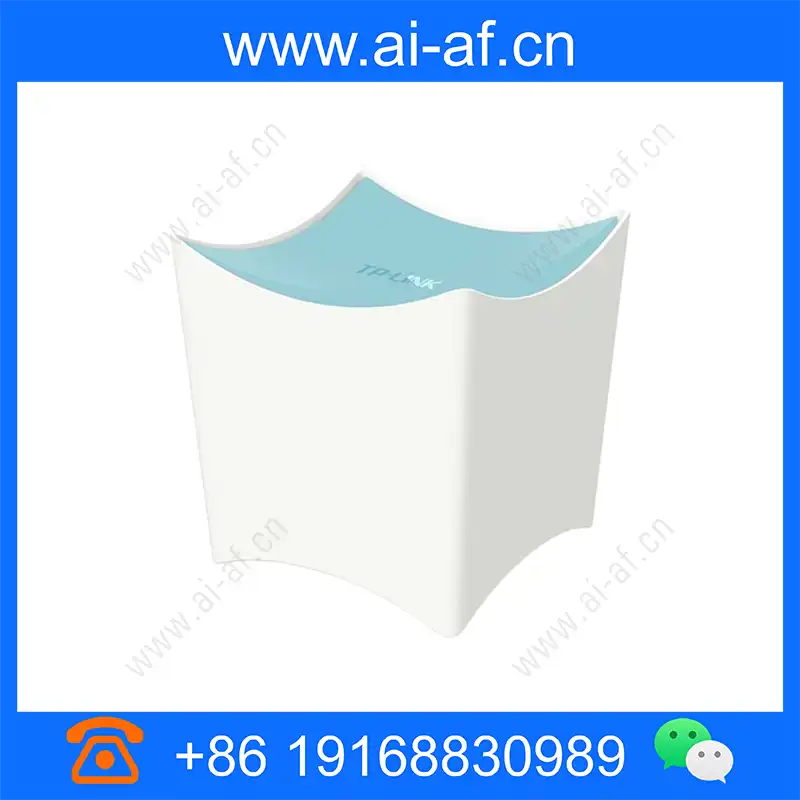

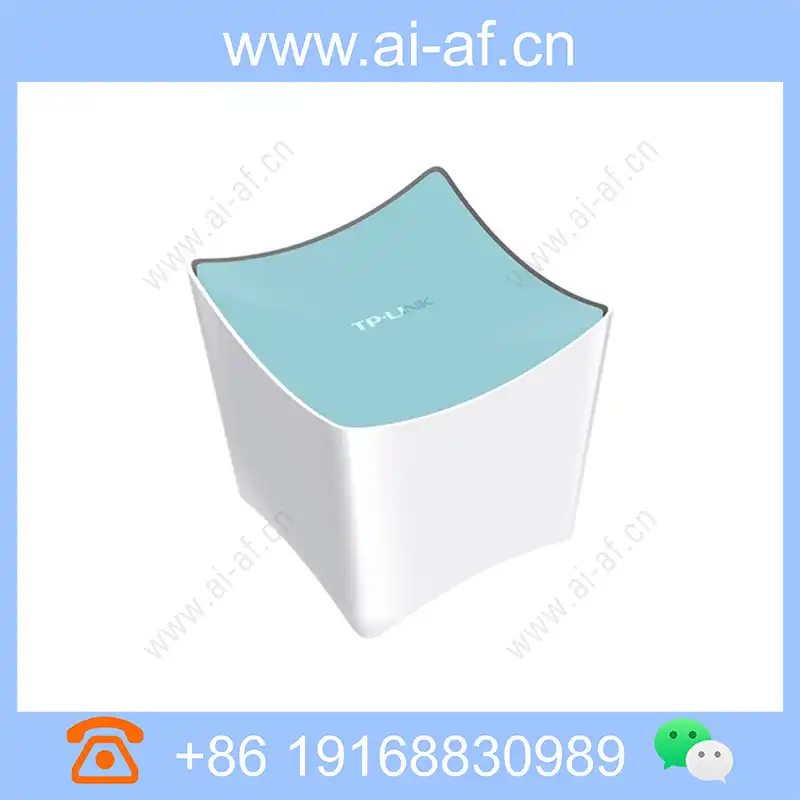

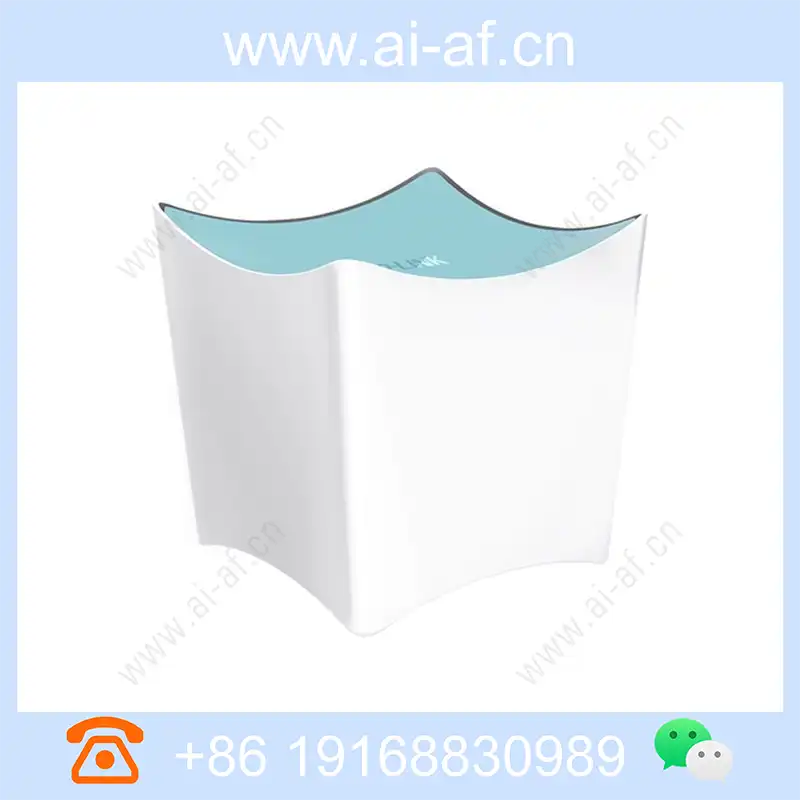

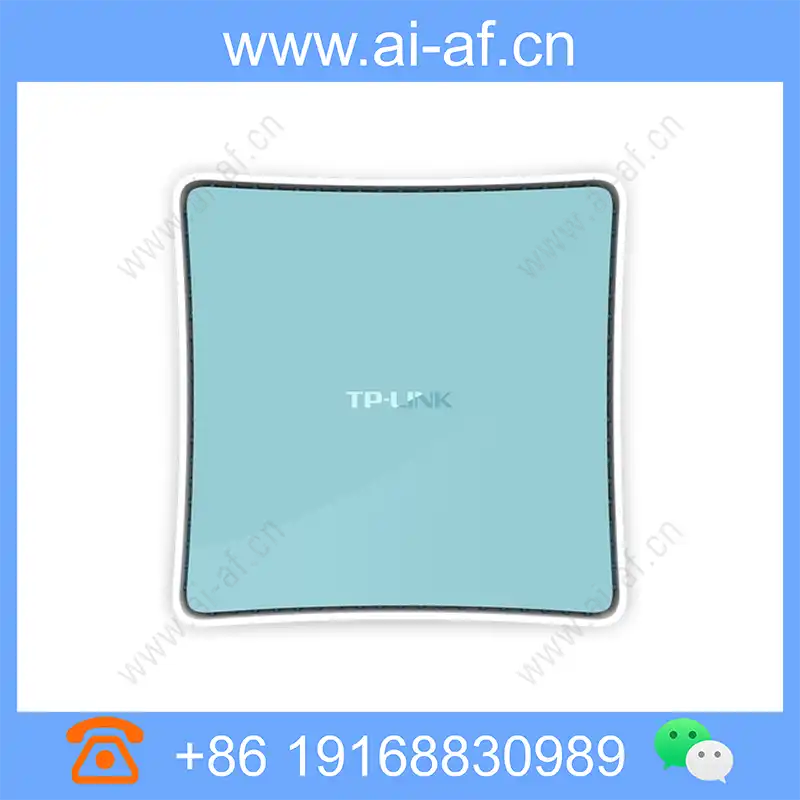

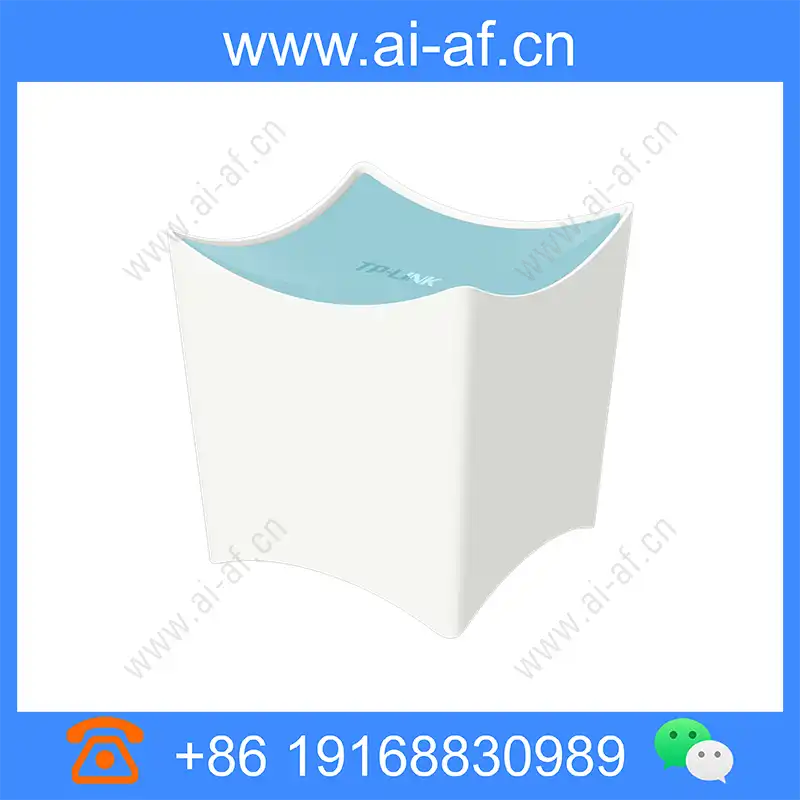

TP-LINK TL-WDR7340 AC2100 Dual Band Square Array Antenna Wireless Router
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u Wireless rate 2.4GHz band: 300Mbps 5GHz band: 1733Mbps interface Three 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) Button Reset button LED SYS system indication Link/Act indication for each port antenna Built-in 2.4GHz omniDirectional antenna Built-in 5GHz omniDirectional antenna size 157mm*157mm*149mm network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP and MAC
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u |
| Wireless rate | 2.4GHz band: 300Mbps 5GHz band: 1733Mbps |
| interface | Three 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | SYS system indication Link/Act indication for each port |
| antenna | Built-in 2.4GHz omniDirectional antenna Built-in 5GHz omniDirectional antenna |
| size | 157mm*157mm*149mm |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control Wireless timing switch Automatic cleaning |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | AC2100 Dual Frequency Square Array Antenna · Wireless Router TL-WDR7340 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
