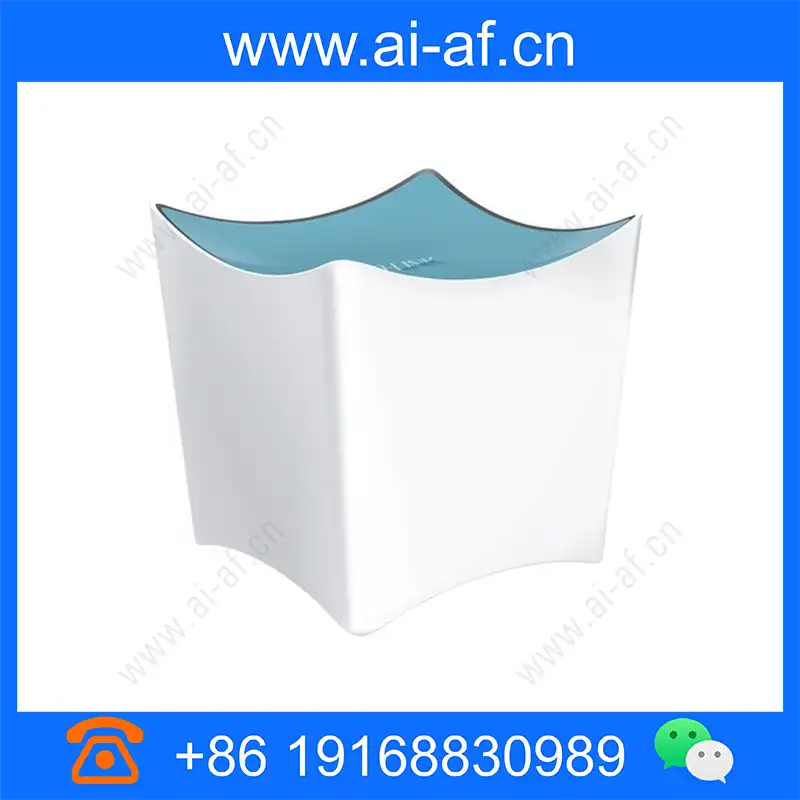

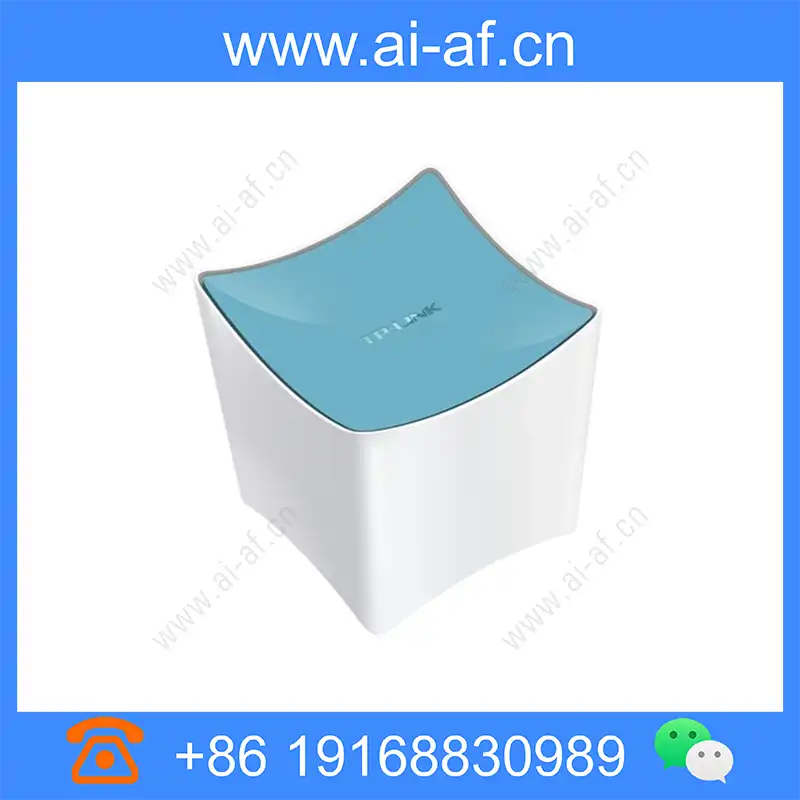

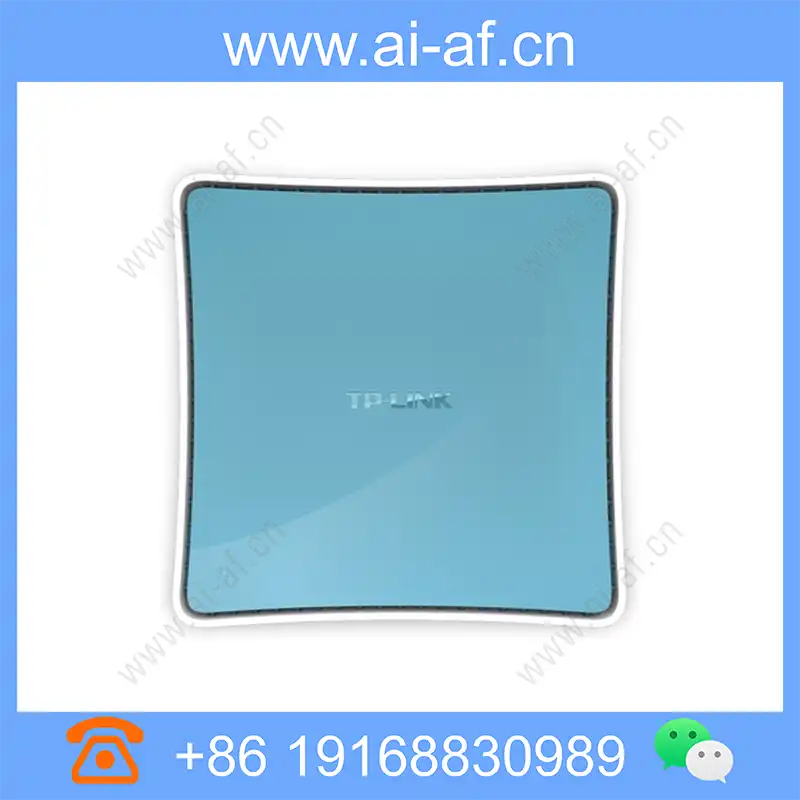

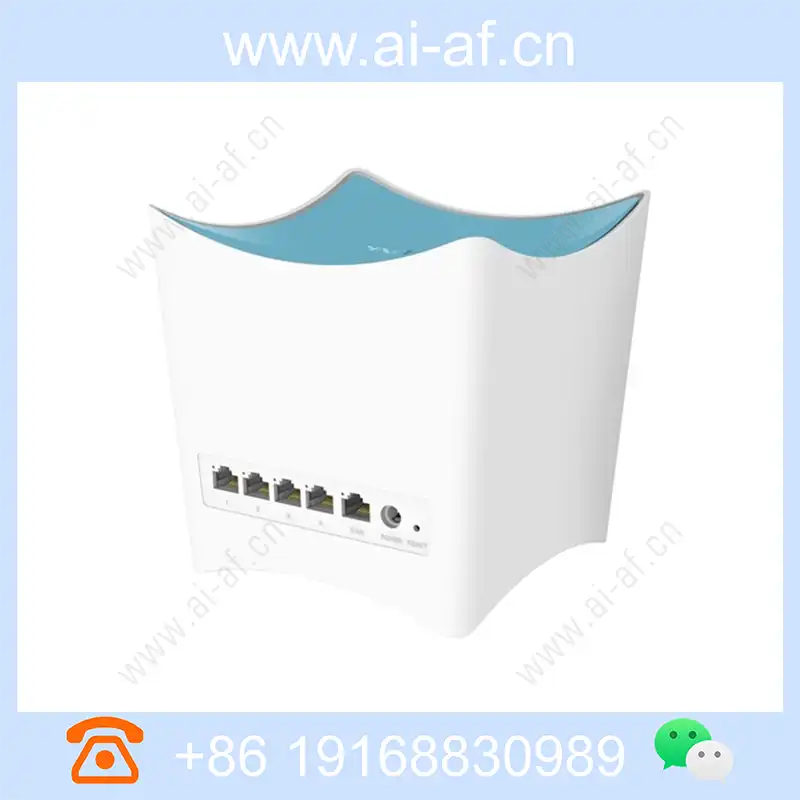

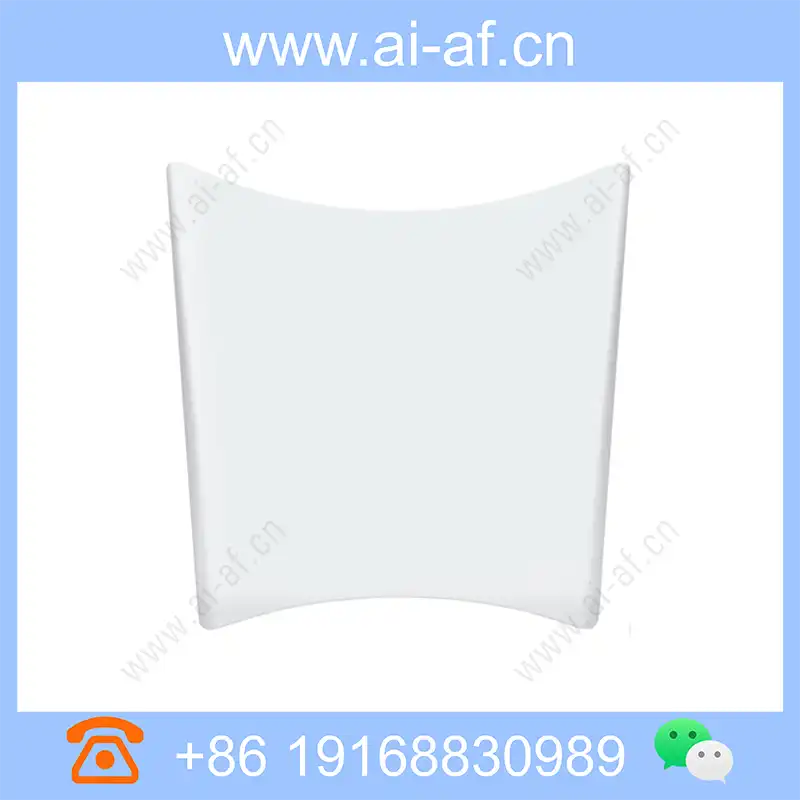

TP-LINK TL-WDR5640 Shiqing AC1200 Dual Band Square Array Antenna Wireless Router
Protocol standard IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u Wireless rate 2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps interface 4 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) Button Reset button LED System instructions antenna Built-in four single-frequency antennas size 145*145*146 Equipment management Device information Real-time network speed Speed limit Disable device wireless function Wireless bridging Guest network Signal strength adjustment AP isolation other functions Parental Control Behavior Management Packaging accessories AC1200 Dual Band Wireless Router TL-WDR5640 Power Adapter User Manual Warranty Card Use environment Operating temperature:
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u |
| Wireless rate | 2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps |
| interface | 4 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | System instructions |
| antenna | Built-in four single-frequency antennas |
| size | 145*145*146 |
| Equipment management | Device information Real-time network speed Speed limit Disable device |
| wireless function | Wireless bridging Guest network Signal strength adjustment AP isolation |
| other functions | Parental Control Behavior Management |
| Packaging accessories | AC1200 Dual Band Wireless Router TL-WDR5640 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
