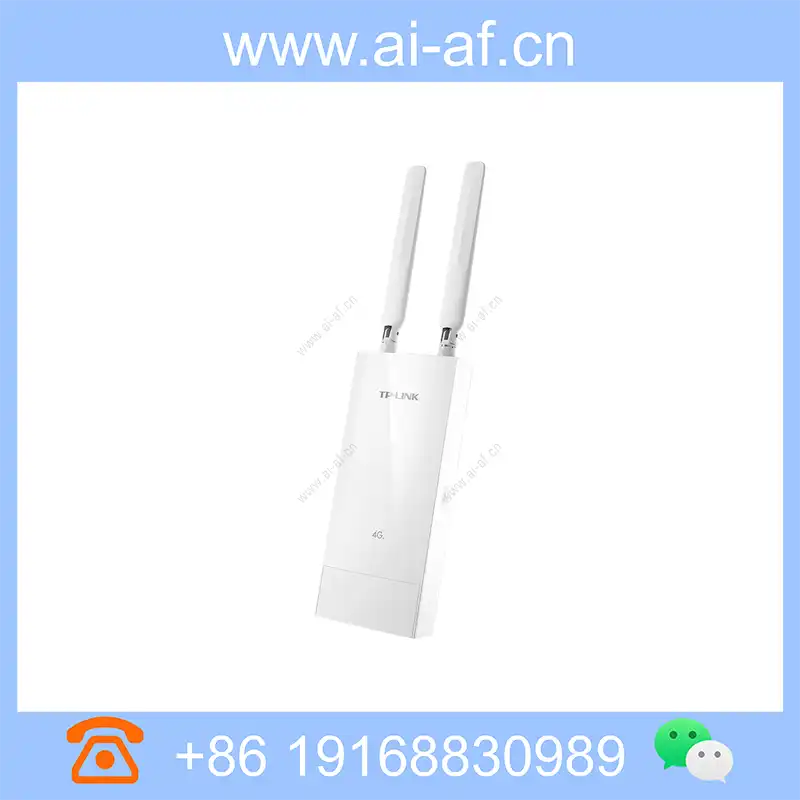

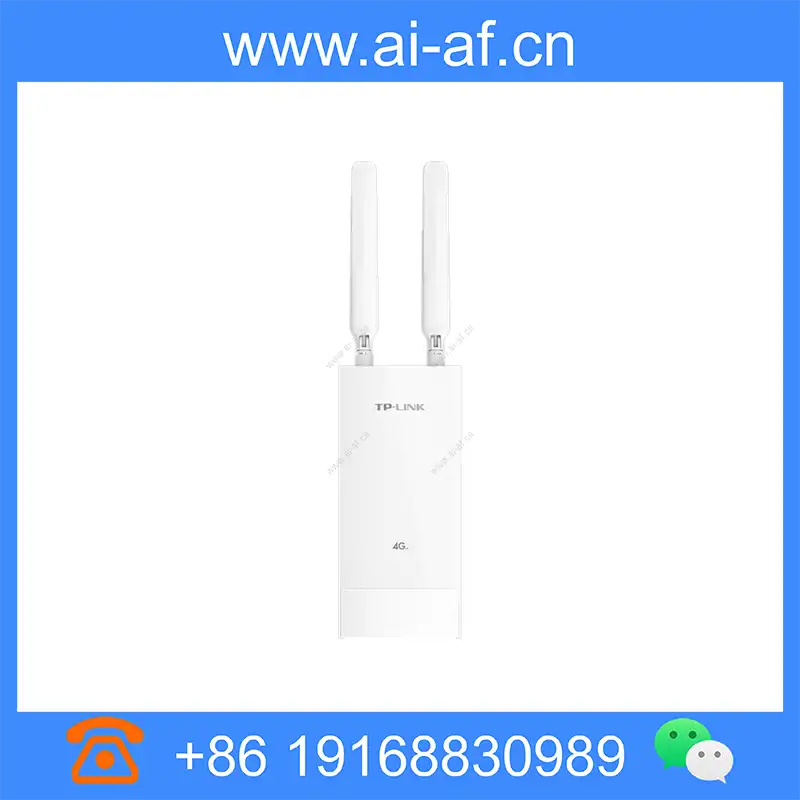

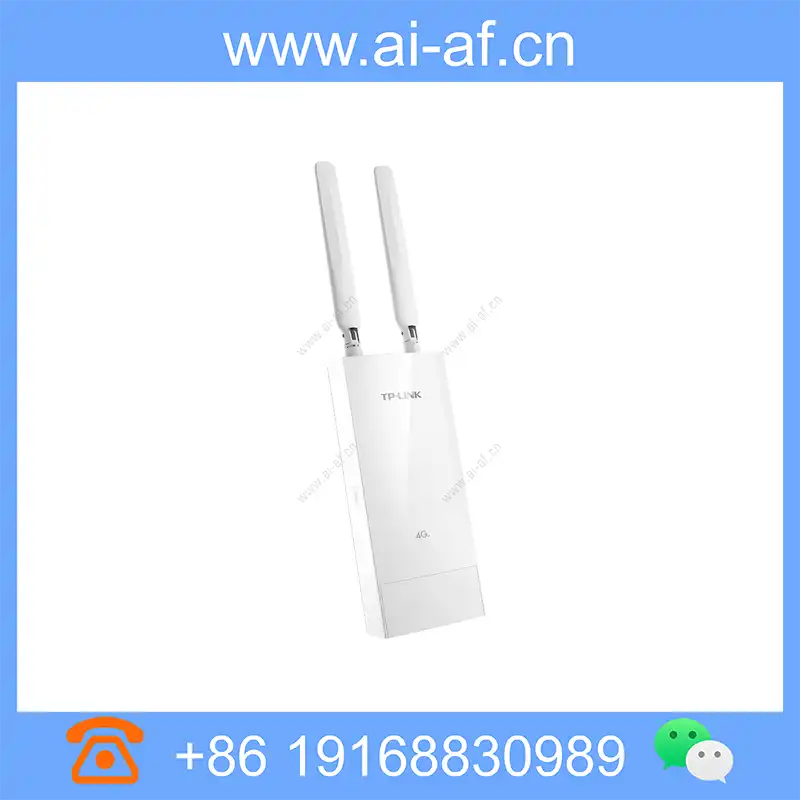

TP-LINK TL-TR903 Outdoor Waterproof 4G Router Monitoring Outdoor Engineering Applicable SupPort 4G All Netcom
Support 4G full Netcom, automatic network connection by card, monitoring anytime and anywhere Dual 300M antenna, stronger Wi-Fi signal Support IP65 dustproof and waterproof, cope with various weather conditions Built-in three 100M ports, double the number of IPC access External LTE dual antenna, 4G signal is stronger Network Type 4G:LTE-TDD,LTE-FDD 3G:WCDMA 2G:GSM Frequency Range LTE-TDD BAND 34/38/39/40/41 LTE-FDD BAND 1/3/5/8 UTMS(WCDMA) BAND 1/5/8 GSM 900/1800MHz 4G/3G transmission rate LTE-FDD: uplink 51.02Mbps/downlink 150.75 Mbps LTE-TDD: uplink 30.61Mbps/downlink 131.61 Mbps Interface Type 1 DC9V power input interface 3 10/100M adaptive RJ45 ports 1 Nano-sim card slot power supply DC power supply 9V/0.85A Button Reset button antenna External dual LTE 4G antenna Indicator light 1
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Network Type | 4G:LTE-TDD,LTE-FDD 3G:WCDMA 2G:GSM |
| Frequency Range | LTE-TDD BAND 34/38/39/40/41 LTE-FDD BAND 1/3/5/8 UTMS(WCDMA) BAND 1/5/8 GSM 900/1800MHz |
| 4G/3G transmission rate | LTE-FDD: uplink 51.02Mbps/downlink 150.75 Mbps LTE-TDD: uplink 30.61Mbps/downlink 131.61 Mbps |
| Interface Type | 1 DC9V power input interface 3 10/100M adaptive RJ45 ports 1 Nano-sim card slot |
| power supply | DC power supply 9V/0.85A |
| Button | Reset button |
| antenna | External dual LTE 4G antenna |
| Indicator light | 1 system indicator |
| size | 209mm*95mm*42.6mm |

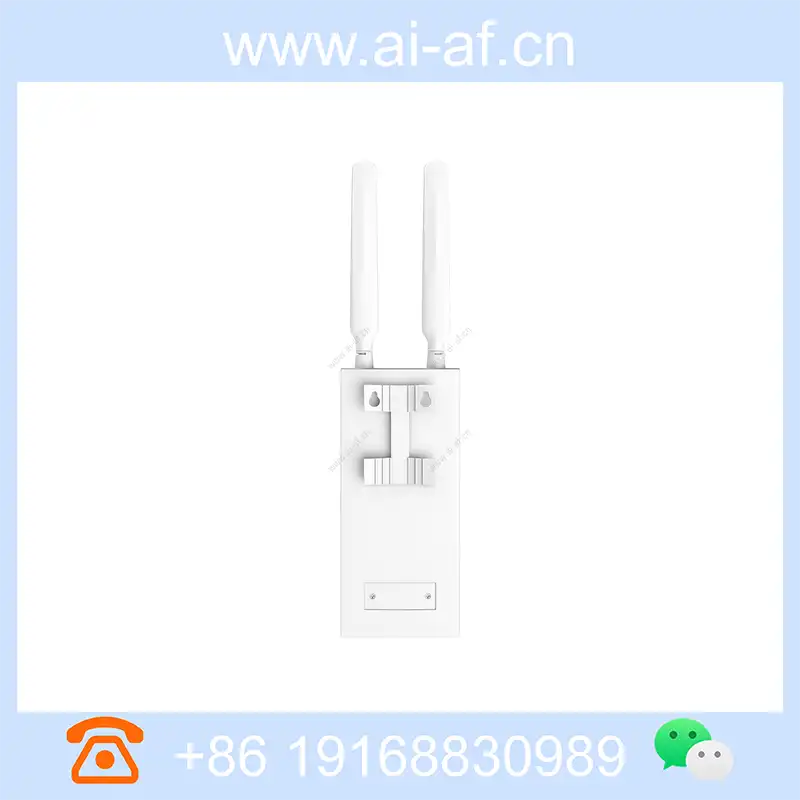

| Installation method | Wall-mounted installation |
| Use environment | Operating temperature: -30°C~60°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Dustproof and waterproof grade | IP65 |
| packing list | Outdoor waterproof 4G wireless router: 1 set of screw hole positioning stickers: 1 piece of plastic expansion tube / self-tapping screw: 2 each of stainless steel cable ties: 1 quick installation guide: 1 power adapter: 1 |
