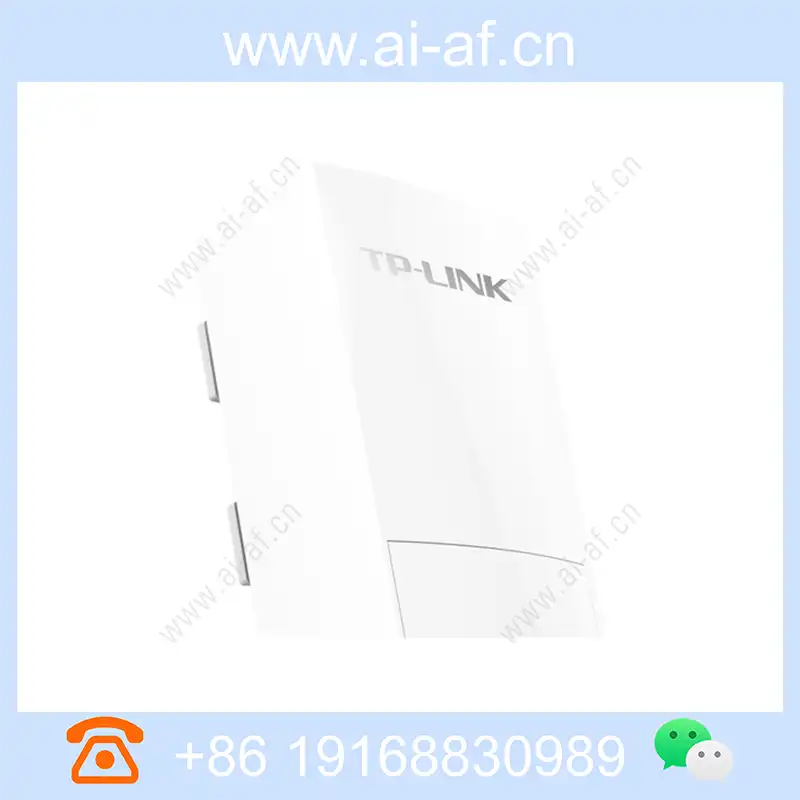

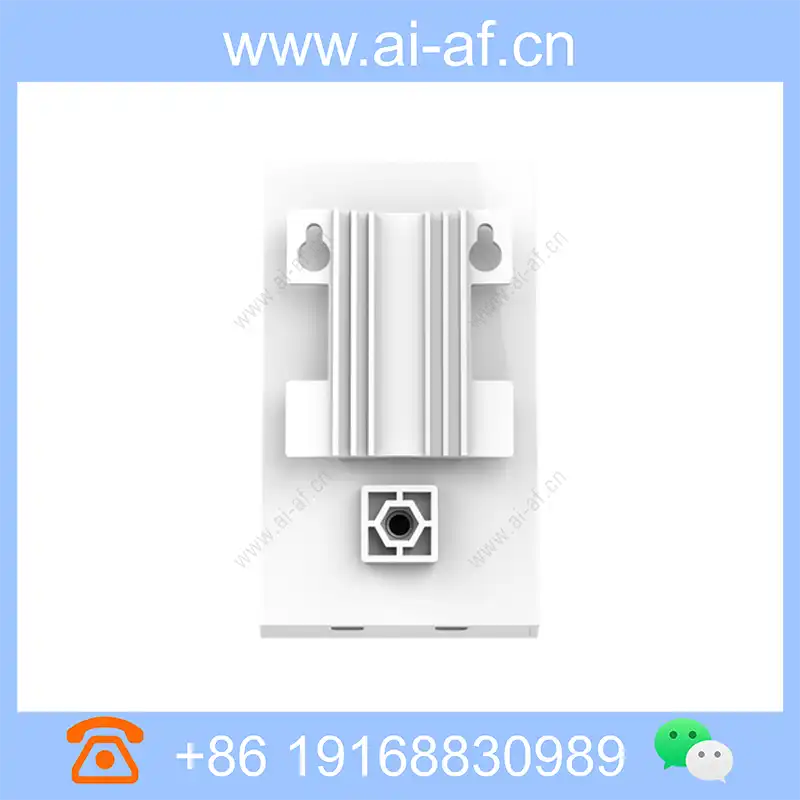

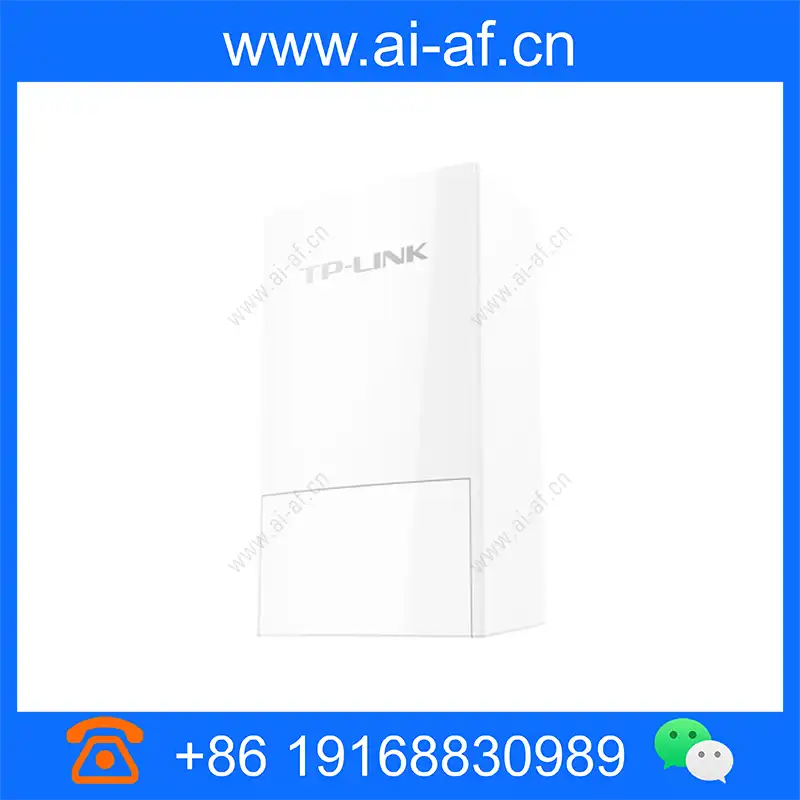

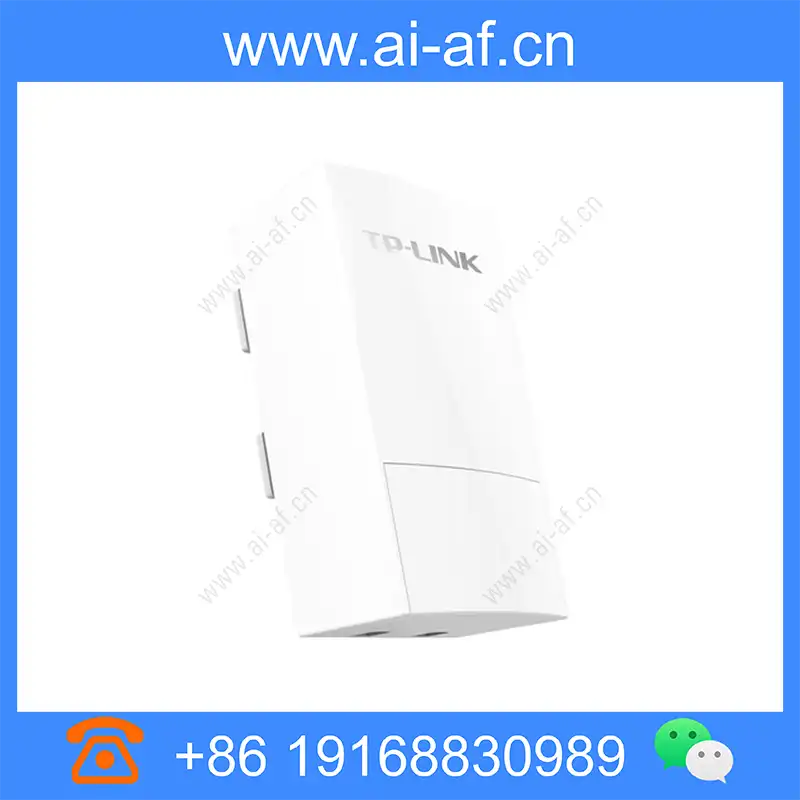

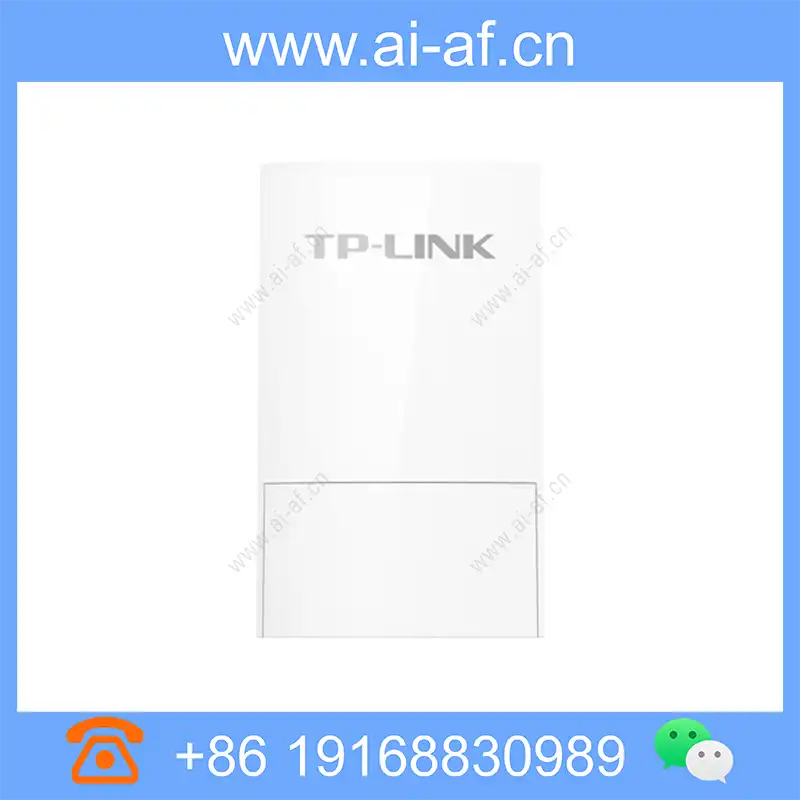

TP-LINK TL-SPD10-10KV network port lightning protection device 1 Gigabit IN port 1 Gigabit OUT port 1 grounding column
Brand: TP-LINK
Model: TL-SPD10-10KV
Dimensions: 119.30mm x 71.50mm x 41.60mm
Professional lightning protection design, it can provide common mode 10kV and differential mode 10kV lightning protection for the Ethernet interface to ensure the safe use of outdoor network equipment Support pole and wall mounting port 2 10/100/1000M RJ45 ports Lightning protection level Common mode: 10kV Differential mode: 10kV ESD protection level Contact discharge: 8kV Air discharge: 10kV Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing size 119.3*71.5*41.6mm
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 2 10/100/1000M RJ45 ports |
| Lightning protection level | Common mode: 10kV Differential mode: 10kV |
| ESD protection level | Contact discharge: 8kV Air discharge: 10kV |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| size | 119.3*71.5*41.6mm |
