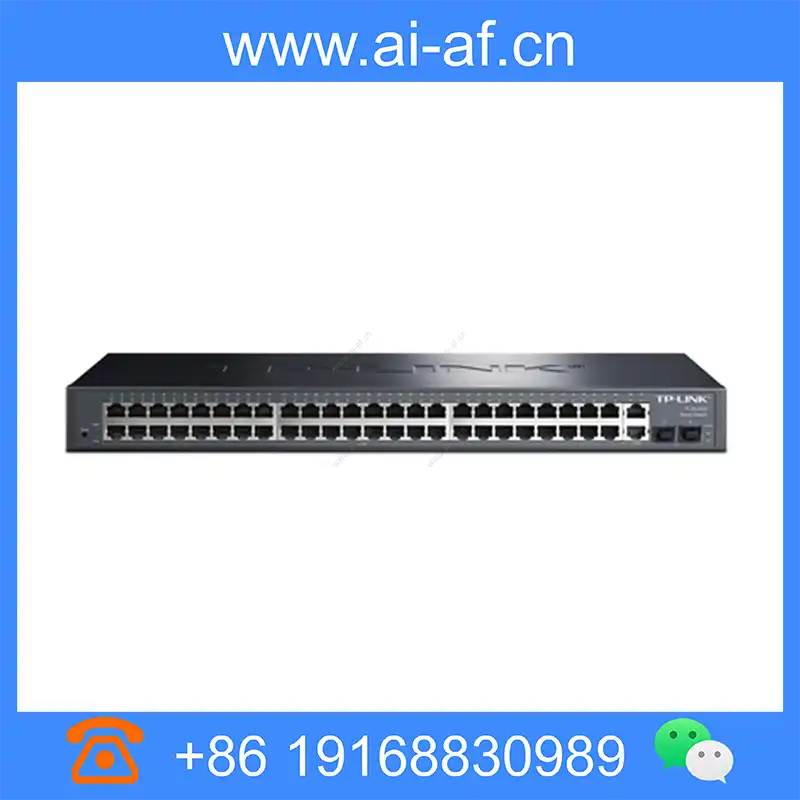

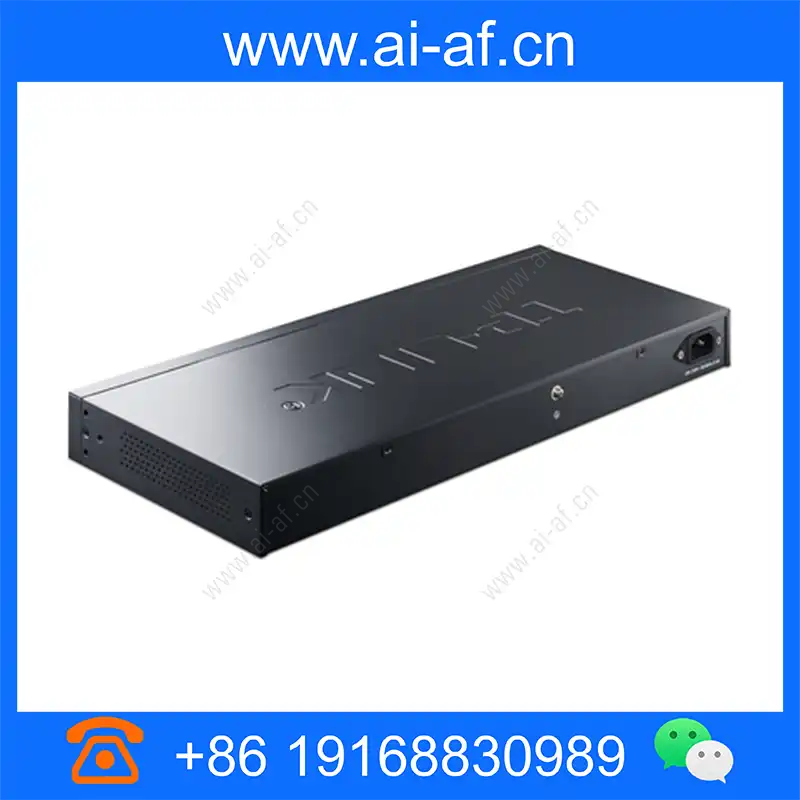

TP-LINK TL-SL2452 48 100M Ports + 4 Ports Gigabit Uplink Simple Network Management Switch

• 48 10/100M adaptive RJ45 ports, 2 10/100/1000M adaptive RJ45 ports and 2 independent Gigabit SFP (mini GBIC) fiber module expansion slots, flexible expansion
• Support port mirroring, port speed limit, port aggregation, port isolation, loop monitoring and other rich port management functions
• Support standard IEEE802.1Q Tag VLAN
• Support multiple security strategies such as port security, broadcast storm suppression, ACL, etc.
• Support multi-service capabilities such as IGMP Snooping and QoS
• Support management based on Web and SNMP, provide maintenance methods such as network diagnosis and system diagnosis

[TL-SL2452 has been discontinued, TL-SL3452-Combo can be used as its replacement product. 】

TL-SL2452 is a Gigabit uplink simple network management switch product developed by TP-LINK. It provides a rich and reasonable port layout and is convenient and flexible to expand. The switch supports port aggregation, Tag VLAN, ACL, QoS and other functions to meet the network environment that requires high performance and intelligent management, and is suitable for small and medium enterprise users to build a cost-effective network.

high performance

Provide a rich and reasonable port layout, support wire-speed forwarding of all ports; support port aggregation (trunk) to meet the requirements for high bandwidth and high reliability; support traditional STP/RSTP/MSTP layer two link protection technology, greatly improving The fault-tolerant and redundant backup capabilities of the link ensure the stable operation of the network, support the spanning tree security function, and prevent the devices in the spanning tree network from suffering various forms of malicious attacks.

Flexible scalability

Provides two 10/100/1000M RJ45 to meet the seamless transition to Gigabit network. At the same time, it provides two Gigabit SFP (mini GBIC) fiber module expansion slots, which can be easily connected to the fiber backbone network by using SFP fiber modules. , Greatly expanding the scope of equipment, saving user investment.

safety

Supports standard IEEE 802.1Q Tag VLAN to meet the needs of dividing and managing network resources, enhancing network security and adapting to multi-service applications; supporting port security functions, which can limit the number of MAC addresses learned by the port and solve illegal access Problem: Support broadcast storm suppression to improve network performance; powerful hardware ACL capabilities, support L2~L4 data shunting, and issue ACLs based on ports and VLANs to achieve forwarding control of specific data packets.

Multi-service capabilities

Support port-based, IEEE 802.1p and DSCP priority; support SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR queue scheduling algorithm, each port supports 4 output queues, can report with different priorities The text is put into the output queue of the port to meet the requirements of different services on the basic network, and supports two-way speed limit on the port; supports IGMP V1/V2/V3, and through IGMP Snooping technology, it can solve the multicast application problems, such as IPTV, video Meetings and so on.

Flexible management and easy maintenance

Supports system management and upgrades through the full Chinese Web interface, which is convenient and intuitive; supports SNMP, which can monitor network performance, detect and analyze network errors, etc.

Supports functions such as VCT (cable detection), loopback detection, Ping, Tracert, etc., which can quickly detect the connection of network equipment and locate network failure points.

Supports identity filtering and detection technology, provides multi-level user management and management limit functions, and enhances configuration security.
