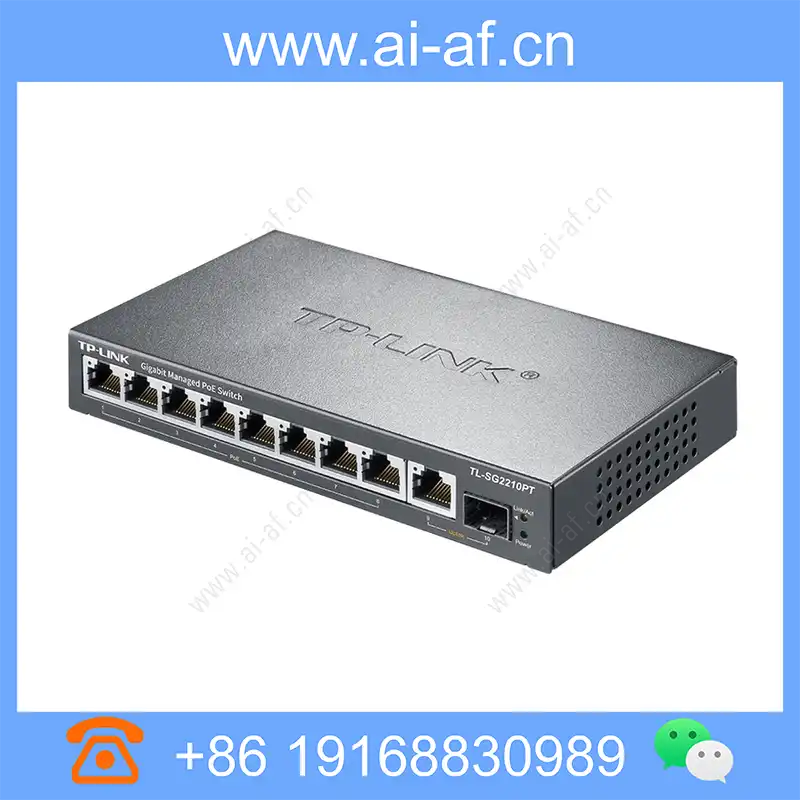

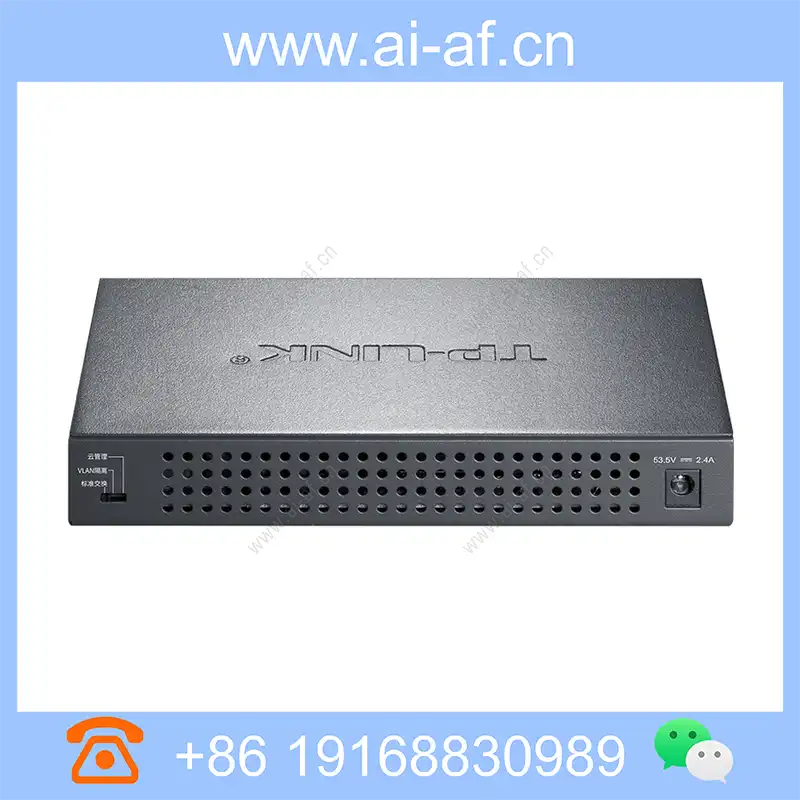

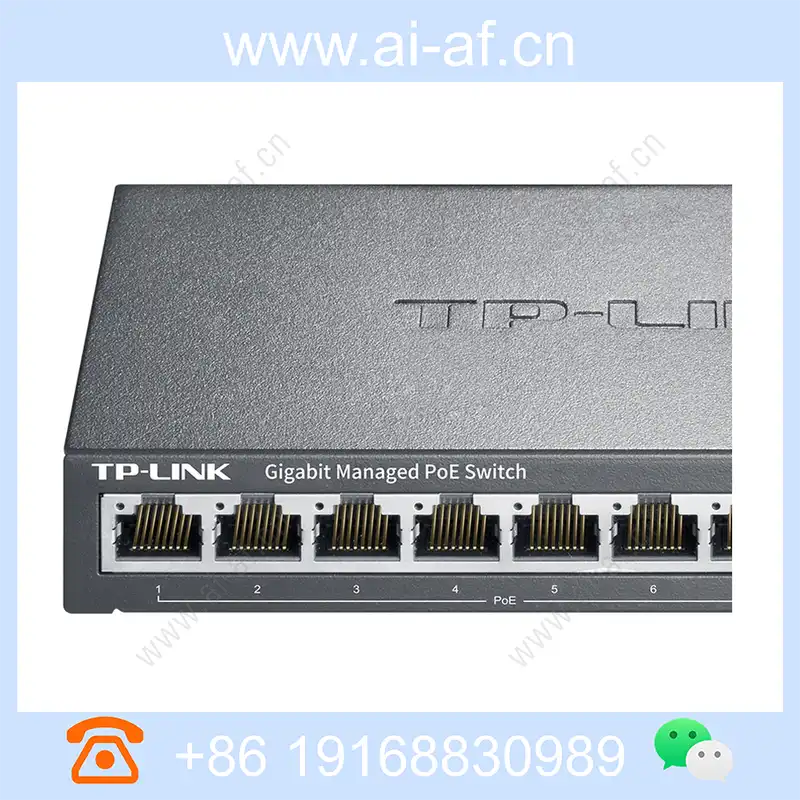

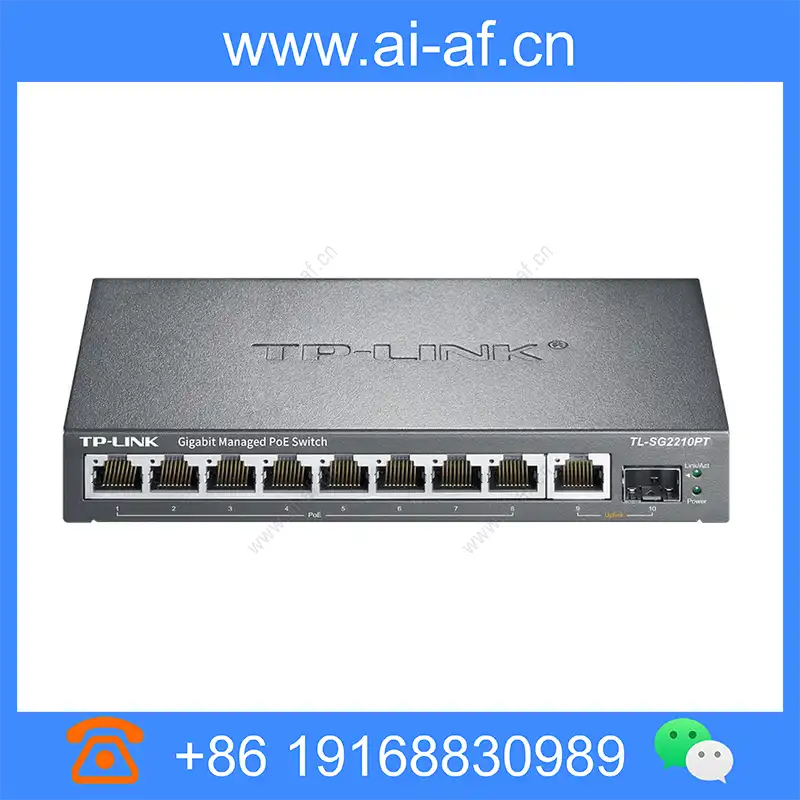

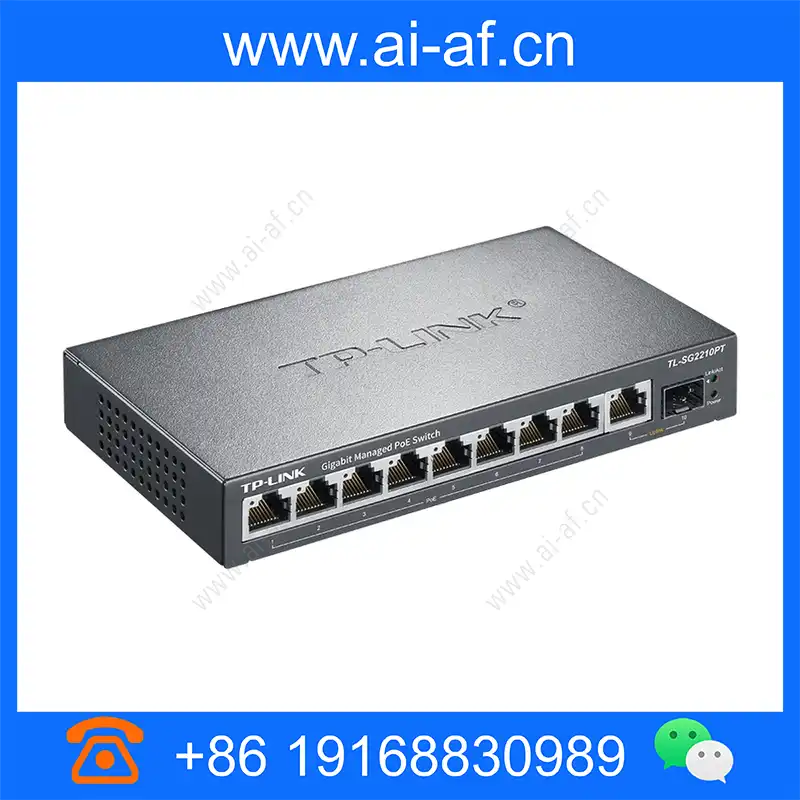

TP-LINK TL-SG2210PT Full Gigabit Cloud Managed PoE Switch

Brand: TP-LINK

Model: TL-SG2210PT

9 10/100/1000BASE-T RJ45 port, 1 Gigabit SFP optical port 1 to 8th MP RJ45 port support IEEE 802.3af/at standard PoE power supply The maximum power supply power of the whole machine is 120W, the maximum POE power supply power of single port is 30W Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection Support cloud management, VLAN isolation, standard exchange three working modes * This model is only 3.0 and above supports cloud management functions Product model TL-SG2210PT TL-SG2210PE TL-SG2210P TL-SG2005P Gigabit RJ45 port 9 9 9 5 Gigabit SFP port 1 1 1

Product Features

9 10/100/1000BASE-T RJ45 port, 1 Gigabit SFP optical port
1 to 8th MP RJ45 port support IEEE 802.3af/at standard PoE power supply
The maximum power supply power of the whole machine is 120W, the maximum POE power supply power of single port is 30W
Support Business Cloud APP and web-side remote management
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression
Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection
Support cloud management, VLAN isolation, standard exchange three working modes
* This model is only 3.0 and above supports cloud management functions

Product model	TL-SG2210PT	TL-SG2210PE	TL-SG2210P	TL-SG2005P
Gigabit RJ45 port	9	9	9	5
Gigabit SFP port	1	1	1	0
PoE port	8	8	8	4
Maximum PoE output power of the whole machine	120W	120W	57W	60W
Maximum power consumption of the whole machine	125W	125W	68W	65W
Maximum PoE output power of the port	30W
PoE power supply standard	IEEE 802.3af/at
MAC address capacity	4K	4K	4K	2K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	1719827	29018044	1719827	1009825
Input power	53.5VDC/2.4A	220VAC, 50Hz	53.5VDC/1.22A	53.5VDC/1.22A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation
