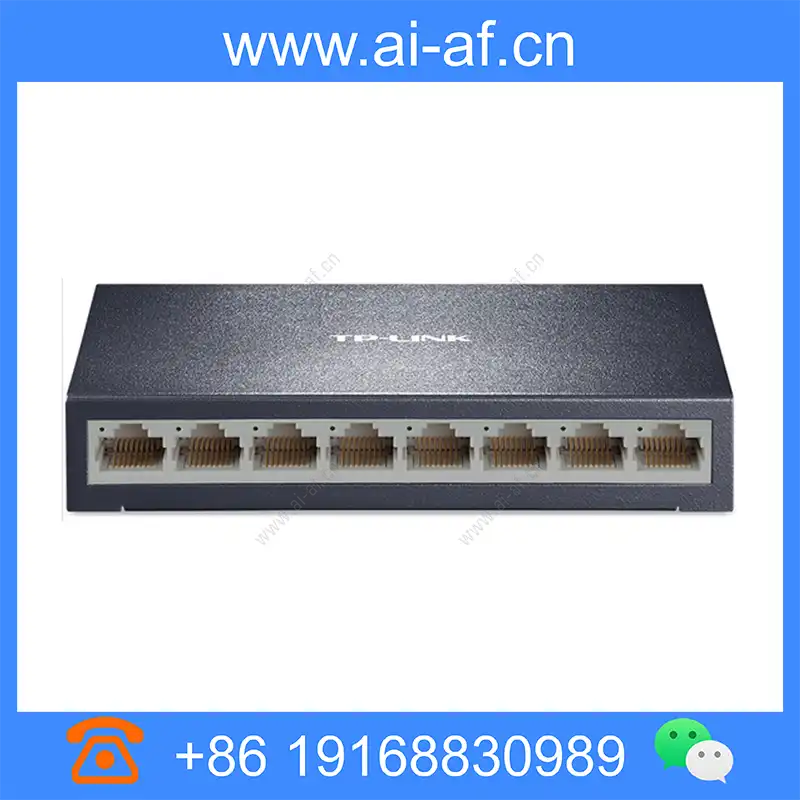

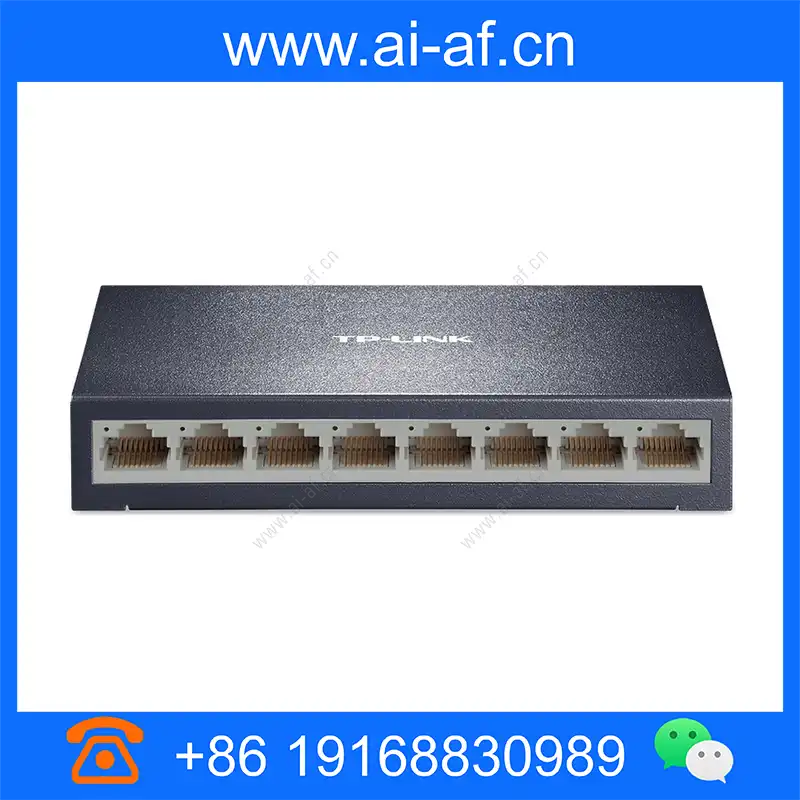

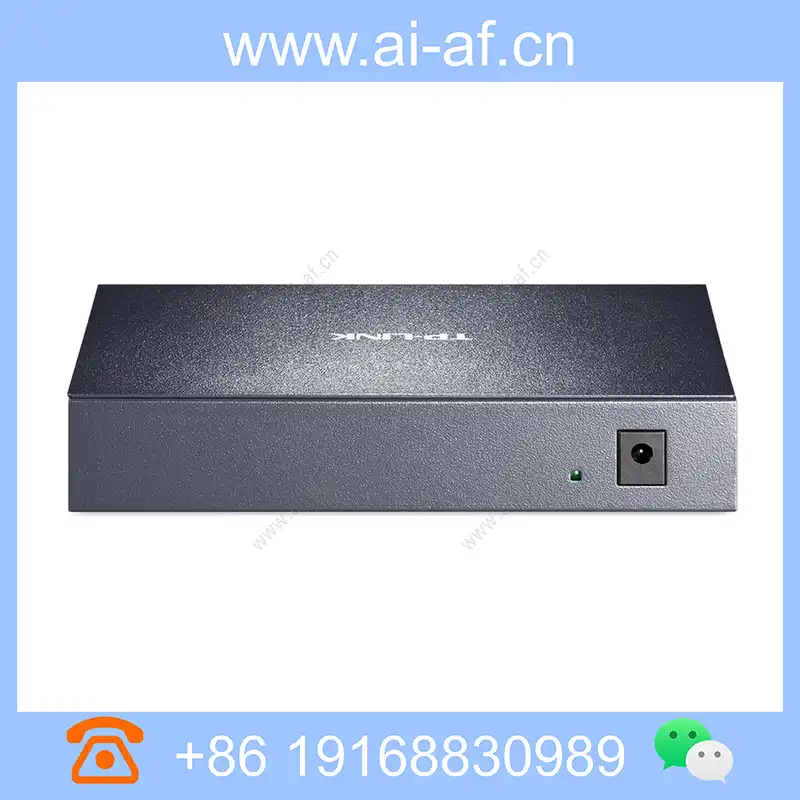

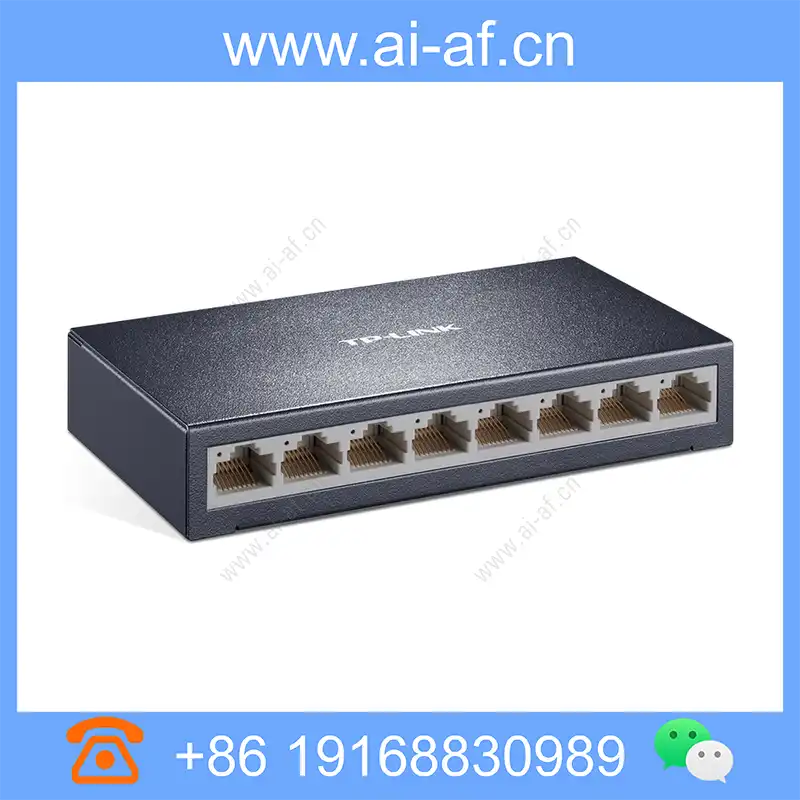

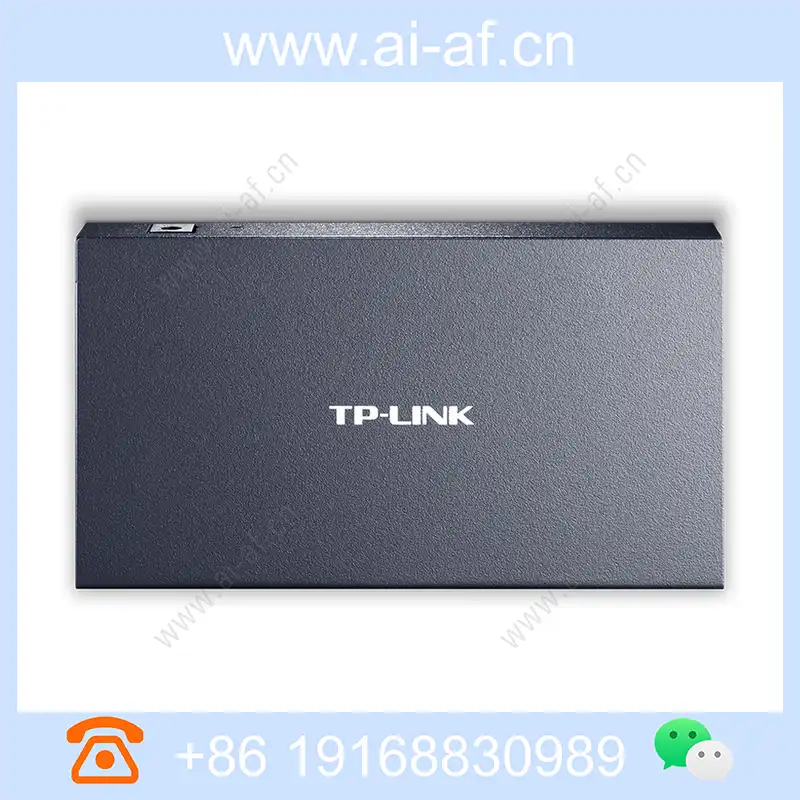

TP-LINK TL-SF1008D 8-port 100M unmanaged switch iron shell layer 2

Brand: TP-LINK
Model: TL-SF1008D
Dimensions: 126mm x 70mm x 23.60mm

Provide 8 10/100M adaptive RJ45 ports Steel shell body, small and exquisite LED dynamic indicator light provides simple status indication and troubleshooting Support port auto flip, more convenient to use Support MAC address self-learning Protocol standard IEEE 802.3、IEEE 802.3u、IEEE 802.3x interface Eight 10/100M adaptive RJ45 ports (Auto MDI / MDIX) LED Power size 126mm x 70mm x 23.6mm(L x W x H) Network media 10Base-T: Category 3 or above UTP 100Base-TX: Category 5 UTP MAC address table 2K Power Specifications 5VDC/0.4A Packaging accessories 8-port 100M switch TL-SF1008D power adapter User Manual Warranty Card Use environment Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing

Product Features


    • Provide 8 10/100M adaptive RJ45 ports
    • Steel shell body, small and exquisite
    • LED dynamic indicator light provides simple status indication and troubleshooting
    • Support port auto flip, more convenient to use
    • Support MAC address self-learning

Technical Specifications

Property DescriptionProperty Value
Protocol standardIEEE 802.3、IEEE 802.3u、IEEE 802.3x
interfaceEight 10/100M adaptive RJ45 ports (Auto MDI / MDIX)
LEDPower
size126mm x 70mm x 23.6mm(L x W x H)
Network media10Base-T: Category 3 or above UTP 100Base-TX: Category 5 UTP
MAC address table2K
Power Specifications5VDC/0.4A
Packaging accessories8-port 100M switch TL-SF1008D power adapter User Manual Warranty Card
Use environmentOperating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
