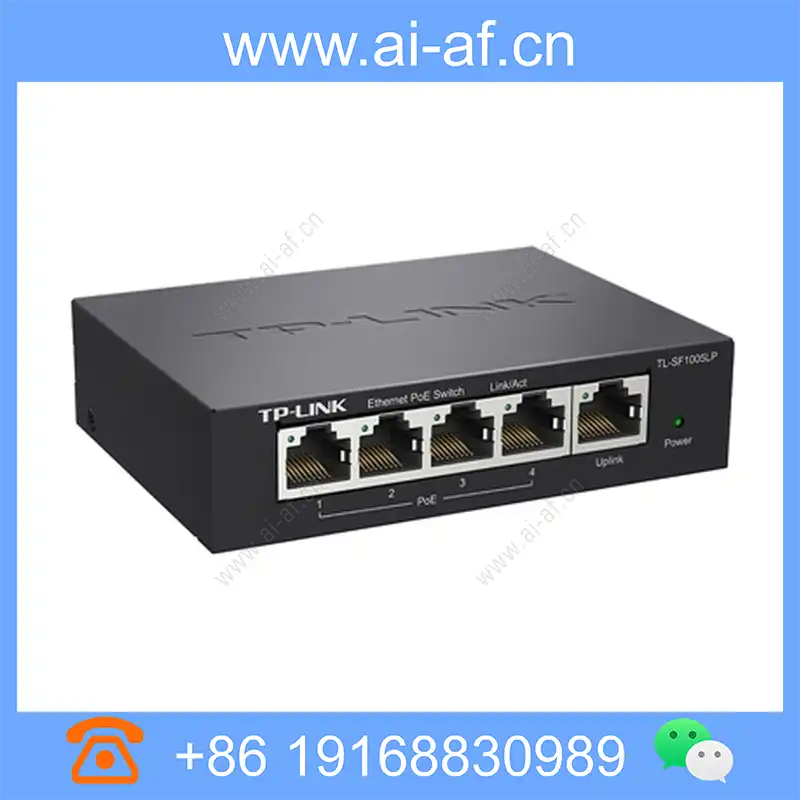

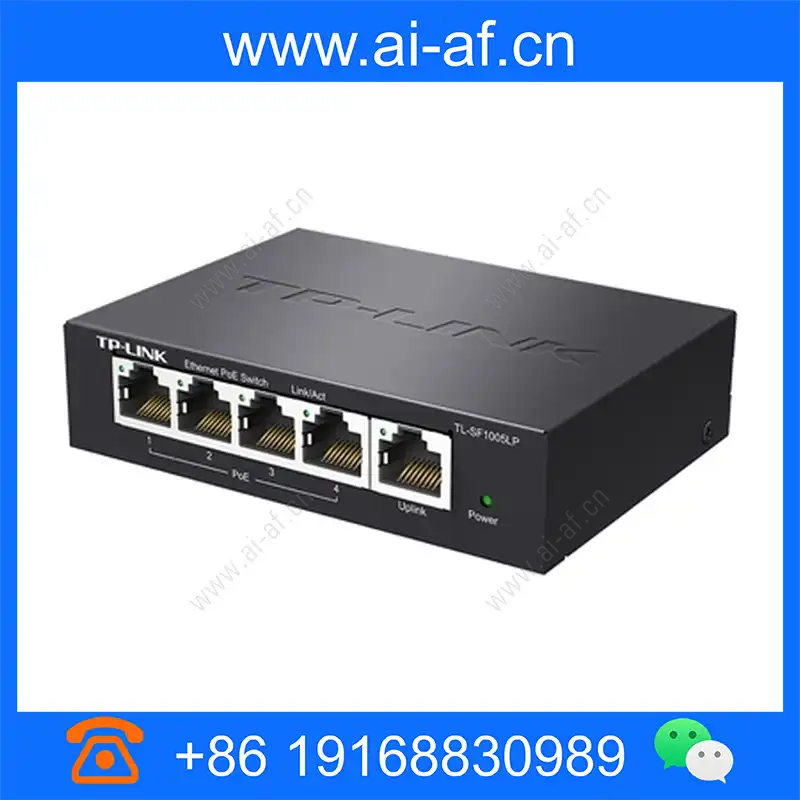

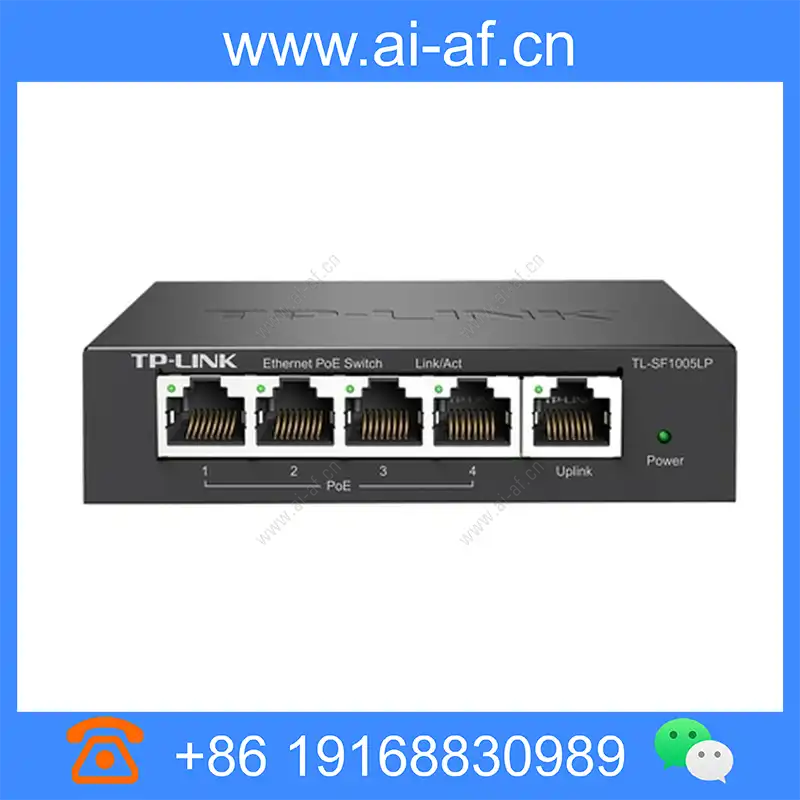

TP-LINK TL-SF1005LP 5-port 100M unmanaged PoE switch 1FE 4PoE 41W iron shell

Brand: TP-LINK

Model: TL-SF1005LP

Dimensions: 100mm x 73mm x 25mm

5 10/100M adaptive RJ45 ports, ports 1~4 support IEEE 802.3af/at standard PoE power supply Single port POE power can reach 30W, the maximum PoE output power of the whole machine is 41W Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control Support port auto flip (Auto MDI / MDIX) function All ports have wire-speed forwarding capabilities Product model TL-SF1005P TL-SF1005LP TL-SF1005MP 100M RJ45 port 5 5 5 PoE port 4FE 4FE 4FE Maximum PoE output power of the whole machine 57W 41W 21W Machine power consumption 68W 45W 25W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af IEEE 802.3af Maximum PoE output power of the port 30W 15.4W MAC address capacity 2K Shell size (mm) 100×98×25 100×73×25 100×98×25 Input power 53.5VDC/1.13A 53.5VDC/0.81A 53.5VDC/0.45A Use

Product Features

5 10/100M adaptive RJ45 ports, ports 1~4 support IEEE 802.3af/at standard PoE power supply
Single port POE power can reach 30W, the maximum PoE output power of the whole machine is 41W
Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Support port auto flip (Auto MDI / MDIX) function
All ports have wire-speed forwarding capabilities

Product model	TL-SF1005P	TL-SF1005LP	TL-SF1005MP
100M RJ45 port	5	5	5
PoE port	4FE	4FE	4FE
Maximum PoE output power of the whole machine	57W	41W	21W
Machine power consumption	68W	45W	25W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af		IEEE 802.3af
Maximum PoE output power of the port	30W		15.4W
MAC address capacity	2K
Shell size (mm)	100×98×25	100×73×25	100×98×25
Input power	53.5VDC/1.13A	53.5VDC/0.81A	53.5VDC/0.45A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
100M RJ45 port	5
PoE port	4FE
Maximum PoE output power of the whole machine	41W
Machine power consumption	45W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Maximum PoE output power of the port	30W
MAC address capacity	2K
Shell size (mm)	100x73x25
Input power	53.5VDC/0.81A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
