TP-LINK TL-S7803 multi-service intelligent routing switch 2 main control 2 power supply supports 3 business boards

Product Features

• Provide 2 main control processing units and 2 power modules, support hot swap and redundant backup
• Support 3 10 Gigabit uplink business boards (TL-SH8430-LPU, TL-SH8430F-LPU)
• The motherboard processing unit has built-in AC function, which can manage 500 TP-LINK APs
• Support TP-LINK commercial cloud platform management

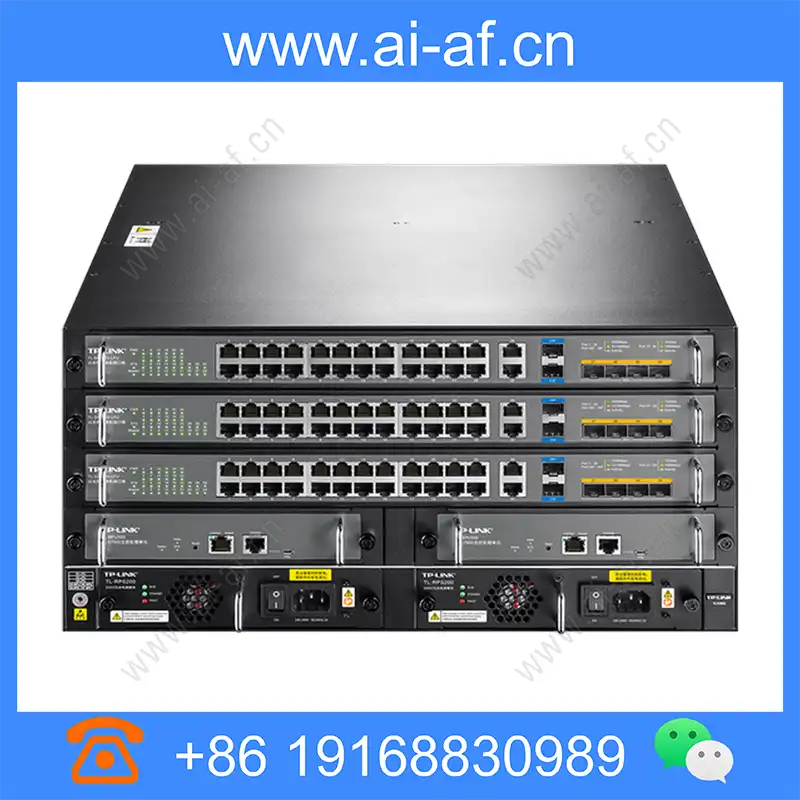

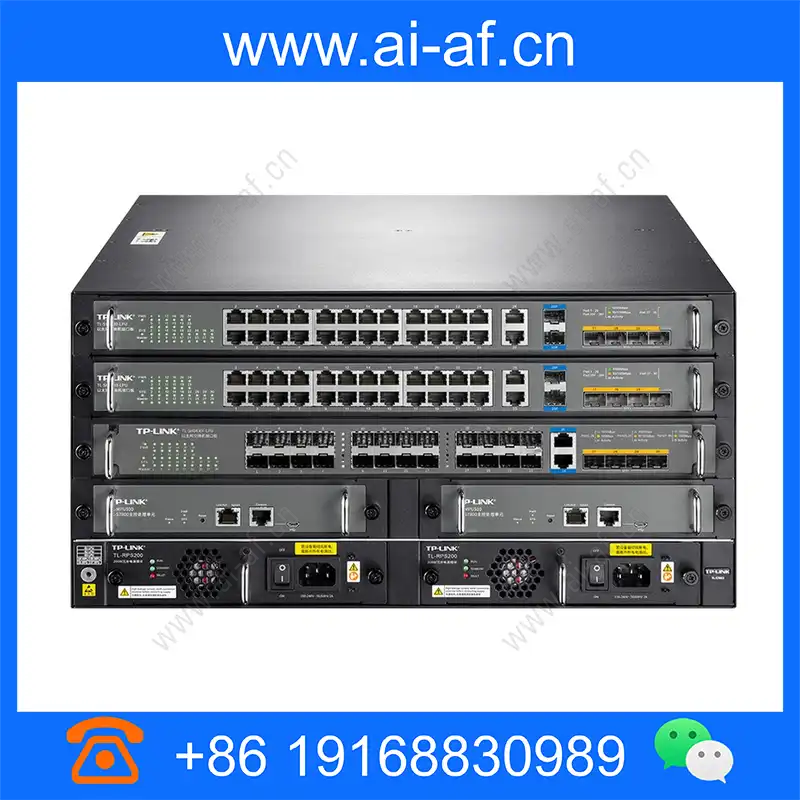

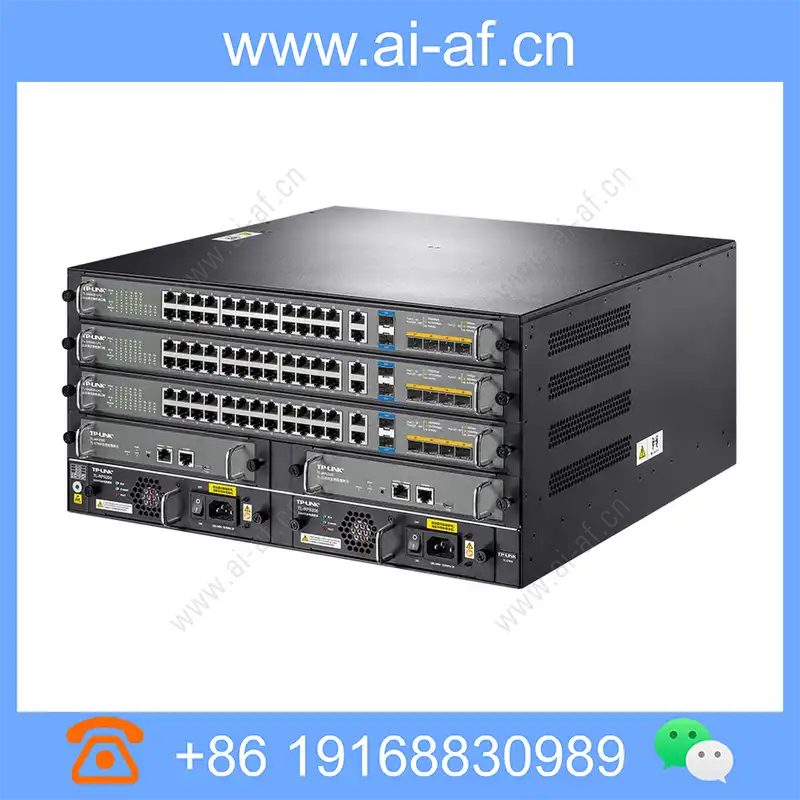

• The main picture of the product is the state of the business board, and the actual shipping needs to be purchased separately.

TL-S7803 is a multi-service intelligent routing switch launched by TP-LINK for a new generation of network architecture. It has high scalability, high reliability, high stability and high security. The whole machine provides 2 main control boards, 3 business boards, and 2 power module slots, and these key modules support hot swap and redundant backup design. The main control board has built-in AC function and can manage up to 500 APs; the business board provides flexible Gigabit access and 10 Gigabit uplink ports; TL-S7803 supports TP-LINK commercial cloud platform management and Layer 3 routing protocol (16K host routing) , 7KV lightning protection, can be widely used in the core layer and aggregation layer of large and medium-sized enterprises, campuses, data centers and other networks.

10G uplink, comprehensively improve hardware performance

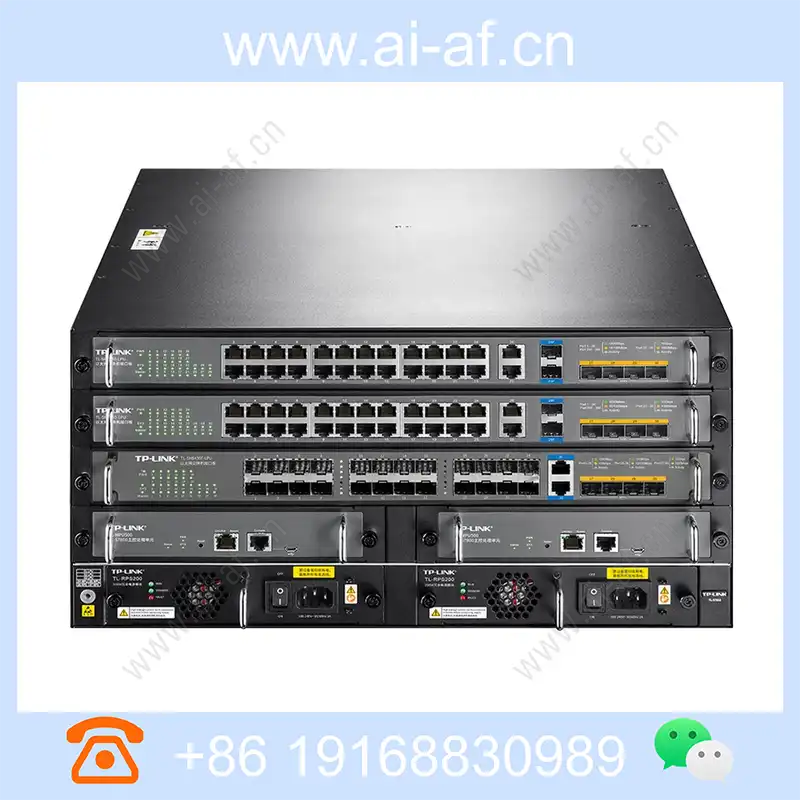

TL-S7803 supporting service boards include TL-SH8430-LPU and TL-SH8430F-LPU, which support mixed insertion. The port specification of TL-SH8430-LPU is: 26GE + 2SFP(Combo) + 4SFP+; the port specification of TL-SH8430F-LPU is: 24SFP + 2GE + 4SFP+.

TL-S7803 can flexibly access 1~3 business boards according to the actual needs, and realize the multi-service business boards through intelligent stacking technology. The whole frame provides up to 78 Gigabit ports and 12 10 Gigabit ports to meet high-density network access Into demand.

All ports of the service board support wire-speed forwarding, which can meet the high-speed networking requirements in various scenarios.

*Business boards TL-SH8430-LPU, TL-SH8430F-LPU need to be purchased separately

Redundant design of key components, greatly improving reliability

The key components of TL-S7803 adopt redundant design and provide two main control boards TL-MPU500. When one of the main control units fails, the backup main control unit can quickly take over the business;

Provide 2 power modules TL-RPS200 to reduce the risk of equipment power outage and ensure continuous and stable operation of the equipment;

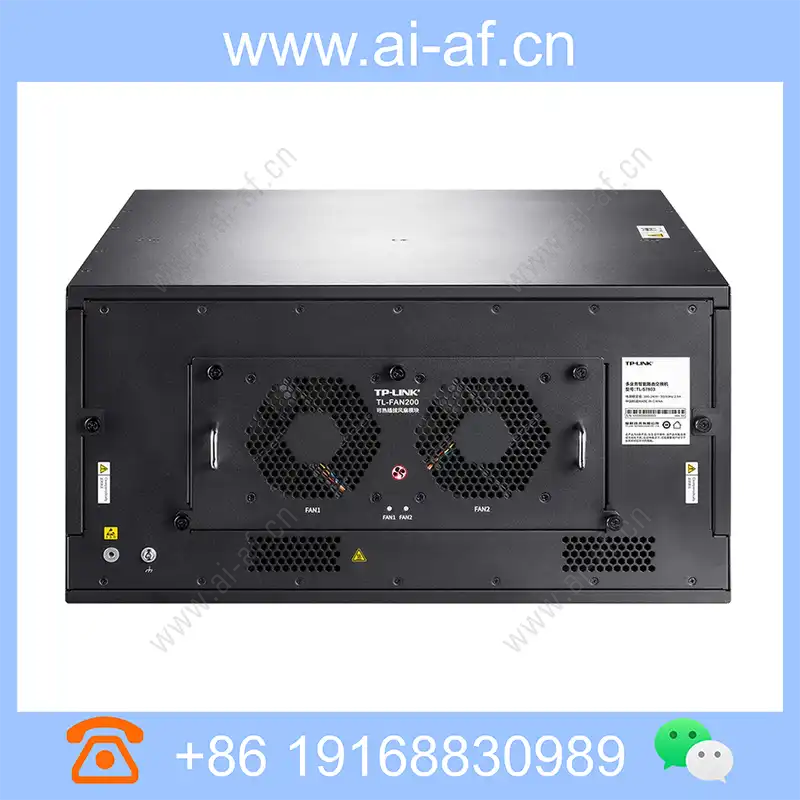

Provide one fan module TL-FAN200, built-in two fans to dissipate heat to the whole machine;

The business board, main control board, power supply module and fan module all support hot-swap technology and cooperate with a series of fault detection and judgment mechanisms to greatly improve equipment reliability.

Strong business processing capabilities

Support OSPF dynamic routing protocol, solve the routing problem of large complex network after dividing subnet, simplify network configuration.

Support RIP dynamic routing protocol, solve the routing problem after dividing the subnets in small and medium-sized networks, simplify network configuration.

Support static routing, administrators manually configure routing entries to achieve communication between different network segments, simple, efficient and reliable.

Support DHCP server to assign IP addresses to hosts in the network.

Supports DHCP relay, switches on different interfaces or subnets can also obtain IP addresses, reducing the number of DHCP servers.

Support proxy ARP, so that hosts in different physical networks on the same network segment can communicate normally.

Support IEEE 802.1Q VLAN, MAC VLAN, protocol VLAN, Private VLAN, users can flexibly divide VLAN according to different needs.

Support GVRP, realize the dynamic distribution, registration and attribute propagation of VLAN, reduce the amount of manual configuration, and ensure the correct configuration.

Support VLAN VPN function, encapsulate the outer VLAN Tag for the user's private network packet at the public network access end, so that the packet carries two layers of VLAN Tag across the public network.

Support QoS, support three priority modes based on port, 802.1P and DSCP and four queue scheduling algorithms: Equ, SP, WRR, SP+WRR.

Support ACL, filter packets by configuring matching rules, processing operations, and time permissions, and provide flexible security access control strategies.

Support IGMP V1/V2 multicast protocol, MLD Snooping, IGMP Snooping to meet the needs of multi-terminal HD video surveillance and video conference access.

Built-in AC function to meet wireless networking needs

TL-S7803 has built-in AC function, which can manage 500 APs without additional purchase of AC hardware;

Support channel automatic adjustment, can automatically select the wireless channel with the least interference according to the surrounding wireless environment when the AP starts;

Supports weak signal rejection, which can exclude clients whose signal is lower than the set threshold;

Support spectrum navigation, and guide dual-band clients to preferentially associate with 5GHz radio frequency;

Support AP load balancing, reasonably distribute AP load, prevent individual APs from being overloaded, and thus improve the performance of the entire wireless network.

Complete security protection mechanism

Support IP address, MAC address, VLAN and port quaternary binding to filter data packets.

Supports ARP protection to protect against gateway spoofing and man-in-the-middle attacks such as ARP spoofing and ARP flood attacks common in LANs.

Support IP source protection to prevent illegal address spoofing including MAC spoofing, IP spoofing, and MAC/IP spoofing.

Support DoS protection, support Land Attack, Scan SYNFIN, Xmascan, Ping Flooding and other attacks.

Support 802.1X authentication, provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Support port security, stop learning when the number of MAC addresses learned by the port reaches the maximum number, prevent MAC address attacks and control port network traffic.

Support DHCP Snooping, effectively prevent privately set DHCP server, and ensure the legality of the DHCP server.

Easy operation and maintenance

Support TP-LINK commercial cloud platform, Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) and other diversified management and maintenance methods.

Support HTTPS, SSL V3, TLSV1, SSHV1/V2 and other encryption methods, management is more secure.

Support RMON, system log, port traffic statistics, easy network optimization and transformation.

Support cable detection, Ping detection and Tracert detection operations, easy analysis of faulty network nodes.

Support LLDP, convenient for network management system to query and judge the communication status of the link.

Support CPU monitoring, memory monitoring, Ping detection, Tracert detection, cable detection.

Multiple access authentication methods

TL-S7803 supports rich access authentication methods such as WeChat connected Wi-Fi, SMS authentication, Web authentication, remote Post authentication, MAC authentication, etc. It is suitable for various scenarios.
