TP-LINK TL-R479GP-AC PoE·AC All-in-one Gigabit VPN Router 9 ports with machine capacity 50 manage 20 APs
9 Gigabit Ethernet ports, 1WAN+8LAN Built-in wireless controller for unified management of TP-LINK AP products All LAN ports support standard PoE power supply, no need to purchase additional PoE switches IPSec/PPTP/L2TP VPN, remote communication is more secure Access authentication (Web authentication, SMS authentication, PPPoE server) Internet behavior management (mobile APP control/desktop application control/website filtering/webpage security) port 1 10/100/1000M RJ45 WAN port 8 10/100/1000M RJ45 LAN ports (support PoE external power supply) Indicator light Per port: Link/Act Per device: SYS PoE performance Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 57W Input power 100~240V AC,50/60Hz Cooling method Natural
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|

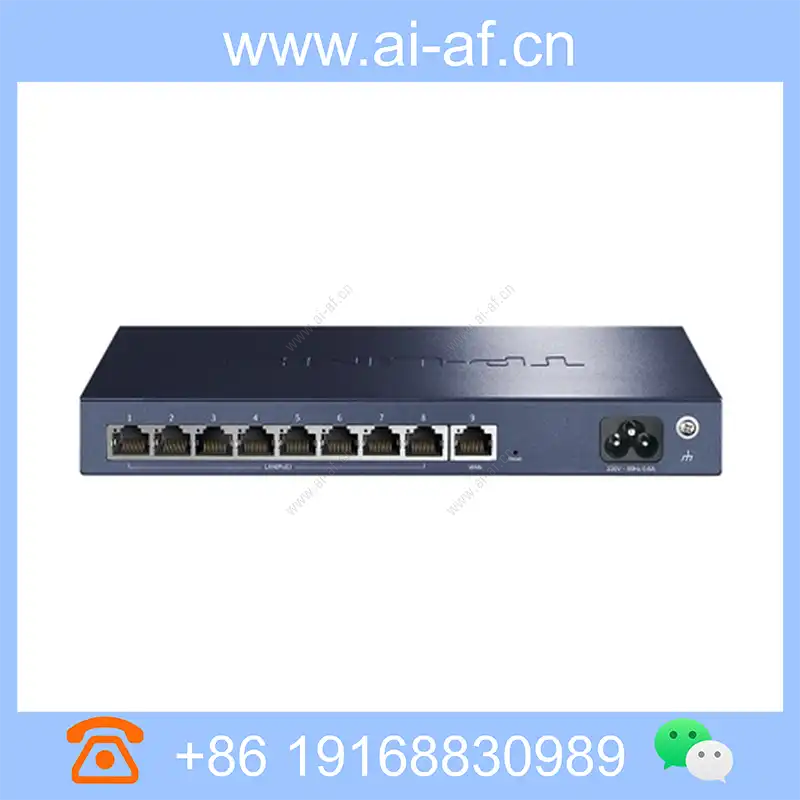

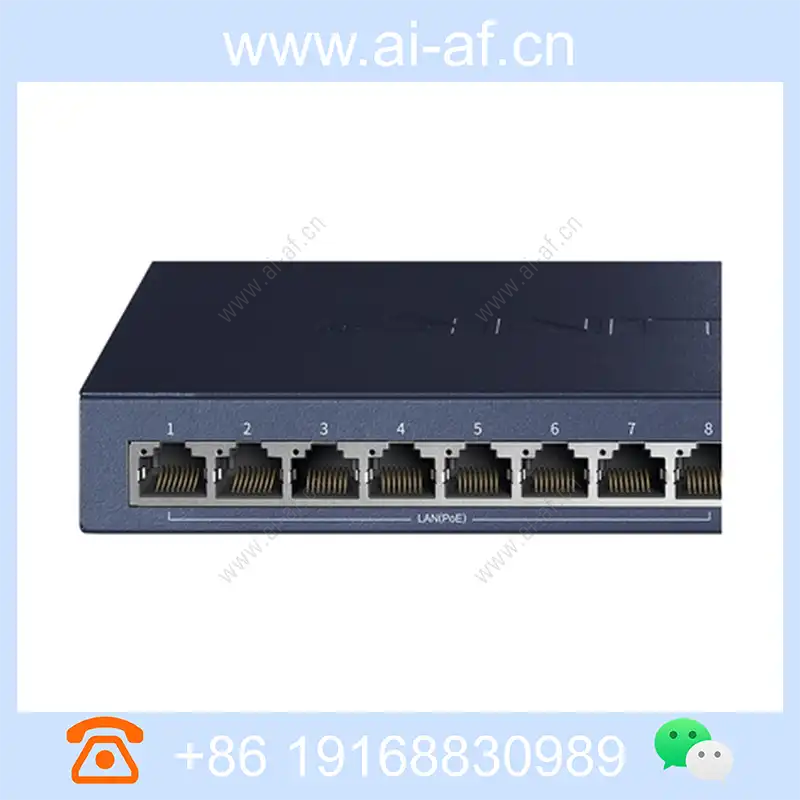

| port | 1 10/100/1000M RJ45 WAN port 8 10/100/1000M RJ45 LAN ports (support PoE external power supply) |
| Indicator light | Per port: Link/Act Per device: SYS |
| PoE performance | Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 57W |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Typical belt load | 30-50 units |
| Dimensions | 226(w)x131(D)x35(H) mm |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| Operating status | Interface information Traffic statistics Hardware resource utilization |
| Interface settings | WAN settings LAN settings |
| AP management | AP settings, unified management of 20 TP-LINK AP products Plug and Play, wireless network settings List of wireless host status |
| Behavior control | Application control, one-click control of social software/video software/music software/shopping and leisure software/news software/P2P software/financial software/online games/app store/basic applications and other common applications limit QQ black and white list website group filtering filtering Web file type intelligent two-way bandwidth control access control list (ACL) behavior audit |
| Safety management | ARP protection (IP+MAC binding, GARP) MAC address filtering Attack protection (DoS attack protection, suspicious packet attack protection) |
| VPN | IPSec VPN PPTP/L2TP VPN, support server and client mode |
| Certification Management | Web authentication, support local authentication, Radius authentication, one-click Internet access, meet a variety of authentication needs SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone No authentication strategy |
| Advanced Features | PPPoE authentication server Routing settings (policy routing, static routing, system routing) NAT settings (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ) DDNS (peanut shell, Kemai, 3322) UPnP IP traffic statistics port monitoring |
| System Tools | Chinese Web network management, remote management configuration backup and import configuration software upgrade, automatic cleaning diagnostic tools (ping detection, tracert detection) system time settings system logs |
