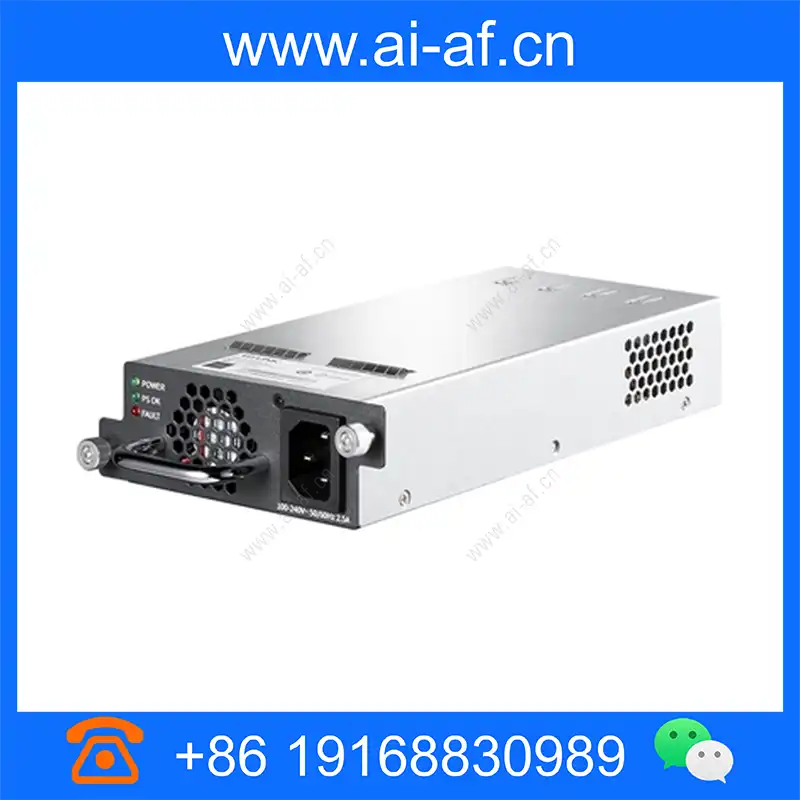

TP-LINK TL-PSM100-AC 100W Plug-in Power Module

Brand: TP-LINK

Model: TL-PSM100-AC

Dimensions: 213mm x 98mm x 41.60mm

100W pluggable power module Communication input parameters: 100-240V ~ 50 / 60Hz DC output parameters: 12VDC / 8.33A Output power: 100W Support hot swap Support input undervoltage protection, input underflow protection, output overvoltage protection, output overcurrent protection, output short circuit protection, over temperature protection TL-PSM100-AC is TP-LINK for high-end network equipment development output power up to 100W, supports hot-swappable power modules. The TL-PSM100-AC can be used to support a TP-LINK switch that supports double heat-swappable power supplies, the firewall (such as TL-ST8226F, TL-SH8452, TL-FW6600, etc.) is used to achieve power 1 + 1 redundant backup. When the main power supply PWR1 fails, the device can quickly switch to the backup power supply PWR2 for

Product Features

100W pluggable power module
Communication input parameters: 100-240V ~ 50 / 60Hz
DC output parameters: 12VDC / 8.33A
Output power: 100W
Support hot swap
Support input undervoltage protection, input underflow protection, output overvoltage protection, output overcurrent protection, output short circuit protection, over temperature protection

TL-PSM100-AC is TP-LINK for high-end network equipment development output power up to 100W, supports hot-swappable power modules.

The TL-PSM100-AC can be used to support a TP-LINK switch that supports double heat-swappable power supplies, the firewall (such as TL-ST8226F, TL-SH8452, TL-FW6600, etc.) is used to achieve power 1 + 1 redundant backup.

When the main power supply PWR1 fails, the device can quickly switch to the backup power supply PWR2 for power supply, and ensure continuous stability of the power, providing network system reliability.

TL-PSM100-AC supports 100-240V ~ 50 / 60Hz AC input, 12VDC / 8.33A DC output; support input undervoltage protection, input underflow protection, output overvoltage protection, output overcurrent protection, output short circuit protection, over temperature Protection; plug and play, no configuration is required.

Technical Specifications

Property Description	Property Value
Input specifications	100-240V~ 50/60Hz 2.5A
Output specifications	12VDC/8.33A
Output Power	100W
Shell size	213mm x 98mm x 41.6mm

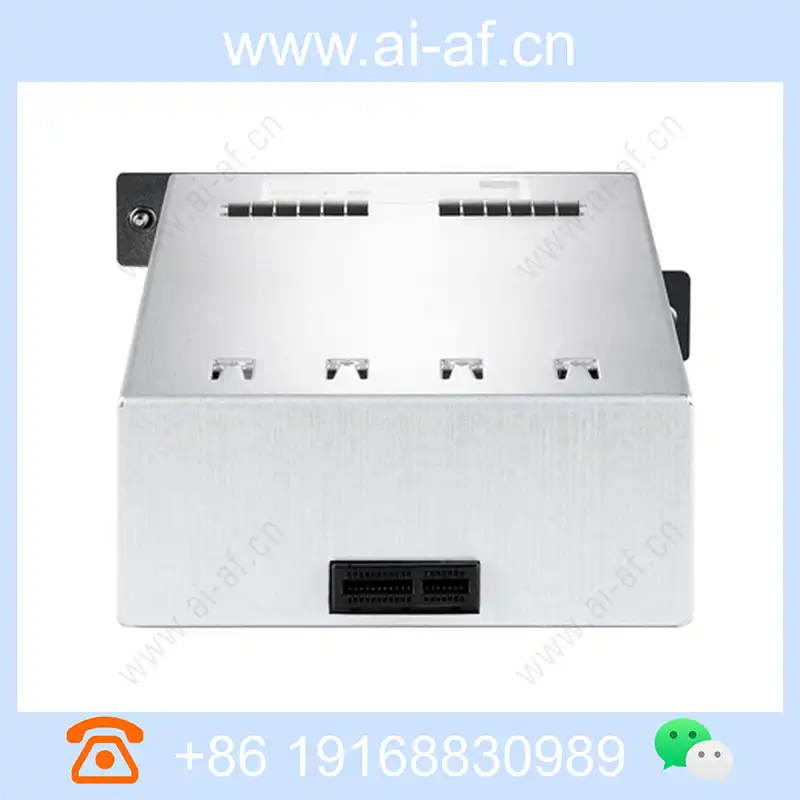

interface	AC input socket DC output socket

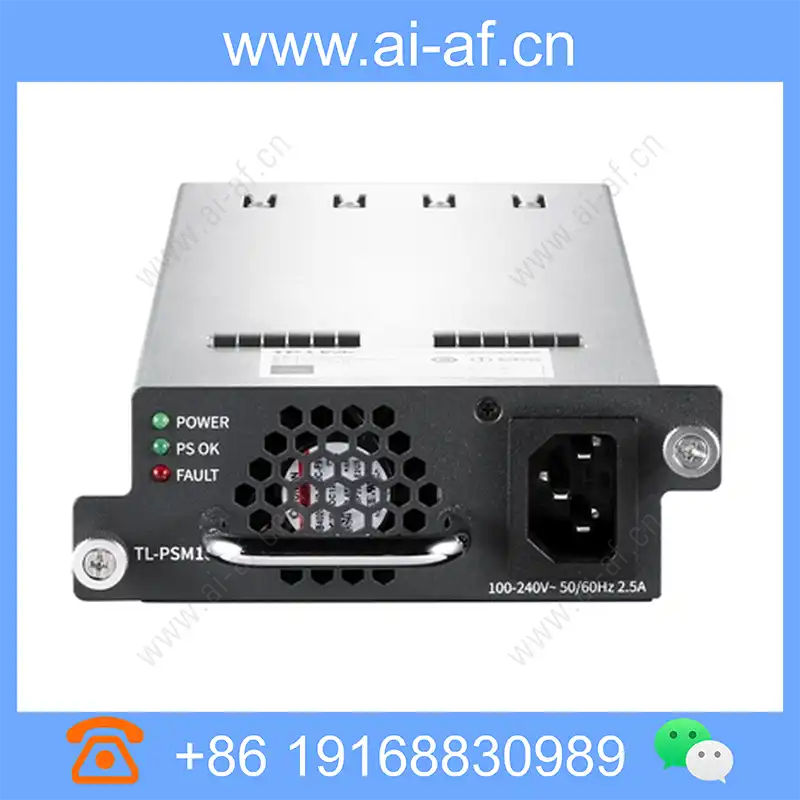

LED	POWER Indicator PS OK Indicator fault indicator
Use environment	operating temperature: 0°C ~ 70°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH without condensation storage humidity: 5% ~ 95% RH no condensate
