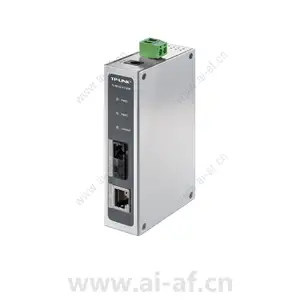

TP-LINK TL-MC111B Industrial Grade Industrial Optical Transceiver

Brand: TP-LINK

Model: TL-MC111B-Industrial-Grade

Dimensions: 115mm x 70mm x 28mm

1 100M SC optical fiber interface, 1 100M RJ45 port Working wavelength: 1310nm (transmit), 1550nm (receive) Industrial grade working temperature: -40℃~75℃ Wide voltage input: 9.6V~60VDC Small size (115 mm *70 mm *28 mm), better adapt to industrial environment Multiple installation methods: rail installation + wall installation IP30 protection: reduce the impact of dust Aluminum alloy shell, durable Two power inputs, redundant backup, greatly improve the reliability of product power supply EMC high protection level, without fear of various harsh environments *Industrial fiber transceivers are not equipped with a power supply at the factory. If you need to use a power supply, please purchase it separately Recommended to buy our industrial grade power supply: TL-P12200A or TL-P24075

Product Features

1 100M SC optical fiber interface, 1 100M RJ45 port
Working wavelength: 1310nm (transmit), 1550nm (receive)
Industrial grade working temperature: -40℃~75℃
Wide voltage input: 9.6V~60VDC
Small size (115 mm *70 mm *28 mm), better adapt to industrial environment
Multiple installation methods: rail installation + wall installation
IP30 protection: reduce the impact of dust
Aluminum alloy shell, durable
Two power inputs, redundant backup, greatly improve the reliability of product power supply
EMC high protection level, without fear of various harsh environments
*Industrial fiber transceivers are not equipped with a power supply at the factory. If you need to use a power supply, please purchase it separately
Recommended to buy our industrial grade power supply: TL-P12200A or TL-P24075 industrial grade

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE 802.3,802.3i,802.3u
Port shape	1 100M RJ45 port 1 100M single-mode single fiber optic module, transmit wavelength 1310nm, received wavelength 1550 nm
Indicator light	2 status indicators LINK / ACT PWR1, PWR2
power input	DC input voltage 12/24/48 VDC (9.6~ 60 VDC) input current 0.10A(MAX) support reverse polarity protection
Exchange performance	Support storage Forward MAC address table depth 2K internal cache 768kbit
Light parameter	Average Emitting Optical Power -14 ~ -7DBm Receive Sensitivity -32dBm
Data transmission rate per port	200Mbps full duplex
Packet forwarding rate	100Base-x: 148810pps / port 10base-T: 14881pps / port
structure	IP30 protection rating product size 115mm * 70mm * 28mm rail / wall installation
temperature	operating temperature -40°C - 75°C storage temperature -40°C - 85°C
humidity	Working humidity 10% RH - 90% RH, no condensation storage humidity 5% RH - 90% RH, no condensation
Certification Standards_EMS	IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5
Packaging accessories	Industrial Fiber Transceiver TL-MC111B Industrial Grade Warranty Card User Manual
MTBF	4,835,15 hours
