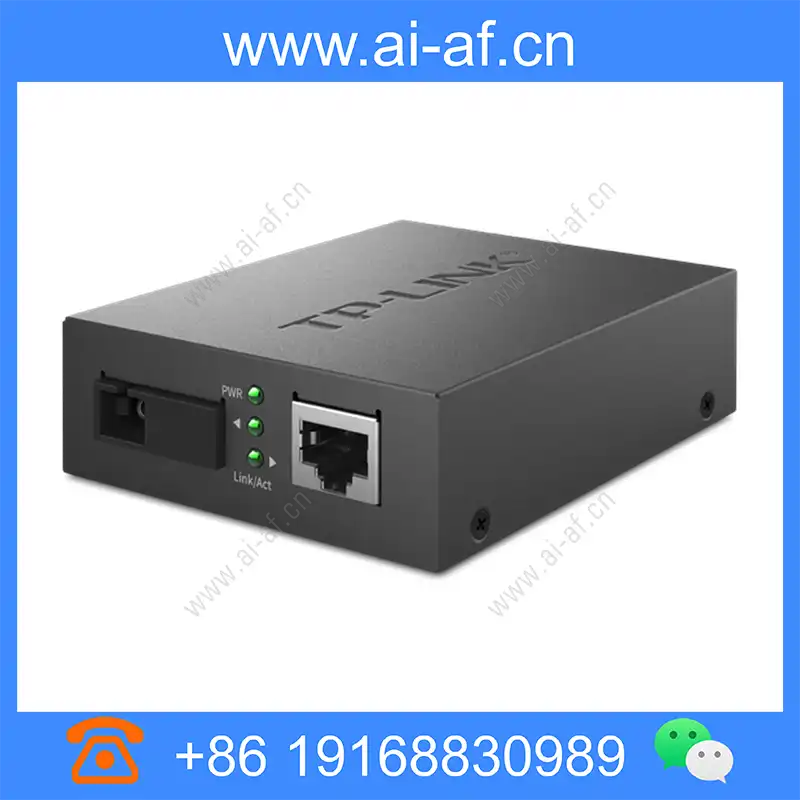

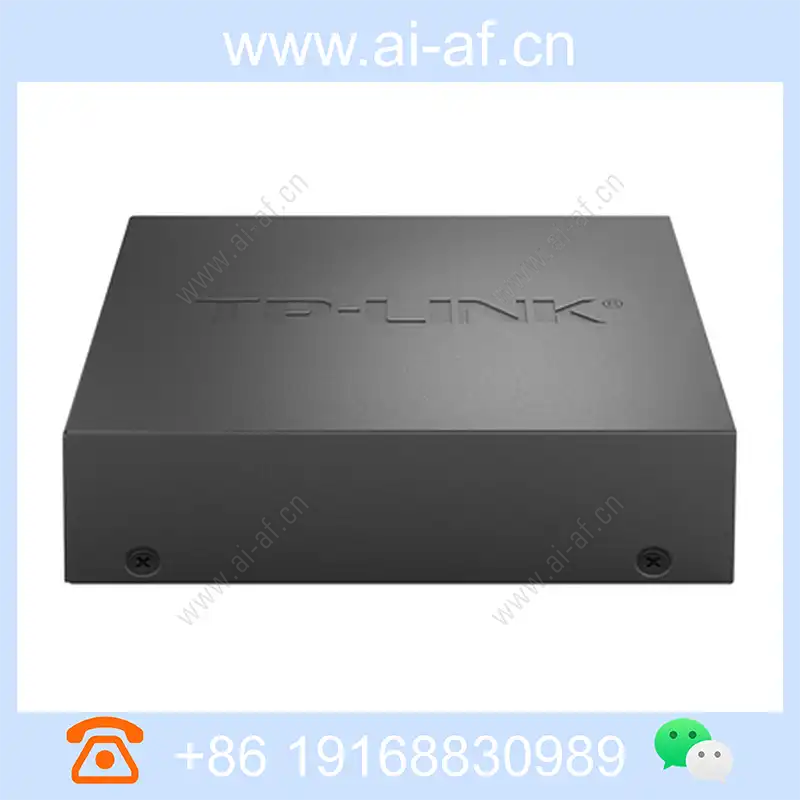

TP-LINK TL-FC111B fiber transceiver 100M single-mode single-fiber 1SC 1FE 20KM
1 100M SC optical port, 1 100M RJ45 network port Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 20 kilometers Working wavelength: 1310nm (transmit), 1550nm (receive) Supported standards IEEE 802.3、IEEE802.3i、IEEE 802.3u interface 1 100Mbps SC optical fiber interface 1 10Mbps/100Mbps adaptive RJ45 port Transmission wavelength TX:1310nm RX:1550nm Transmission medium Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber Indicator light Optical and electrical ports Link / Act, PWR power supply 5VDC/0.4A size 94.5mm*73mm*27mm Use environment Operating temperature: -20°C~60°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE802.3i、IEEE 802.3u |
| interface | 1 100Mbps SC optical fiber interface 1 10Mbps/100Mbps adaptive RJ45 port |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |
| power supply | 5VDC/0.4A |
| size | 94.5mm*73mm*27mm |
| Use environment | Operating temperature: -20°C~60°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -15~-1dBm Receive sensitivity: -32dBm |
| Data transmission rate per port | 200Mbps full duplex |
| Packet forwarding rate | 0.3Mpps |
| MAC address depth | 2K |
| Internal cache | 768Kbit |
