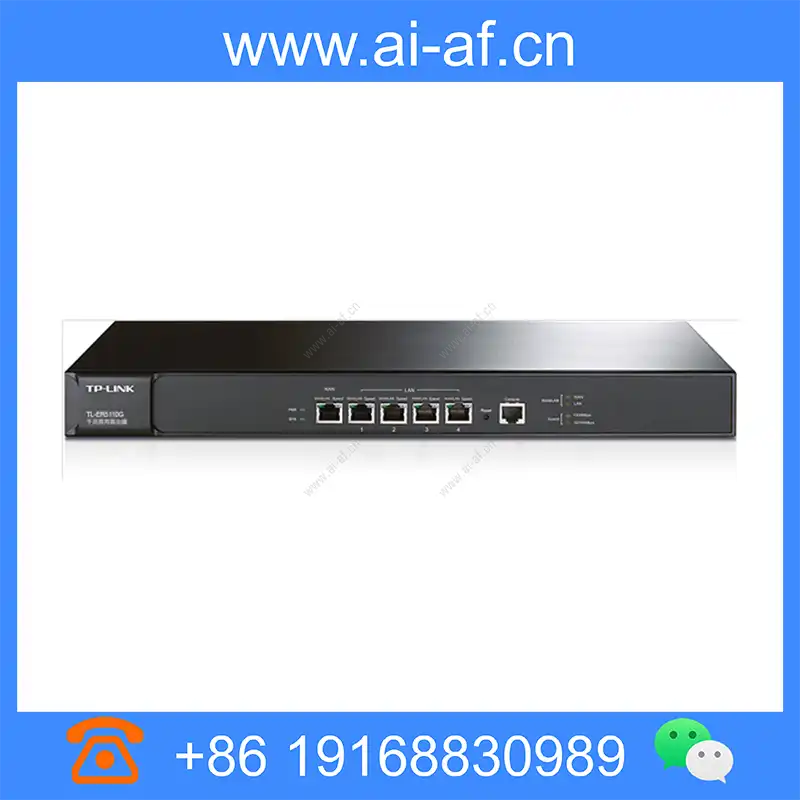

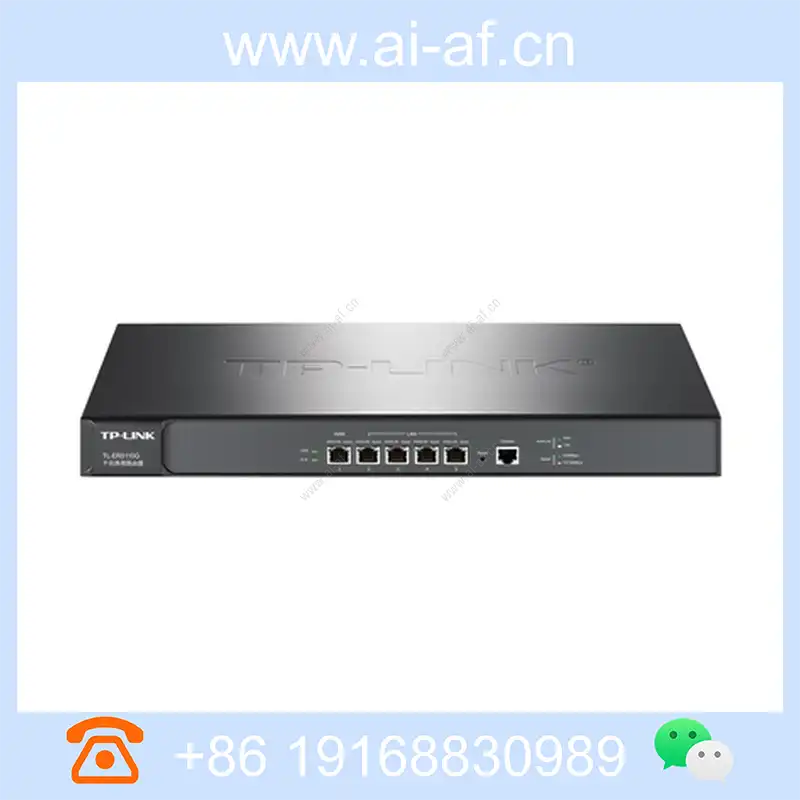

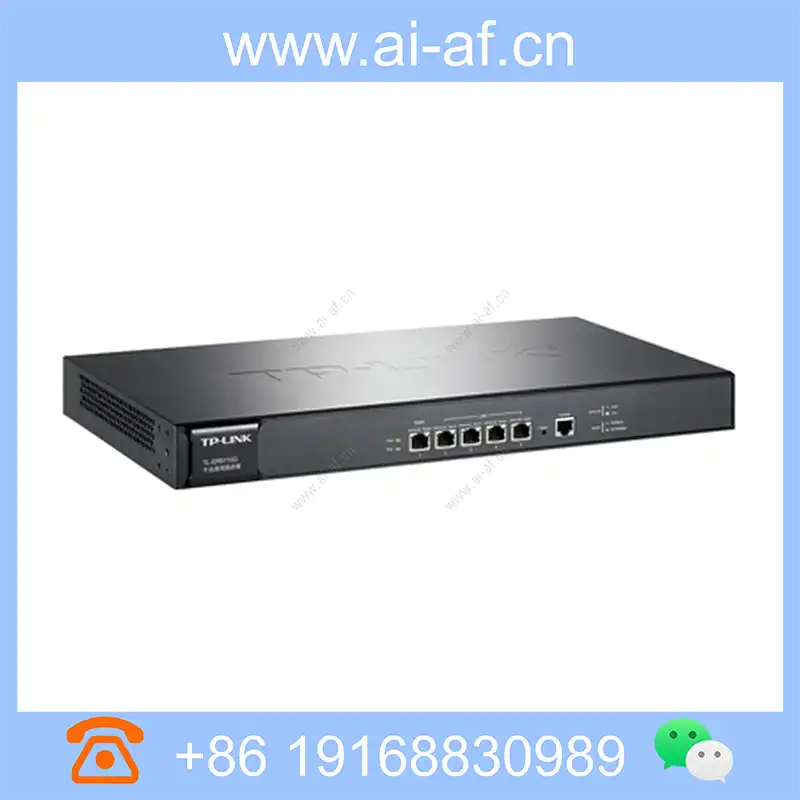

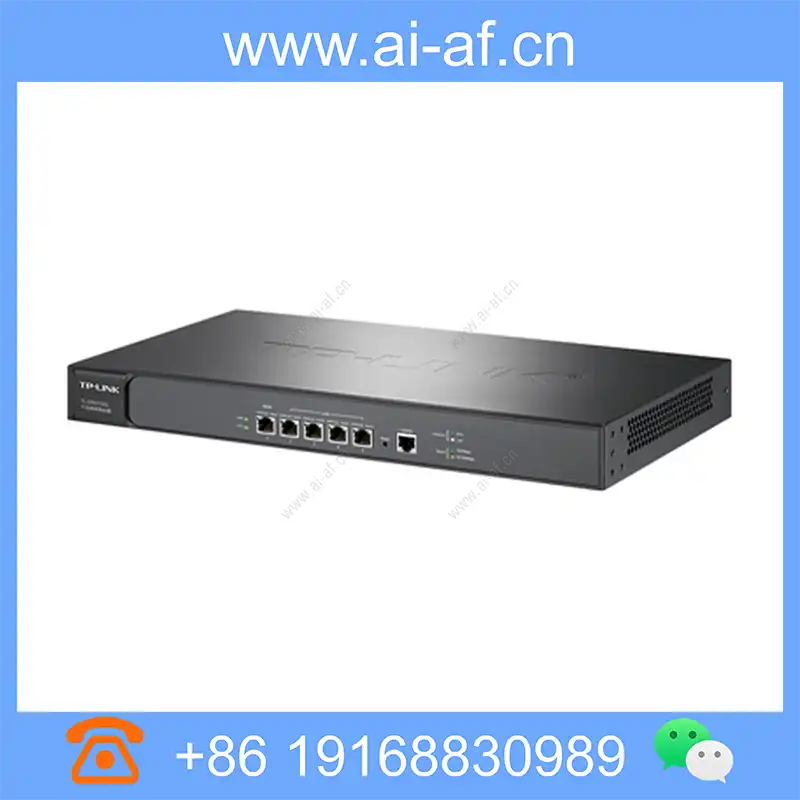

TP-LINK TL-ER5110G Gigabit commercial Router 5 ports with machine capacity 500 manage 50 APs
Dual-core 64-bit network-specific processor, 256MB DDRIII high-speed memory, strong performance 5 Gigabit Ethernet ports, 1WAN+4LAN Web authentication, SMS authentication, PPPoE server Built-in AC function, unified management of TP-LINK enterprise AP Internal and external network ARP protection and common attack protection Intelligent IP bandwidth management and connection limit New hardware architecture, high-speed data forwarding With a new hardware architecture, a professional dual-core 64-bit network-specific processor, the clock frequency 1GHz, with 256MB DDRIIi high-speed flash memory, packet processing capability is greatly improved. In the actual environment, the typical belt is about 500 units. VLAN (multiple local area network) Support IEEE 802.1Q VLAN, enterprises can divide
Product Features
New hardware architecture, high-speed data forwardingWith a new hardware architecture, a professional dual-core 64-bit network-specific processor, the clock frequency 1GHz, with 256MB DDRIIi high-speed flash memory, packet processing capability is greatly improved. In the actual environment, the typical belt is about 500 units. VLAN (multiple local area network)Support IEEE 802.1Q VLAN, enterprises can divide the internal network into different network segments isolated from each other according to their needs, reducing the impact of broadcast storms and viruses; Support VLAN Layer 3 interface, can realize the IP message forwarding across VLAN, and can set DHCP Server, firewall rules, access authentication strategy and other functions based on VLAN. A variety of authentication methods to control online access and realize advertising and marketingSupport Web authentication, you can push merchant advertising information through the authentication page; Support SMS authentication, meet real-name authentication requirements, and conduct secondary marketing based on mobile phone number; Support PPPoE server, which can realize unified dial-up Internet access for intranet users. Built-in AC function, unified management of TP-LINK enterprise APBuilt-in AC function, both a router and a wireless controller, can uniformly control up to 100 TP-LINK enterprise APs, and easily expand the enterprise wireless network; It can automatically discover TP-LINK APs in the network, configure and manage APs uniformly, realize AP zero-configuration access, plug-and-play, and support AP status monitoring and upgrades, which is easy to maintain. Efficient firewall to ensure the security of internal and external networksSupport IP and MAC address binding to effectively prevent ARP spoofing in the internal/external network; when suffering from ARP spoofing, it can actively send ARP correction information according to the specified frequency to restore the normal state of the network in time. Supports internal/external network attack protection functions, which can effectively prevent various common DoS attacks, scanning attacks, and suspicious packet attacks. Support the filtering function based on MAC address, effectively block the access of illegal hosts. It can assign the authority to pass through the router for various network services, ensure the security of the internal and external networks, support access control rules based on user groups and time periods, and achieve more refined management. Flexible bandwidth control to ensure reasonable utilization of bandwidthIt supports the flexible strategy of enabling bandwidth control based on bandwidth utilization, and can perform two-way bandwidth control for each host (IP) in the network, effectively suppressing excessive use of bandwidth by P2P applications such as BT and Thunder, and ensuring smooth network at all times. Provide IP-based connection number limit function, which can limit the number of connections of each computer, prevent a small number of users from excessively occupying a large number of connections, and ensure the smooth progress of games, Internet access, chat, video and voice. More useful featuresSupport dynamic IP, static IP, PPPoE access mode; Support DDNS and virtual server function, easily build intranet server and private website; Support UPnP and ALG service functions to ensure that special network applications smoothly penetrate NAT; The new all-Chinese WEB management interface makes management and maintenance more convenient and quick; Provide log list function to record the network running status in detail; Support Ping, Tracert and other fault detection tools to help quickly find and eliminate network faults. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 1 10/100/1000M RJ45 WAN port 4 10/100/1000M RJ45 LAN port 1 Console port |
| processor | MIPS 64-bit network dedicated processor, clocked at 800MHz |
| RAM | DDRIII 256MB |
| FLASH | 32MB |
| Indicator light | Per port: WAN/LAN, Speed Per device: PWR, SYS |
| Dimensions | 440(w)x227(D)x44(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Typical belt load | Around 500 |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| basic settings | Interface setting DHCP server MAC address setting VLAN (multi-local area network) switch setting DNS proxy |
| AP management | AP settings, manage up to 50 TP-LINK AP wireless network settings wireless client status |
| Transmission control | One-to-one NAT, NAPT, virtual server, ALG, NAT-DMZ IP bandwidth control, connection number control, flow/connection number monitoring Large concurrent connections: 150,000 policy routing, static routing, system routing |
| Safety management | Support ARP scanning, ARP list, GARP Support IP/MAC binding Anti-DoS type, scanning type, suspicious packet type and other common attack behaviors Support setting MAC address filtering black and white list Access control list |
| Access authentication | Web authentication, support local authentication, Radius authentication, one-click Internet access, meet a variety of authentication needs SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone No authentication strategy |
| system service | PPPoE server with 128 dynamic DNS (Peanut Shell, Comay, 3322) UPnP service |
| Management and maintenance | Chinese Web network management, remote management configuration backup and import configuration system software upgrade interface traffic statistics, IP traffic statistics ping, tracert diagnostic tool time setting system log |
