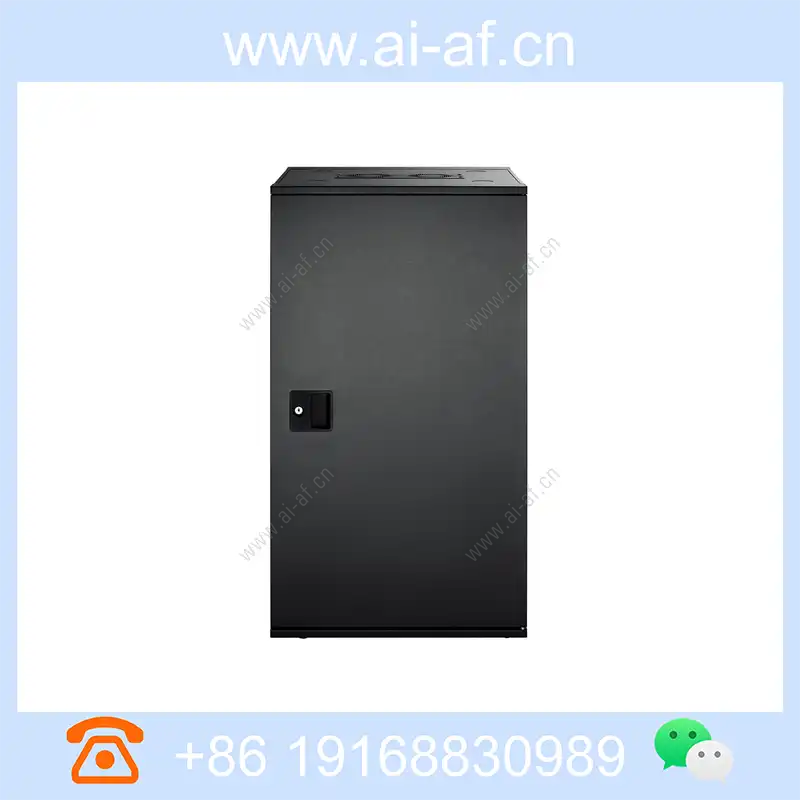

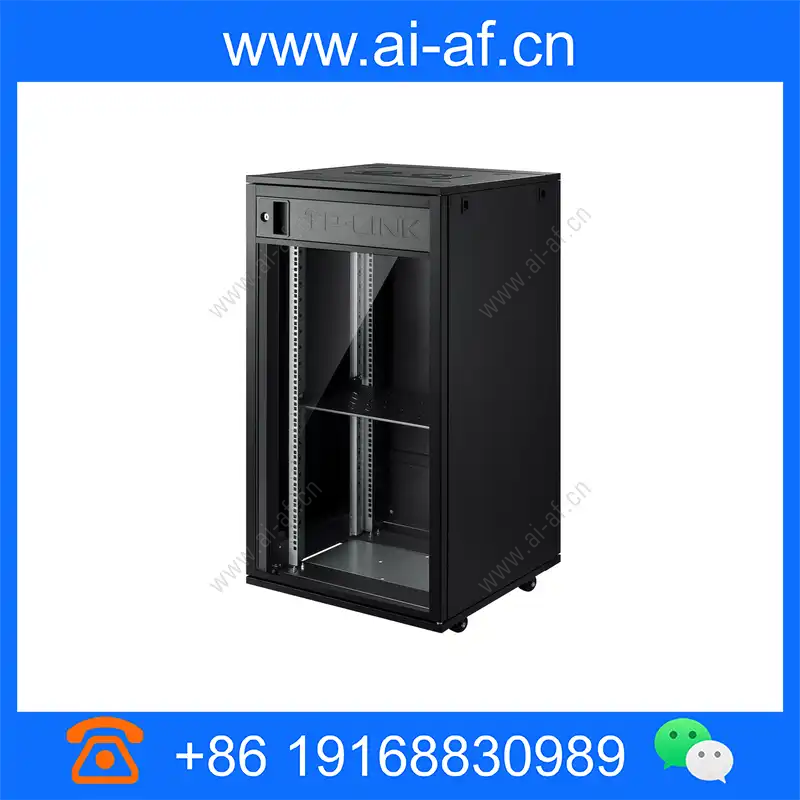

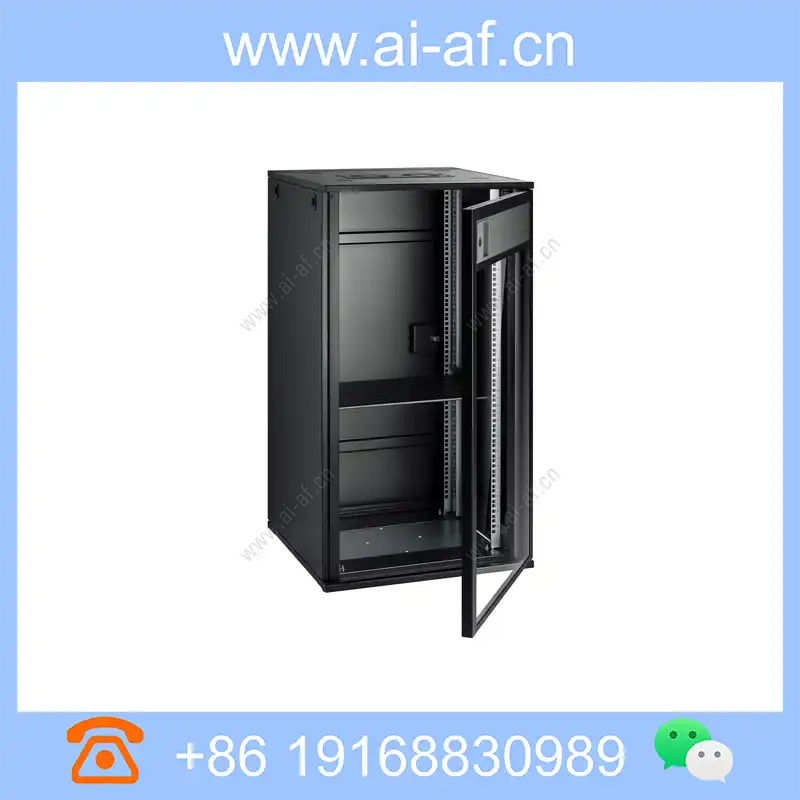

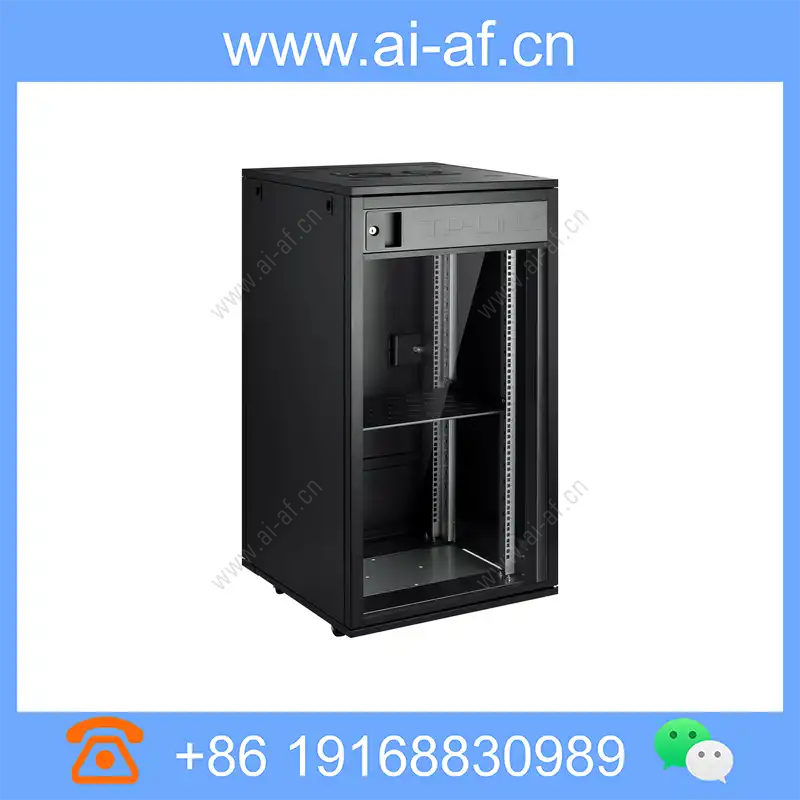

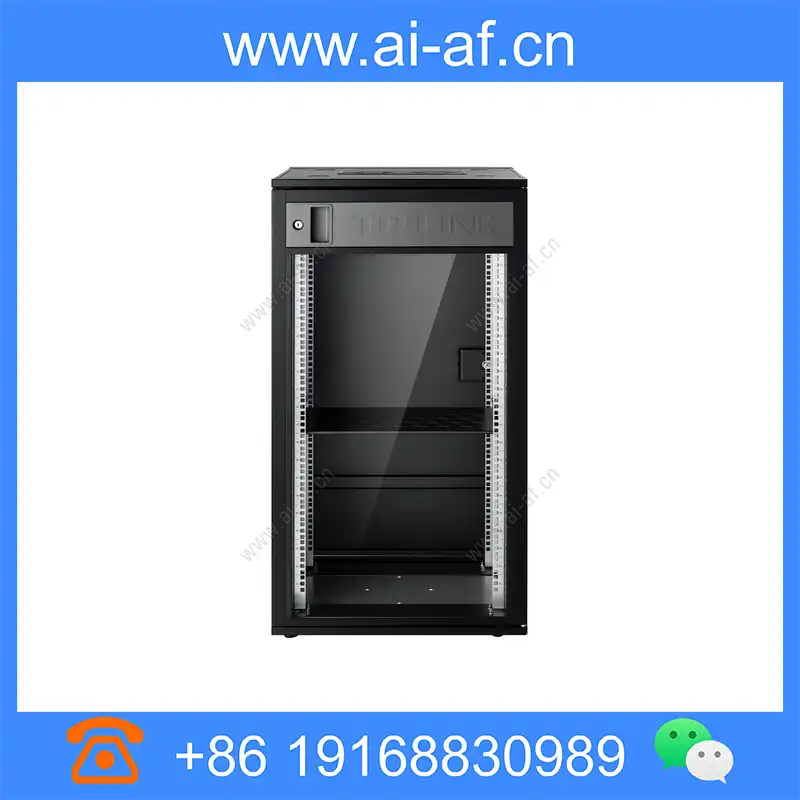

TP-LINK TL-EN2266G 22U Network Cabinet
Product model
TL-EN2266G
22U, 19-inch standard cabinet
600mm(width)*600mm(depth)*1200mm(height)
SPCC cold rolled steel sheet, SGCC galvanized sheet
Landing
Top fan hole + bottom cooling hole + removable side door
Top/Side/Bottom traces
Square hole strip*4, floating nut nail*20, door lock key*2, fan module*1, load-bearing tray*1, removable side door*2, removable bottom cover*1, removable Top cover*1, removable glass door*1, removable steel plate rear door*1, swivel casters*4
≤440mm
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-EN2266G |
| capacity | 22U, 19-inch standard cabinet |
| size | 600mm(width)*600mm(depth)*1200mm(height) |
| Material | SPCC cold rolled steel sheet, SGCC galvanized sheet |
| Installation method | Landing |
| Heat dissipation | Top fan hole + bottom cooling hole + removable side door |
| Overline | Top/Side/Bottom traces |
| Accessories | Square hole strip*4, floating nut nail*20, door lock key*2, fan module*1, load-bearing tray*1, removable side door*2, removable bottom cover*1, removable Top cover*1, removable glass door*1, removable steel plate rear door*1, swivel casters*4 |
| Recommended accommodating device depth | ≤440mm |
