TP-LINK TL-EC621-305 Category 6 single shielded network engineering line Gigabit 8 core 305 meters
standard International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 conductor Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.57mm AWG wire number: 23AWG Quantity: 4 to 8 wire Length: 305 meters Insulation Material: HDPE Thickness: 0.27mm Diameter: .1.12±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown Quilt Material: PVC Thickness: 0.60mm Outer diameter: 7.4±0.4mm Color: Blue other Cross: Yes Torn rope: Yes Drain line: Yes Conductive aluminum foil: Yes Electrical performance Transmission rate: 1000Mbps Operating frequency: 250MHz Characteristic impedance: 100Ω DC copper resistance: maximum 93.8Ω/km Insulation impedance: greater than 5000M Ω·Km Electrical strength:
Technical Specifications
| Property Description | Property Value |
|---|---|
| standard | International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 |
| conductor | Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.57mm AWG wire number: 23AWG Quantity: 4 to 8 wire Length: 305 meters |

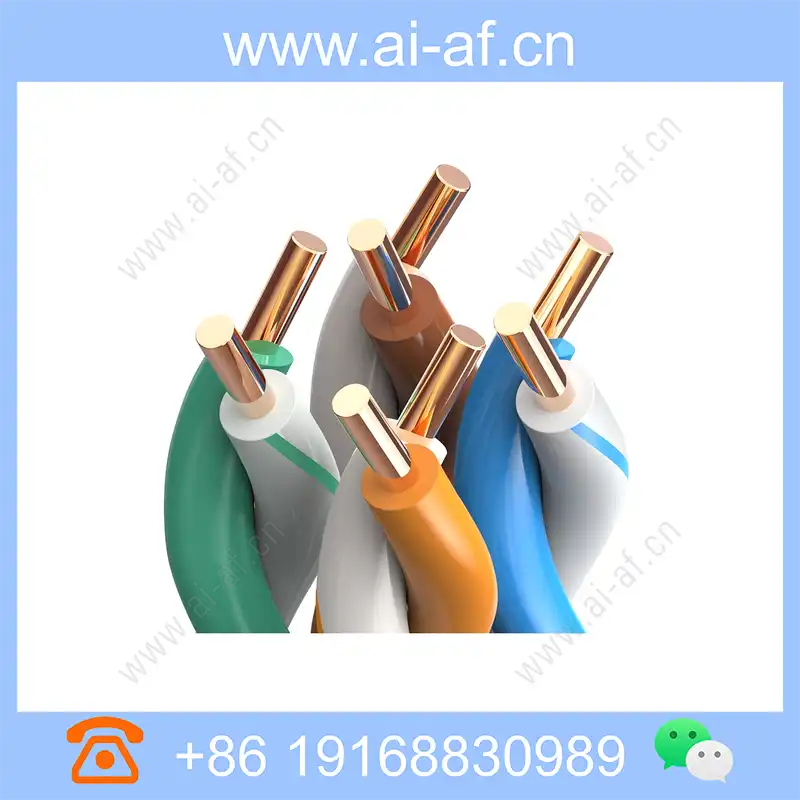

| Insulation | Material: HDPE Thickness: 0.27mm Diameter: .1.12±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown |
| Quilt | Material: PVC Thickness: 0.60mm Outer diameter: 7.4±0.4mm Color: Blue |

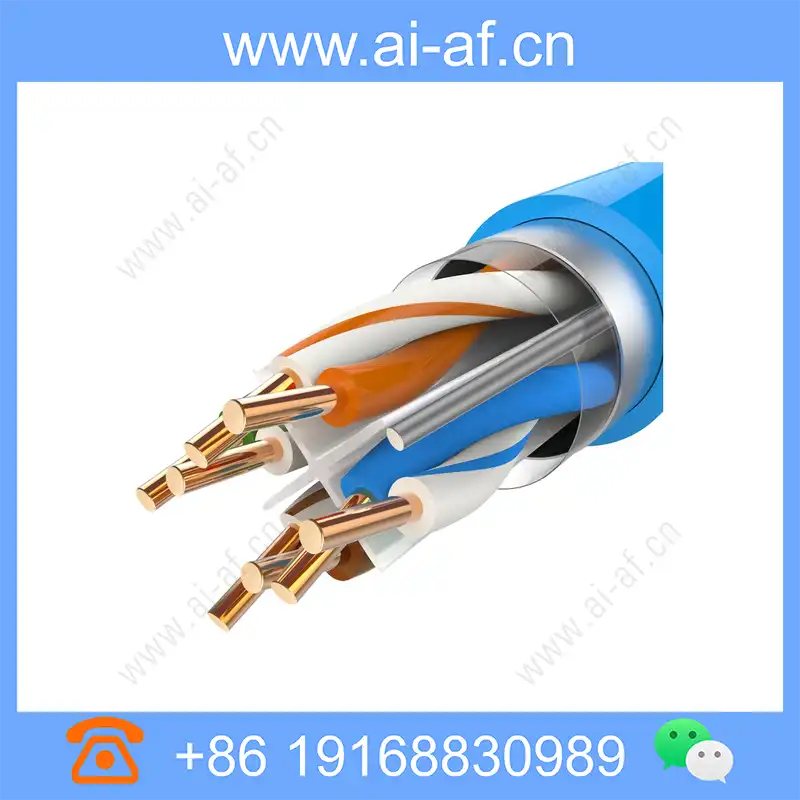

| other | Cross: Yes Torn rope: Yes Drain line: Yes Conductive aluminum foil: Yes |
| Electrical performance | Transmission rate: 1000Mbps Operating frequency: 250MHz Characteristic impedance: 100Ω DC copper resistance: maximum 93.8Ω/km Insulation impedance: greater than 5000M Ω·Km Electrical strength: 1kVDC 1min without breakdown |
| Physical properties | Fire rating: None Tensile strength: ≥13.8MPa Elongation: ≥125% |
| Storage conditions | Temperature: -10~60°C Humidity: 30%~80% Storage life: 20 years at room temperature |

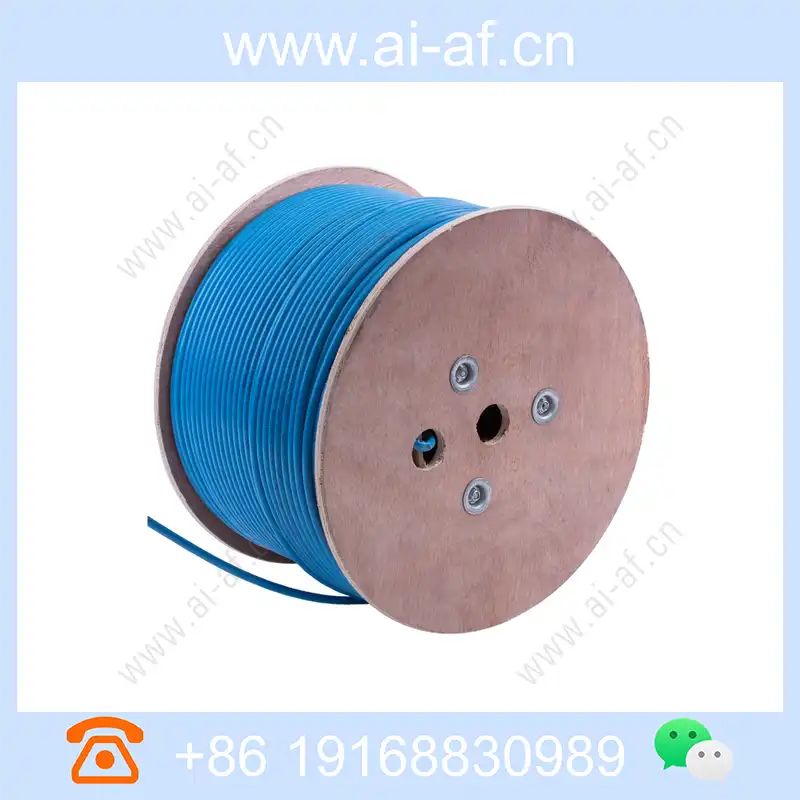

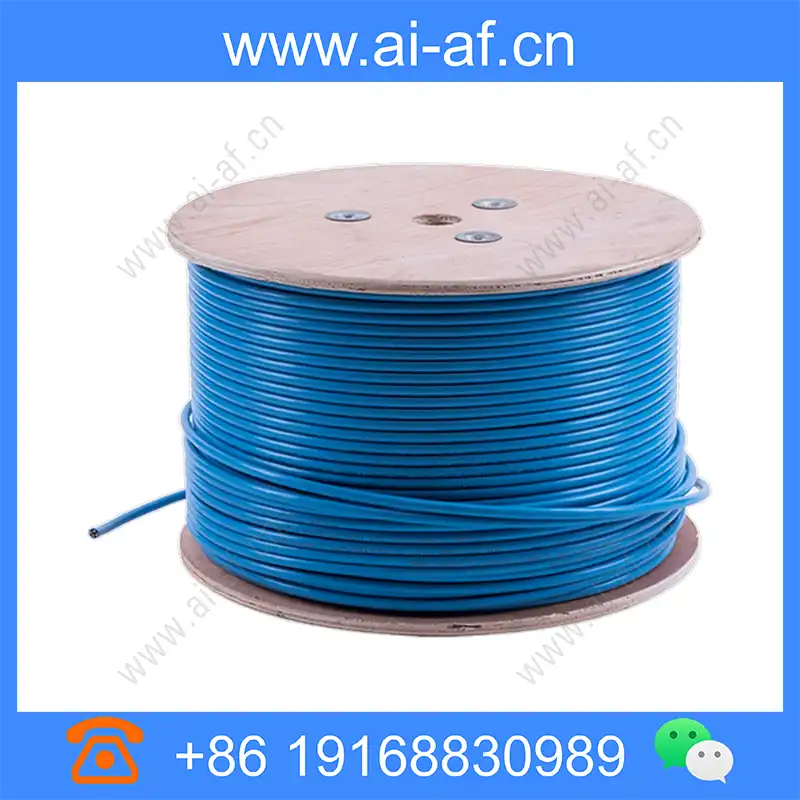

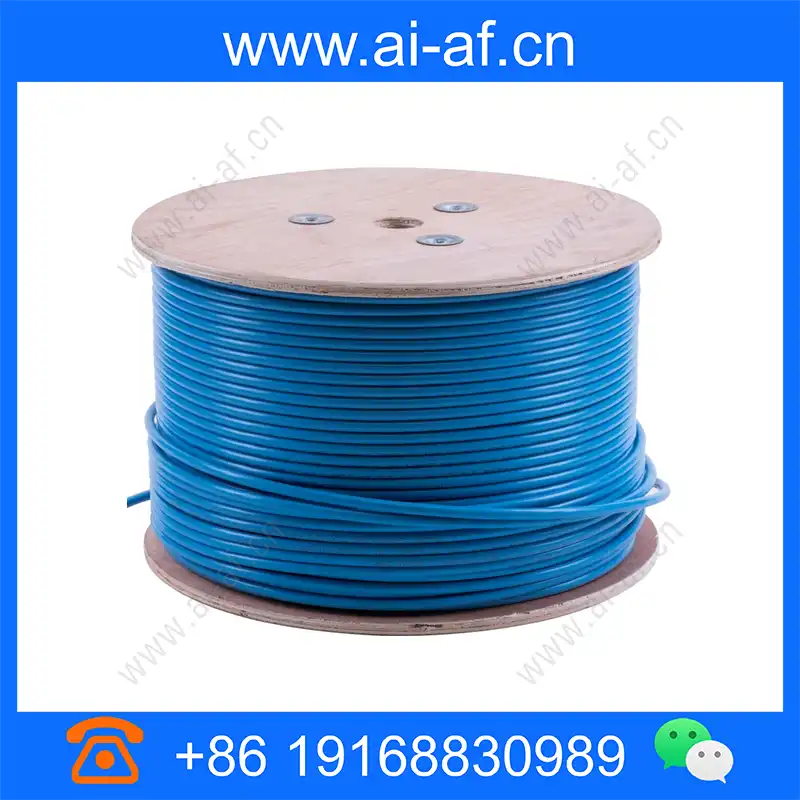

| package | Packing: wooden roller, roller diameter 370mm, height 220mm |
