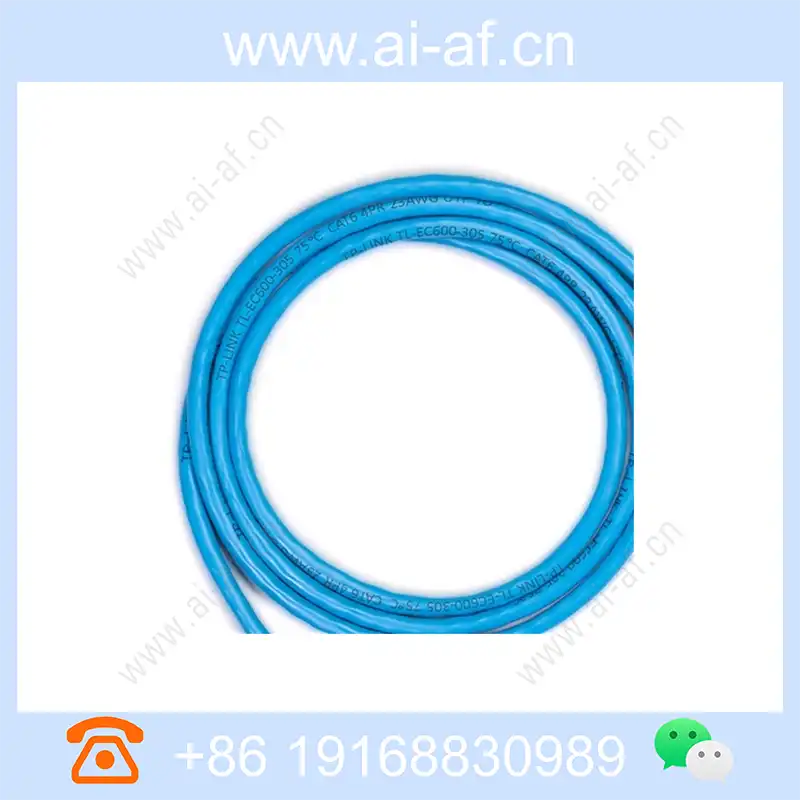

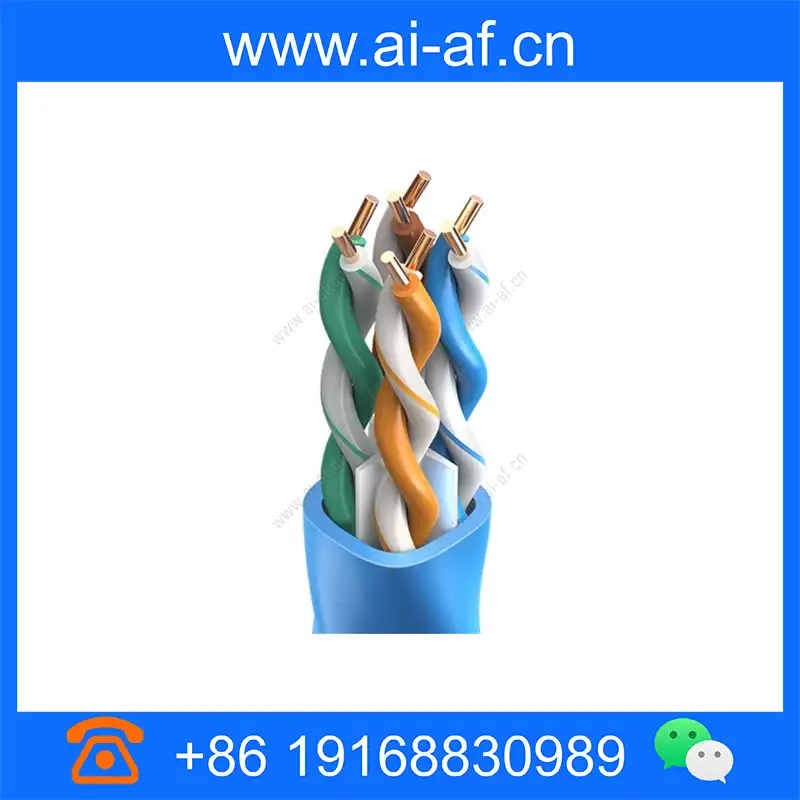

TP-LINK TL-EC600-305 black six types of unshielded network engineering line Gigabit 8 core 305 meters
standard International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 conductor Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.57mm AWG wire number: 23AWG Quantity: 4 to 8 wire Length: 305 meters Insulation Material: PE Thickness: 0.22mm Diameter: 1.03±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown Quilt Material: PVC Thickness: 0.55mm Outer diameter: 6.5±0.2mm Color: Blue other Cross: Yes Torn rope: Yes Electrical performance Transmission rate: 1000Mbps Working frequency: 250MHz Characteristic impedance: 100Ω DC copper resistance: Max 74Ω/km Insulation resistance: greater than 100M Ω·m Electric strength: 1kVDC 1min without breakdown Physical properties Fire
Technical Specifications
| Property Description | Property Value |
|---|---|
| standard | International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 |

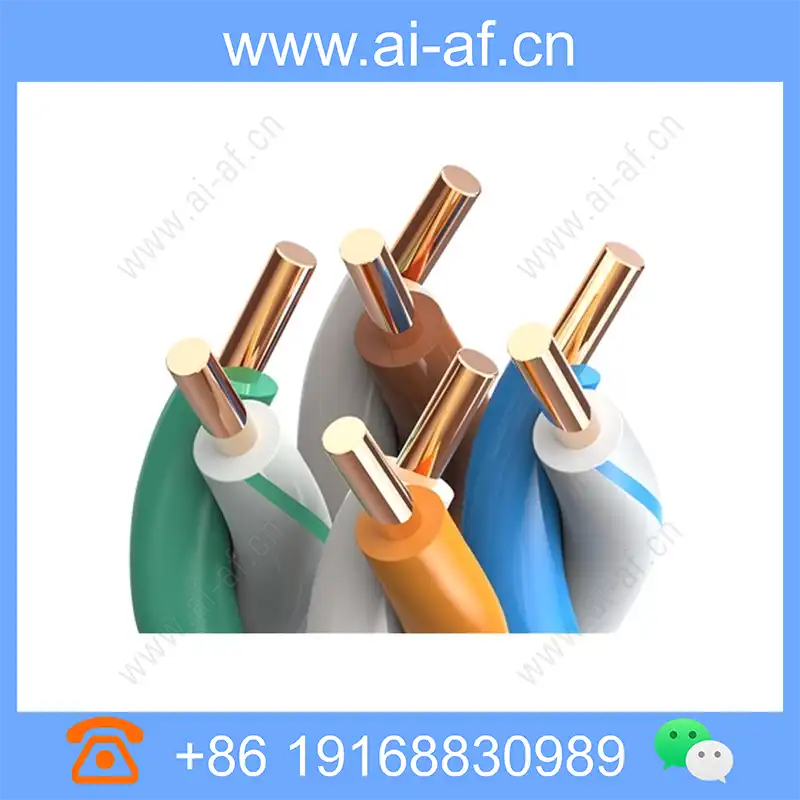

| conductor | Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.57mm AWG wire number: 23AWG Quantity: 4 to 8 wire Length: 305 meters |

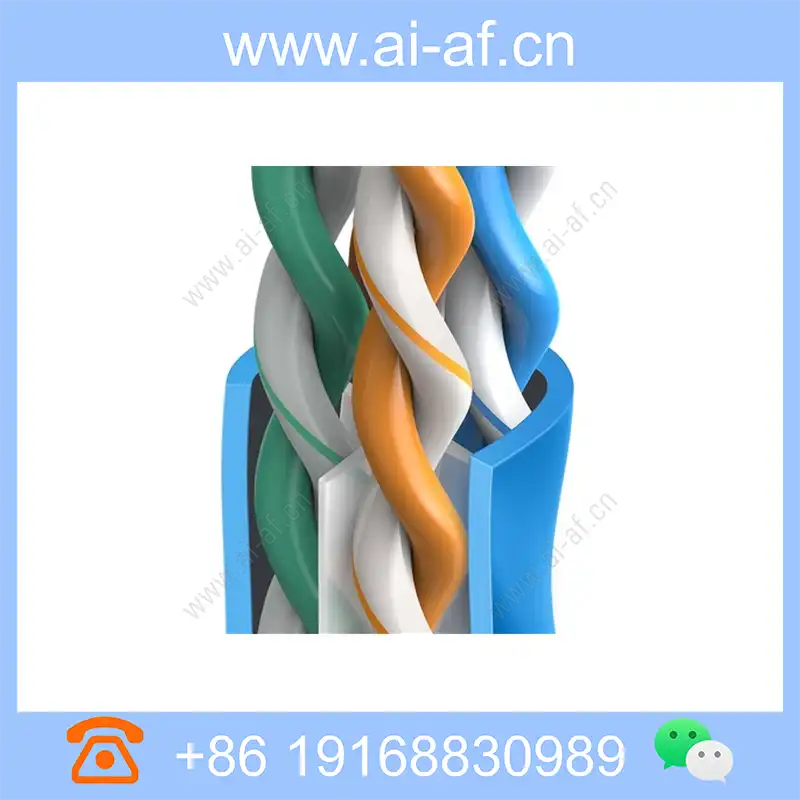

| Insulation | Material: PE Thickness: 0.22mm Diameter: 1.03±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown |
| Quilt | Material: PVC Thickness: 0.55mm Outer diameter: 6.5±0.2mm Color: Blue |
| other | Cross: Yes Torn rope: Yes |
| Electrical performance | Transmission rate: 1000Mbps Working frequency: 250MHz Characteristic impedance: 100Ω DC copper resistance: Max 74Ω/km Insulation resistance: greater than 100M Ω·m Electric strength: 1kVDC 1min without breakdown |
| Physical properties | Fire rating: VW-1 Tensile strength: ≥1.05 kg/mm² Elongation: ≥100% |
| Storage conditions | Temperature: -10~60°C Humidity: 30%~80% Storage life: 20 years at room temperature |

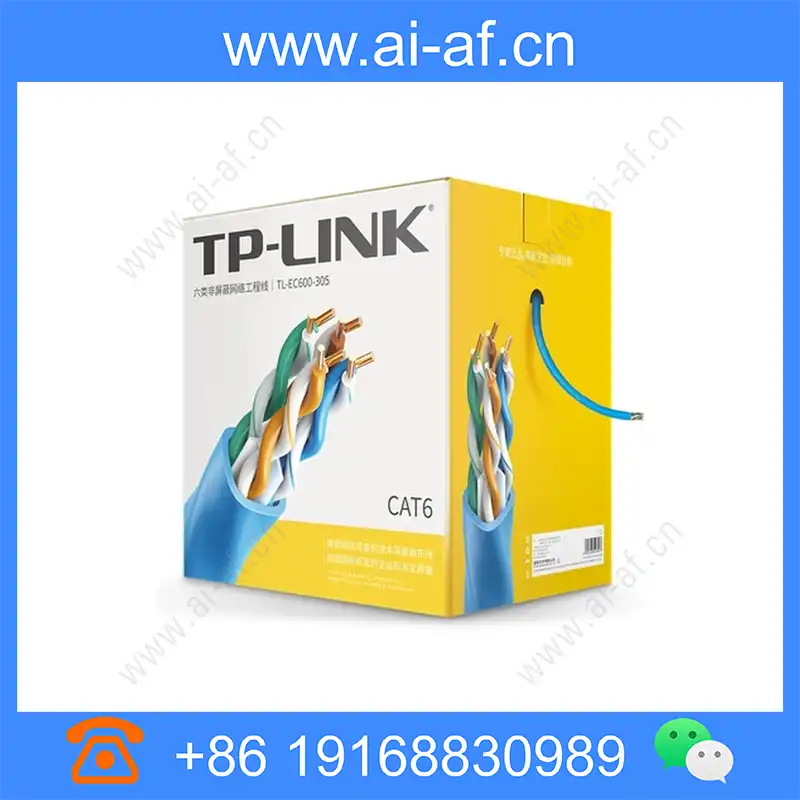

| package | Packing form: carton Internal structure: roller type, direct extraction of outlet hole Dimensions (L*W*H): 296*332*363 |
