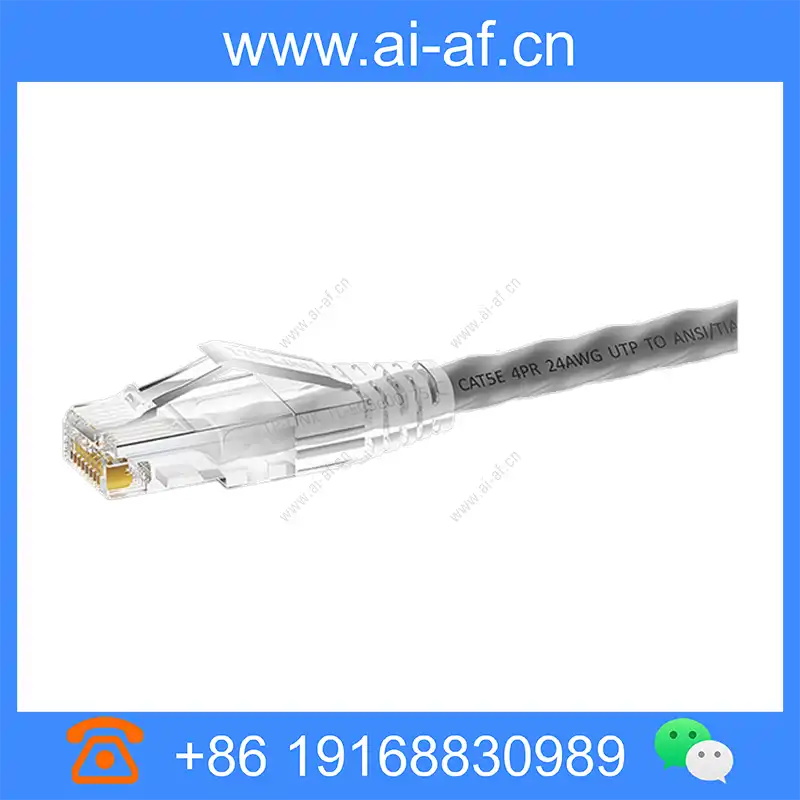

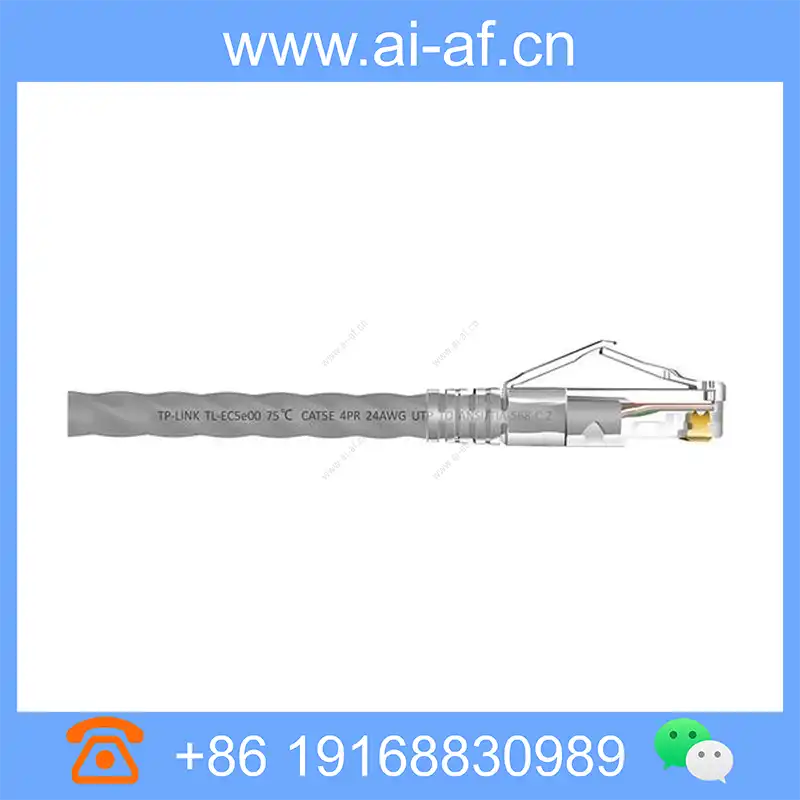

TP-LINK TL-EC5E00-1(ash) Cat 5e Unshielded Network Jumpers 1m Gray
standard International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 conductor Material: Oxygen-free copper Structure: 7 strands Stranded single strand diameter: ≥0.2mm AWG wire number: 24AWG Quantity: 4 pairs of 8 wires Length: 0.5m, 1m, 2m, 3m, 5m Insulation Material: PE Thickness: 0.18mm Diameter: 0.97±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown Quilt Material: PVC Thickness: 0.55mm Outer diameter: 5.5±0.2mm Color: gray, black, blue Crystal Head Material: new PC structure: main body + protective sleeve Reed: 8P8C, two-prong structure Reed material: phosphor bronze Gold-plated thickness: 50u〃 Fire rating: V0 other Cross: None Tear Rope: None Electrical performance Transmission rate: 1000Mbps
Technical Specifications
| Property Description | Property Value |
|---|---|
| standard | International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 |

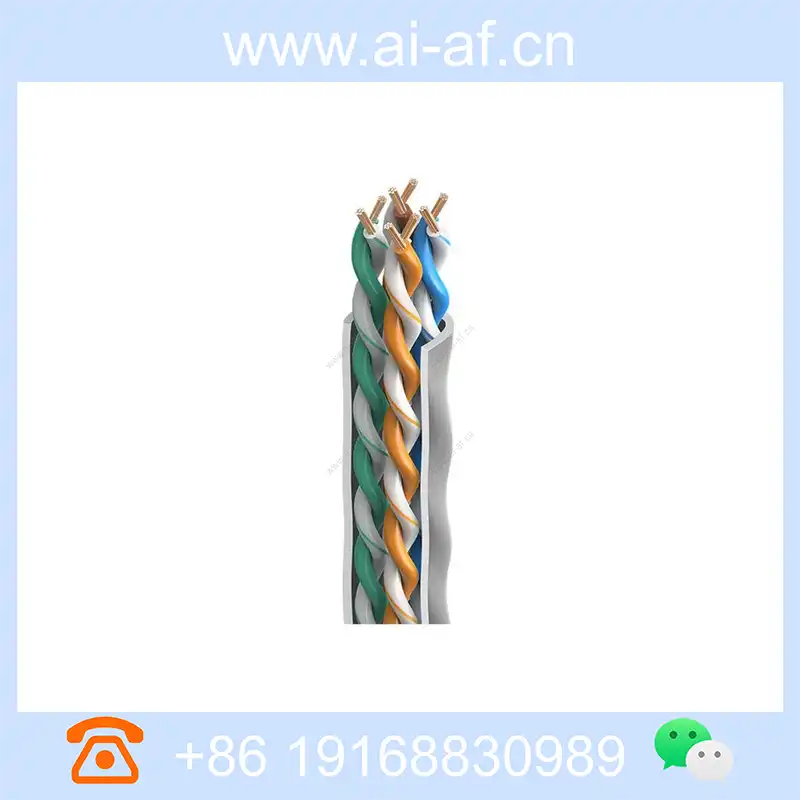

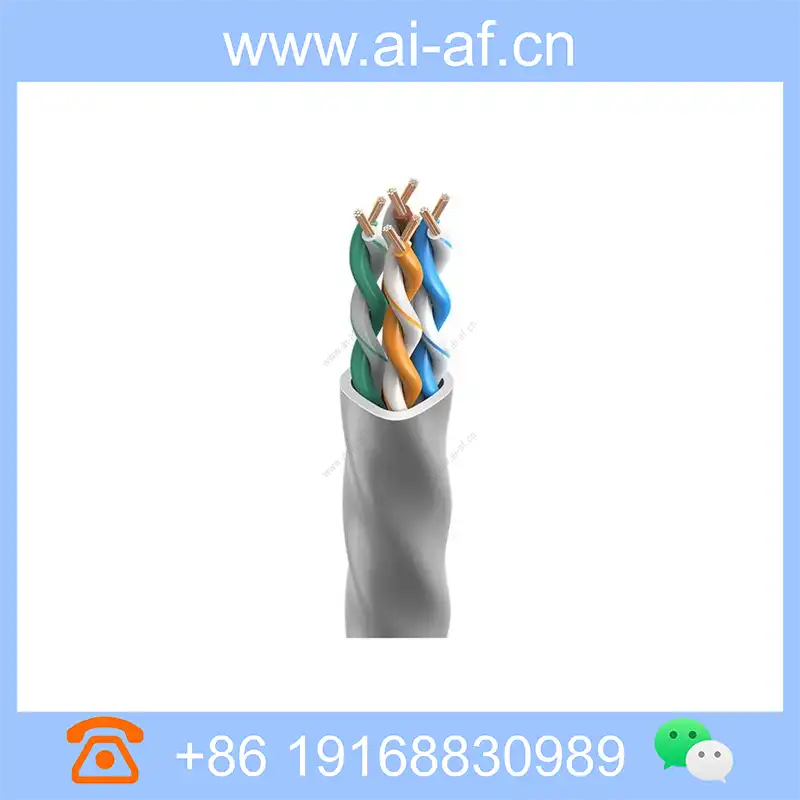

| conductor | Material: Oxygen-free copper Structure: 7 strands Stranded single strand diameter: ≥0.2mm AWG wire number: 24AWG Quantity: 4 pairs of 8 wires Length: 0.5m, 1m, 2m, 3m, 5m |
| Insulation | Material: PE Thickness: 0.18mm Diameter: 0.97±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown |
| Quilt | Material: PVC Thickness: 0.55mm Outer diameter: 5.5±0.2mm Color: gray, black, blue |

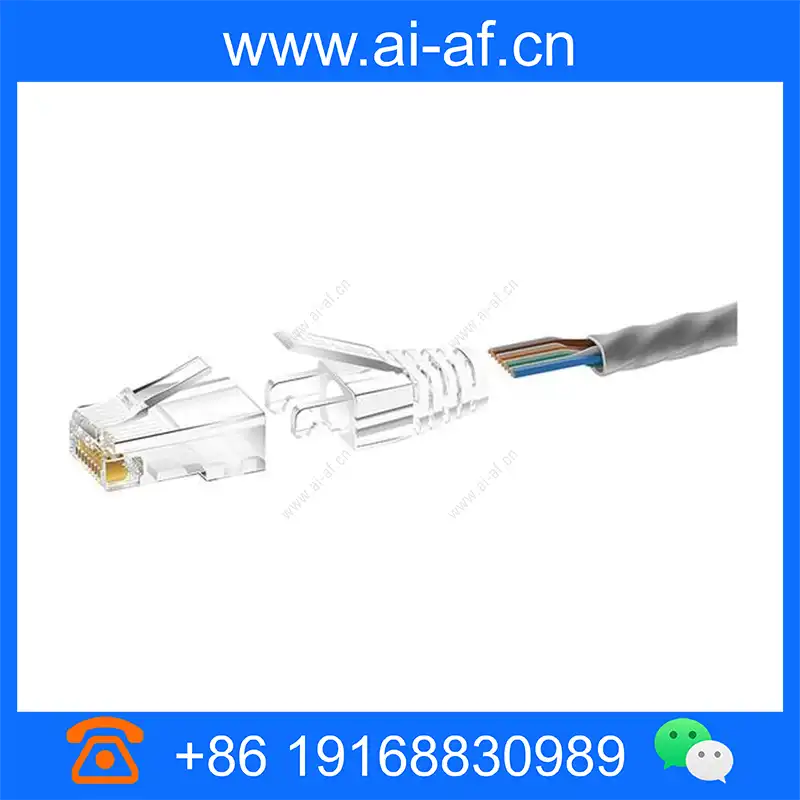

| Crystal Head | Material: new PC structure: main body + protective sleeve Reed: 8P8C, two-prong structure Reed material: phosphor bronze Gold-plated thickness: 50u〃 Fire rating: V0 |
| other | Cross: None Tear Rope: None |
| Electrical performance | Transmission rate: 1000Mbps Operating frequency: 100MHz Characteristic impedance: 100Ω DC copper resistance: maximum 89 Ω/km Insulation resistance: greater than 100M Ω·m Electrical strength: 1kVDC 1min without breakdown |
| Physical properties | Fire rating: VW-1 Tensile strength: ≥1.05 kg/mm² Elongation: ≥100% |
| Storage conditions | Temperature: -10~60°C Humidity: 30%~80% Storage life: 20 years at room temperature |
