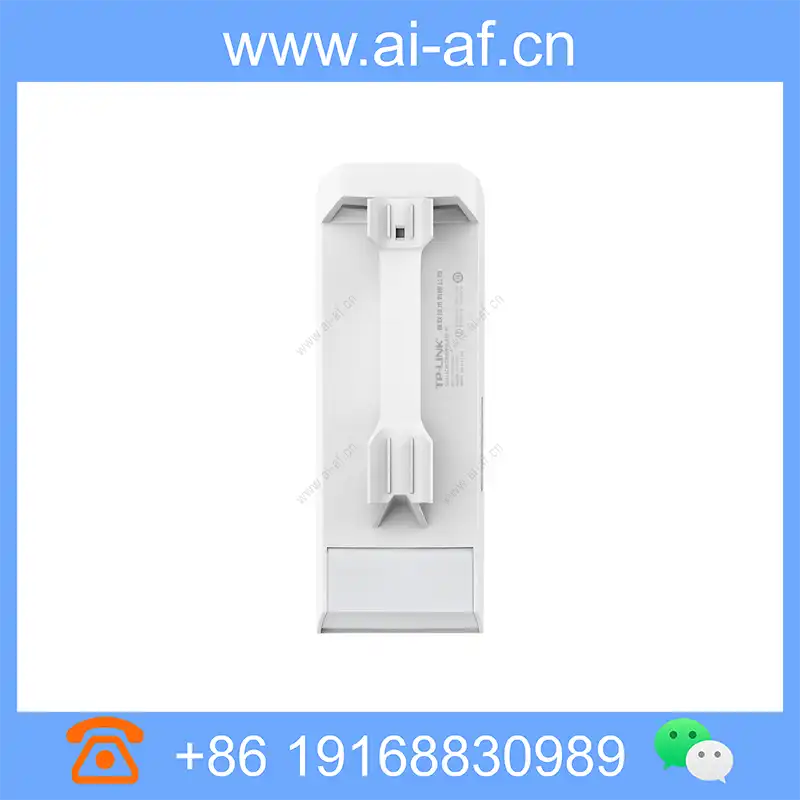

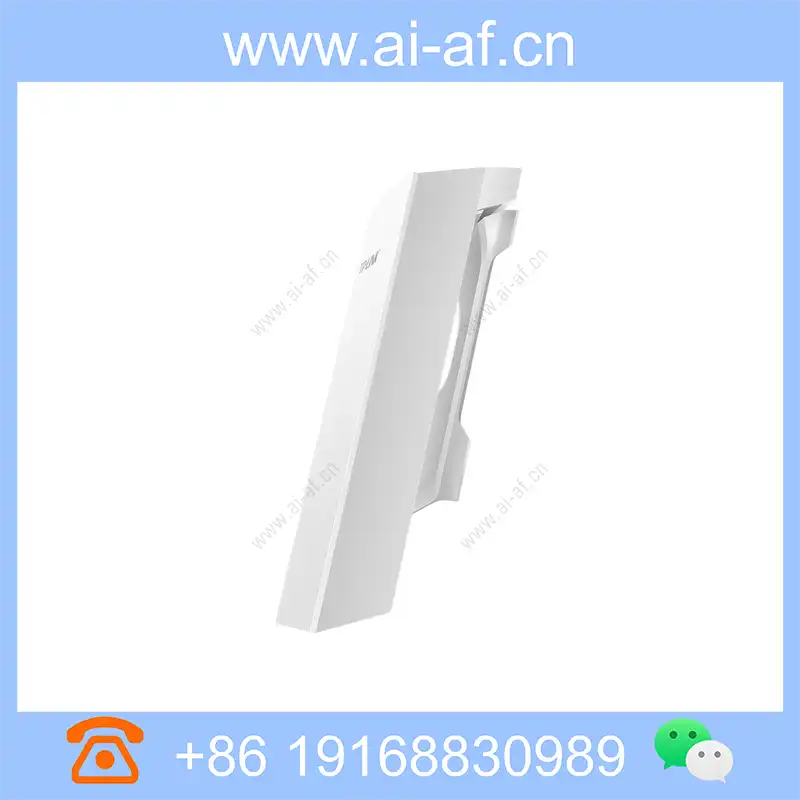

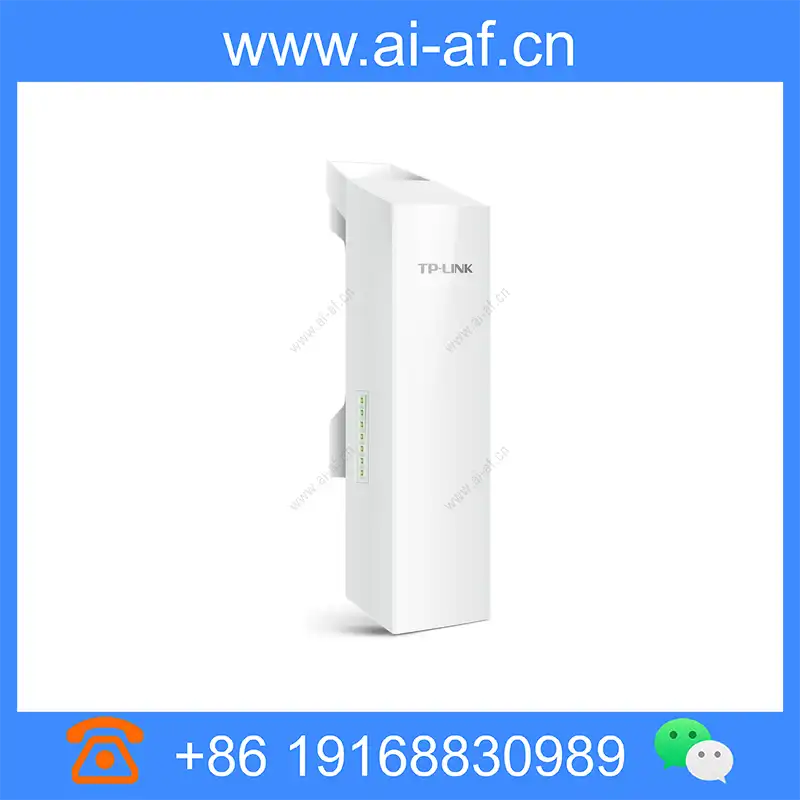

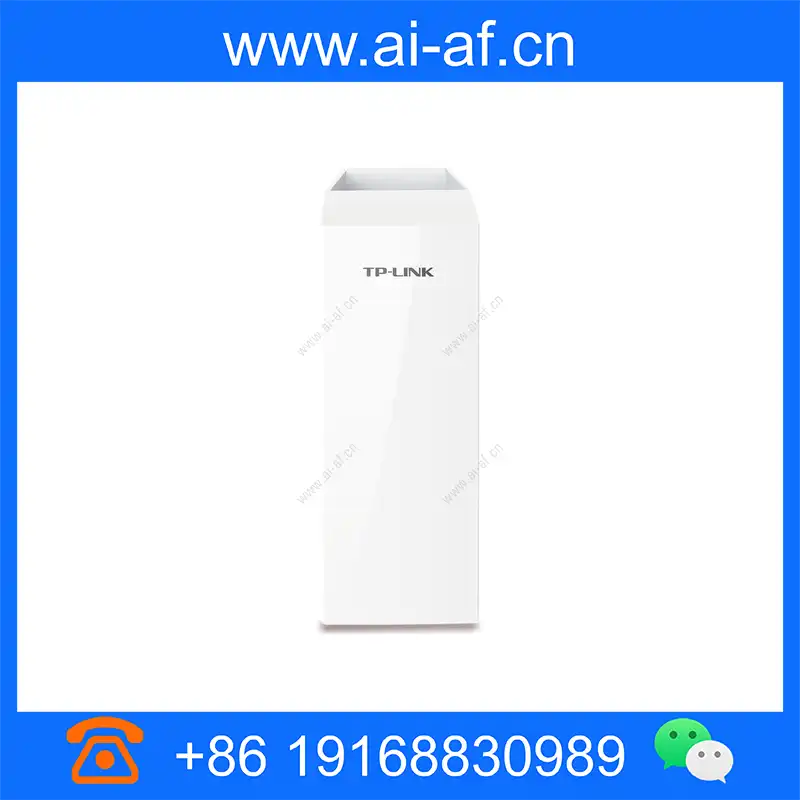

TP-LINK TL-CPE520G wireless CPE Gigabit single installed indoor and outdoor universal 15KM 5GHz 867M
Professional outdoor shell design, adapt to various harsh environments Wireless 11ac, 867Mbps wireless rate Full Gigabit port for better wireless performance Pure 5GHz frequency band, less interference, wireless transmission distance up to 15 kilometers The wireless transmission power is linearly adjustable, adjust the transmission distance according to the demand, and avoid the same frequency interference Product model TL-CPE520G Installation method Pole mounting wireless Working frequency band: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 867Mbps Wireless standard: IEEE 802.11b/g/n Transmit power 26dBm antenna Built-in 13dBi dual-polarized antenna Maximum wireless transmission distance (no interference) 15 km Power supply 24V / 0.7A Passive PoE power supply, power supply distance up to
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-CPE520G |
| Installation method | Pole mounting |
| wireless | Working frequency band: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 867Mbps Wireless standard: IEEE 802.11b/g/n |
| Transmit power | 26dBm |
| antenna | Built-in 13dBi dual-polarized antenna |
| Maximum wireless transmission distance (no interference) | 15 km |
| Power supply | 24V / 0.7A Passive PoE power supply, power supply distance up to 100M |

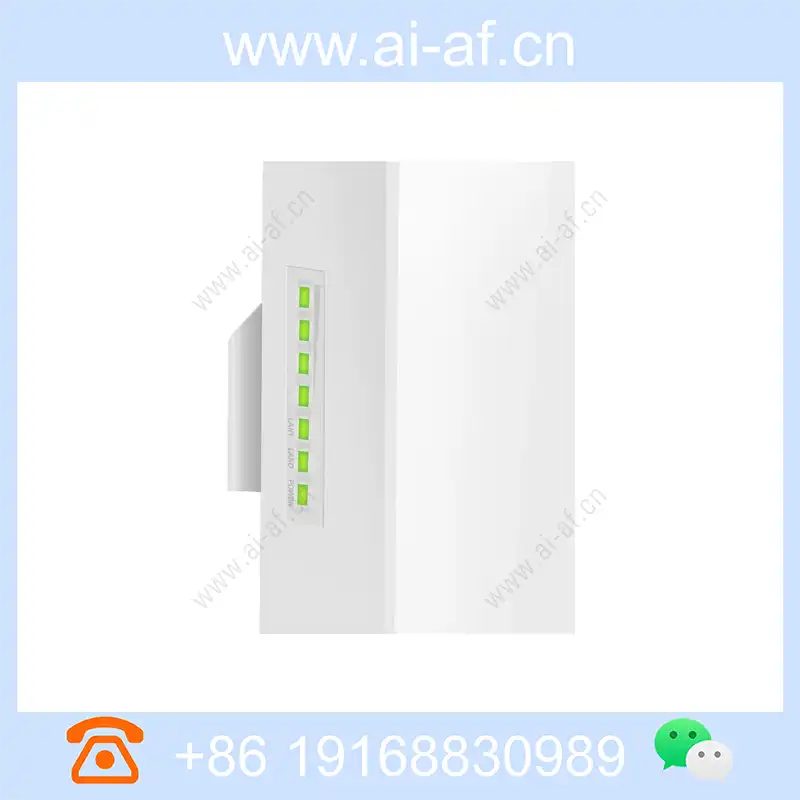

| Indicator light | PWR, LAN0, LAN1, 4 signal strength indicators |
| Antenna coverage angle | Horizontal Direction: 45° Vertical Direction: 30° |
| Product Size | 224x79x60(mm) |
| Use environment | Operating temperature: -30°C~70°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Dust and water resistance | ASA engineering plastic case, IP55 dustproof and waterproof |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: static IP, dynamic IP |
| wireless setting | 802.11b/g/n mode automatic channel selection, transmission power adjustment, wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encrypted SSID broadcast/no WDS channel bandwidth selection advanced settings: Beacon time slot, RTS Threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | HTTP/HTTPS WEB management System log Ping watchdog time and NTP settings |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU occupancy rate Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute |
| System Optimization | Hardware watchdog IGMP Snooping optimization |
