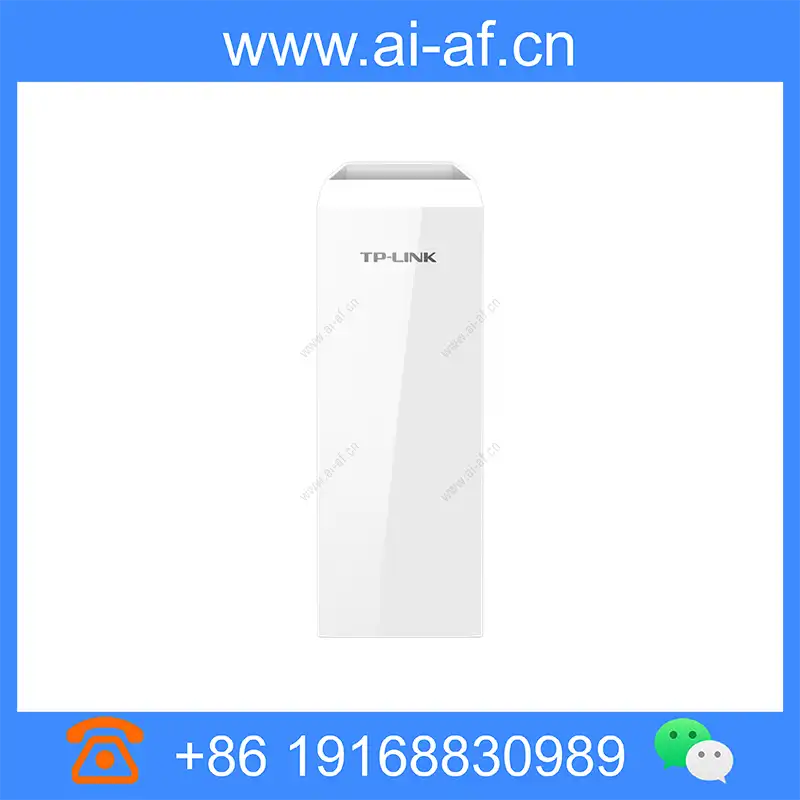

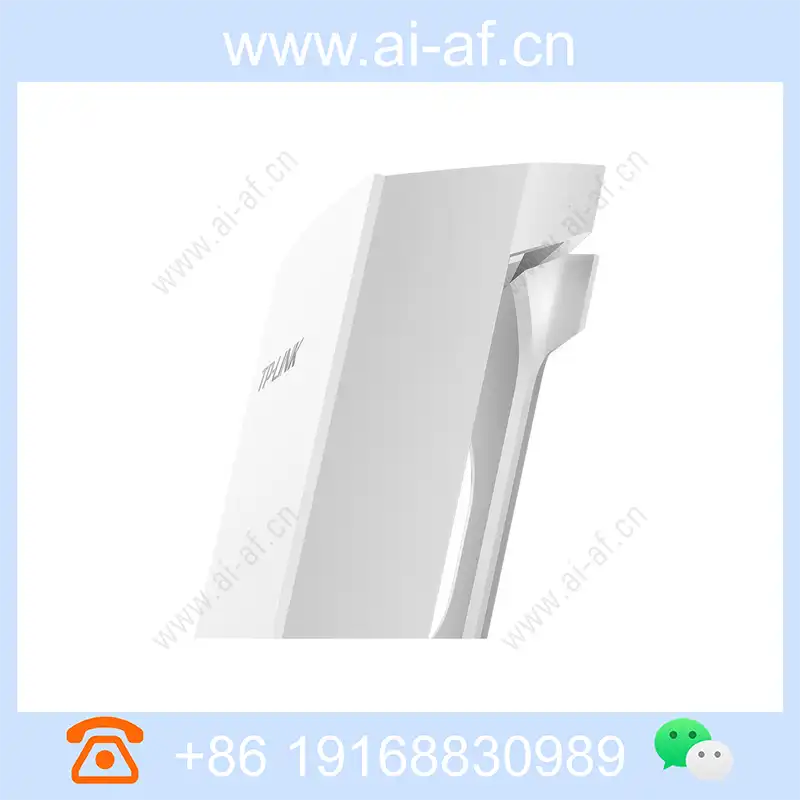

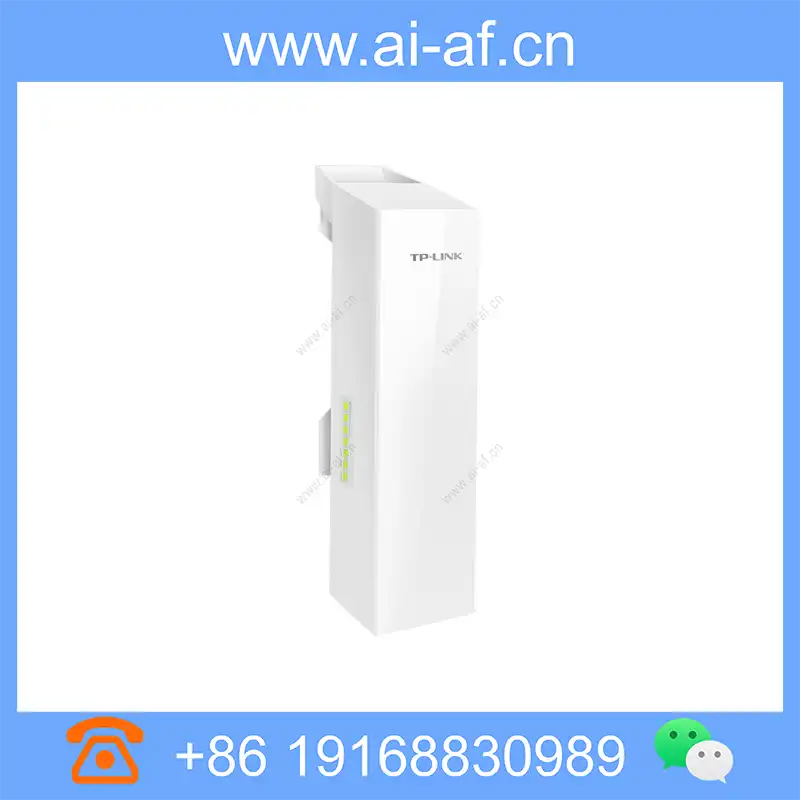

TP-LINK TL-CPE500G wireless CPE Gigabit single installed indoor and outdoor universal 5KM 5GHz 867M
Professional outdoor shell design, adapt to various harsh environments 867M wireless, built-in high-gain 13dBi dual-polarized antenna, providing high-performance wireless Pure 5GHz frequency band, less interference, wireless transmission distance up to 5 kilometers Full Gigabit port for better wireless performance Installation method Pole mounting Wireless standard IEEE 802.11a/n/ac Wireless rate 867Mbps wireless Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz Transmit power 20dBm antenna Built-in 13dBi dual-polarized antenna Maximum wireless transmission distance (no interference) 5 KM interface 1 10/100/1000Mbps RJ45 port (LAN0/POE) 1 10/100/1000Mbps RJ45 port (LAN1) Power supply 12V / 1A Passive PoE power supply, power supply distance up to 55M Indicator light PWR, LAN0, LAN1
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|

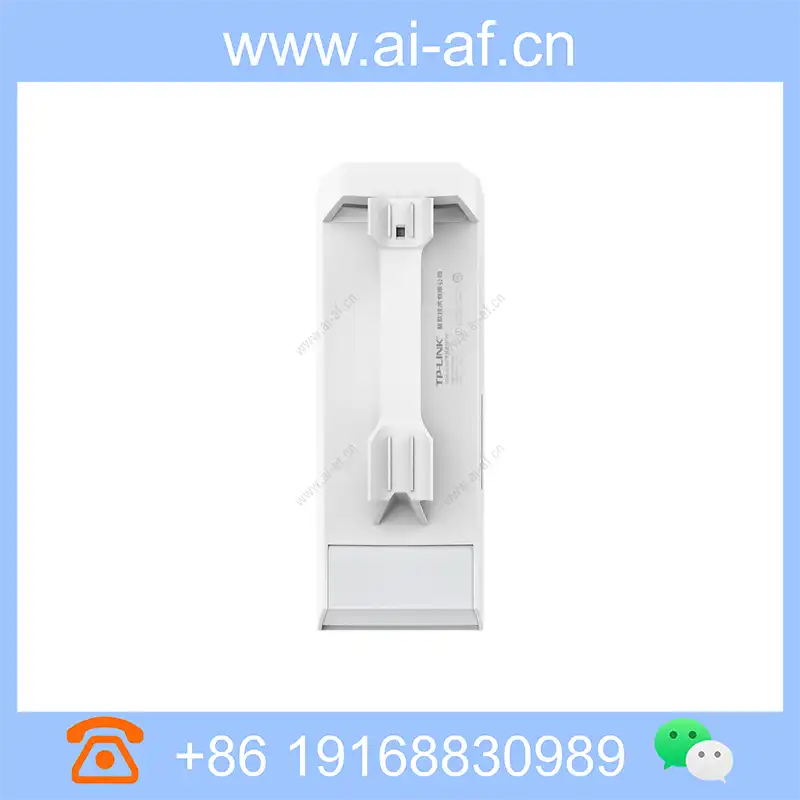

| Installation method | Pole mounting |
| Wireless standard | IEEE 802.11a/n/ac |
| Wireless rate | 867Mbps |
| wireless | Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz |
| Transmit power | 20dBm |
| antenna | Built-in 13dBi dual-polarized antenna |
| Maximum wireless transmission distance (no interference) | 5 KM |
| interface | 1 10/100/1000Mbps RJ45 port (LAN0/POE) 1 10/100/1000Mbps RJ45 port (LAN1) |
| Power supply | 12V / 1A Passive PoE power supply, power supply distance up to 55M |
| Indicator light | PWR, LAN0, LAN1, 4 signal strength indicators |
| Antenna coverage angle | Horizontal Direction: 45° Vertical Direction: 30° |
| Product Size | 224x79x60(mm) |
| Use environment | Operating temperature: -30°C~70°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Dust and water resistance | ASA engineering plastic case, IP55 dustproof and waterproof |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: static IP, dynamic IP |
| wireless setting | 802.11a/n/ac mode automatic channel selection Transmit power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encrypted SSID broadcast/no display distance setting channel bandwidth selection advanced setting: Beacon time slot , RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | HTTP/HTTPS WEB management System log Time and NTP settings Ping watchdog |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU usage, memory usage Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute |
| System Optimization | IGMP Snooping optimization hardware watchdog |
