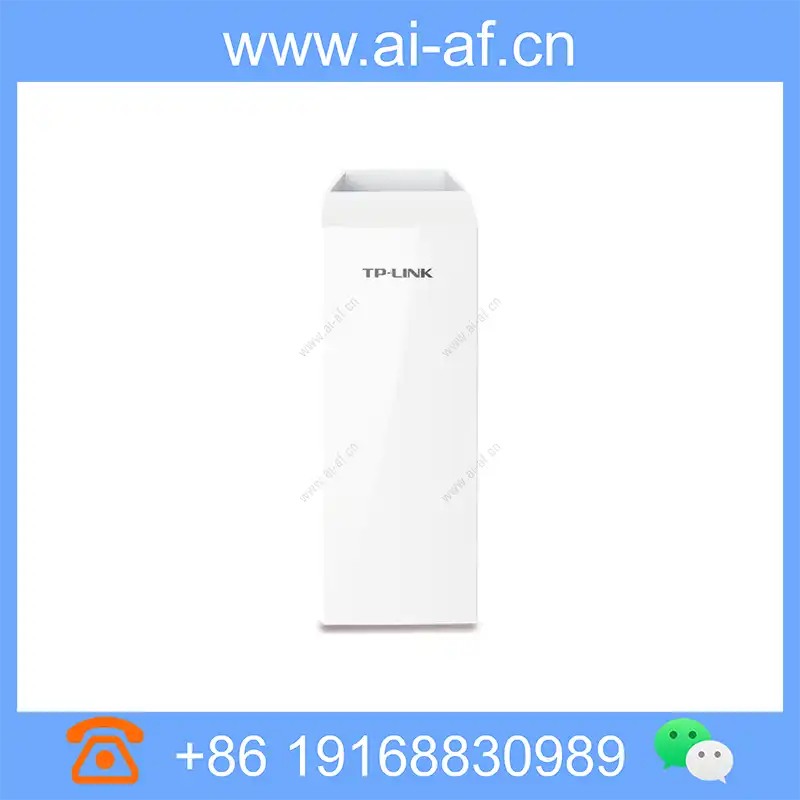

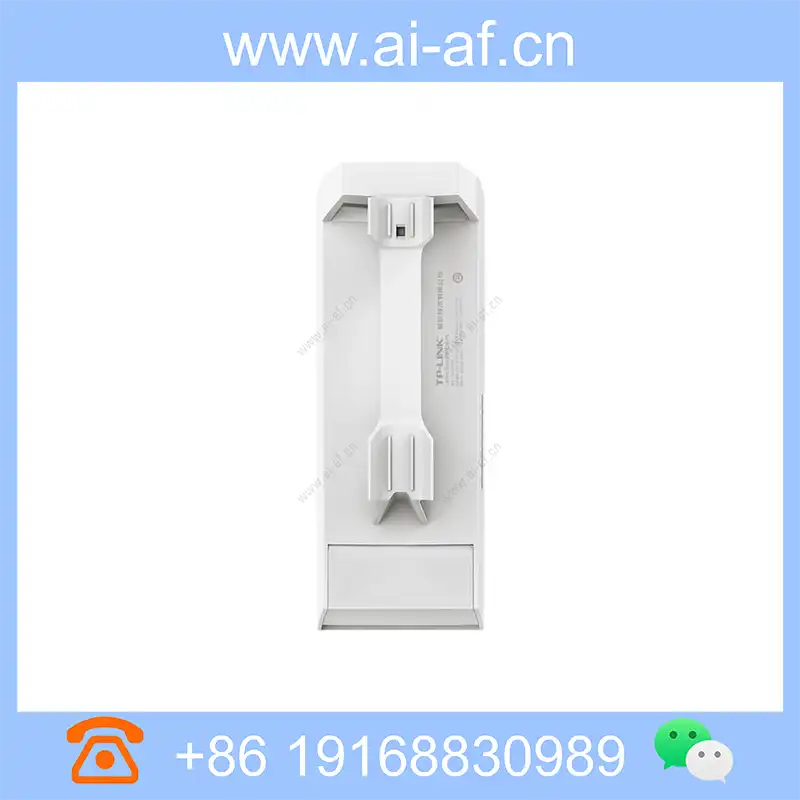

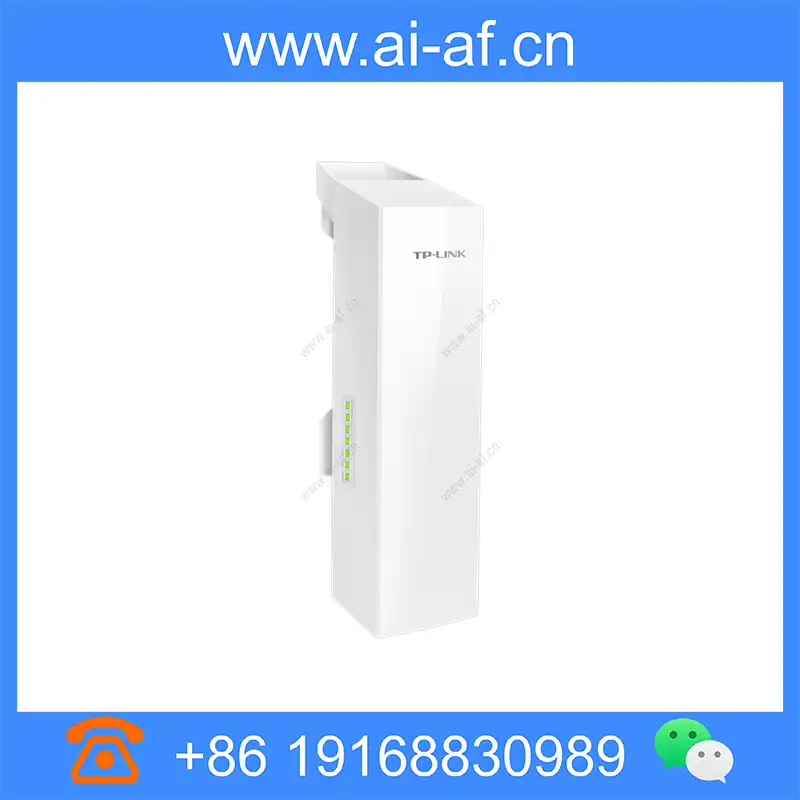

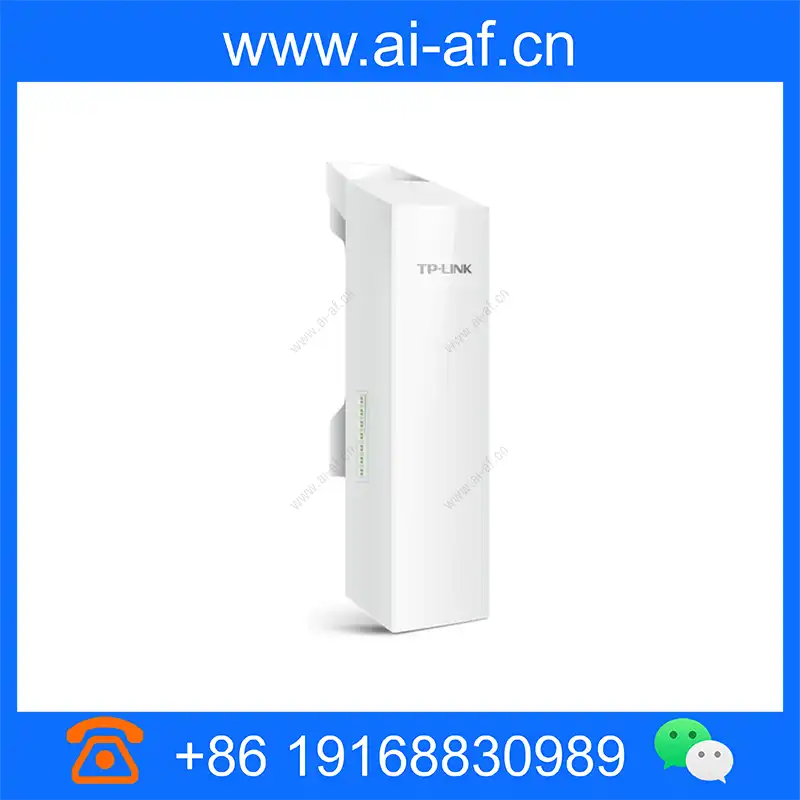

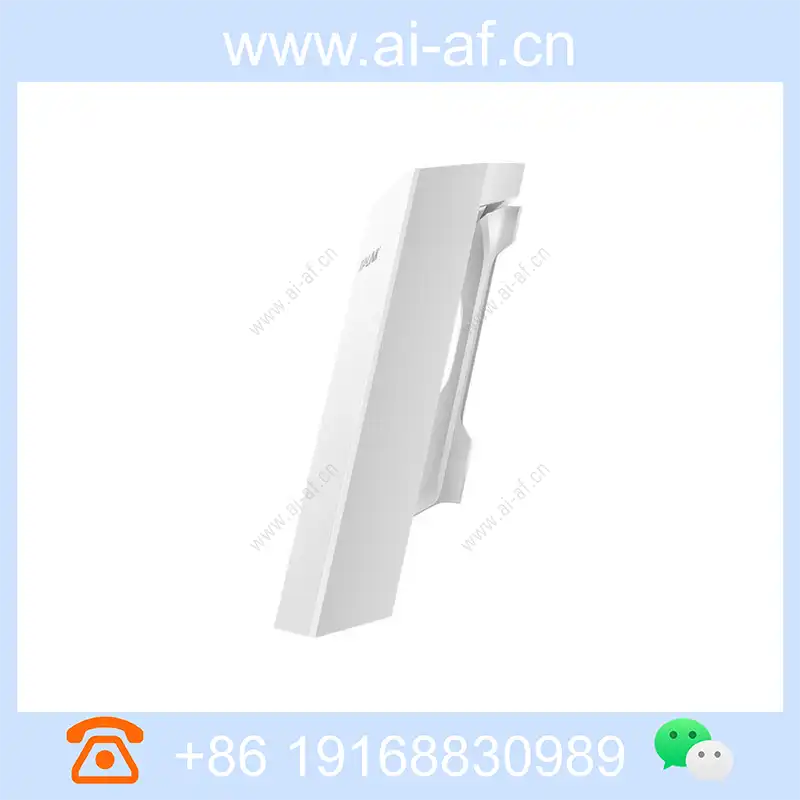

TP-LINK TL-CPE211 Wireless CPE single installed indoor and outdoor universal 3KM 2.4GHz 300Mbps
Professional outdoor shell design, adapt to various harsh environments 300M wireless, 4 100M ports Built-in high-gain dual-polarized antenna to provide high-performance wireless WEB management system provides abundant software functions Pharos Control centralized management software for unified management of all equipment Wireless standard IEEE 802.11b/g/n Wireless working mode AP、Client Network settings LAN port connection: Static IP, DHCP Server wireless setting 802.11b/g/n mode automatic channel selection and transmission power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128/152 bit WEP encryption, SSID broadcast/no distance setting , ACK timeout settings Advanced settings for wireless MAC address filtering: Beacon time slot, RTS threshold
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wireless standard | IEEE 802.11b/g/n |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: Static IP, DHCP Server |
| wireless setting | 802.11b/g/n mode automatic channel selection and transmission power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128/152 bit WEP encryption, SSID broadcast/no distance setting , ACK timeout settings Advanced settings for wireless MAC address filtering: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | Unified management by Pharos Control centralized management software HTTP/HTTPS WEB management System log Ping watchdog |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU occupancy rate, memory occupancy rate Status monitoring: throughput/wireless client/interface/ARP/routing/WAN/DHCP server rate test Ping |
| System Optimization | IGMP Snooping optimization, multicast proxy, hardware watchdog |
| Antenna coverage angle | Horizontal Direction: 65° Vertical Direction: 45° |
