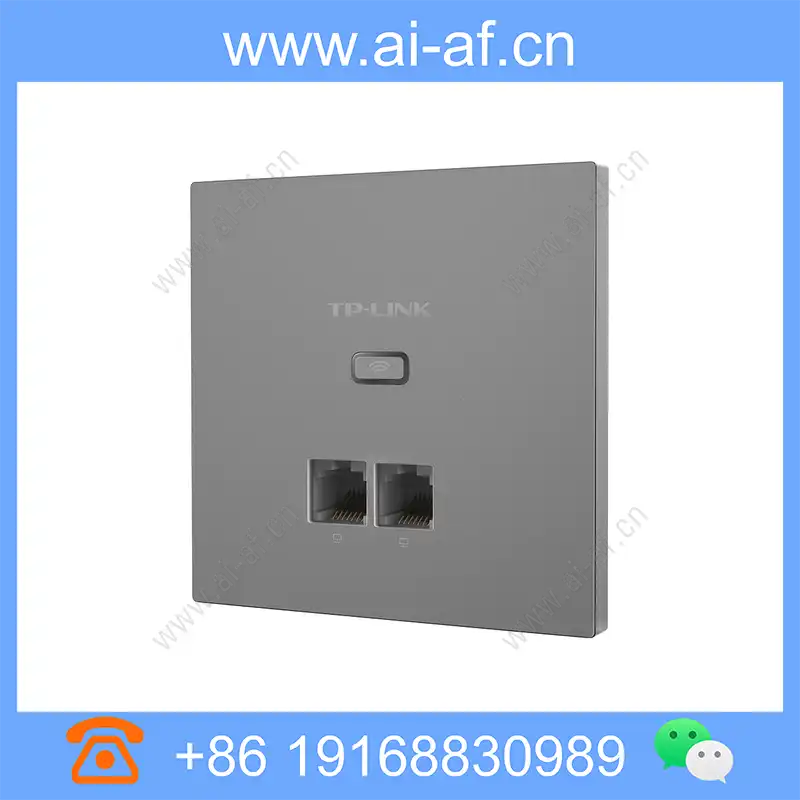

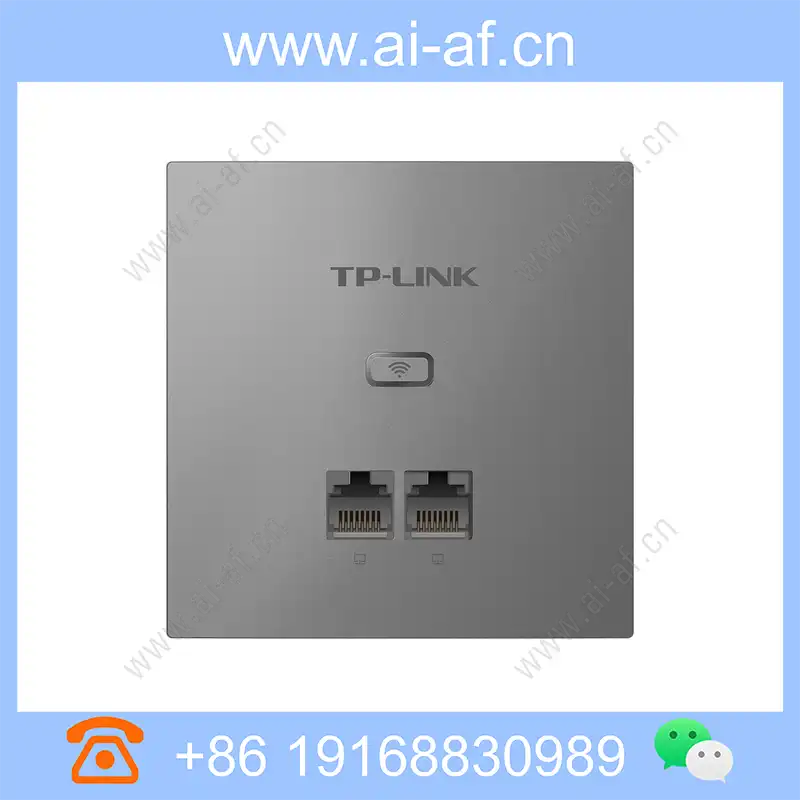

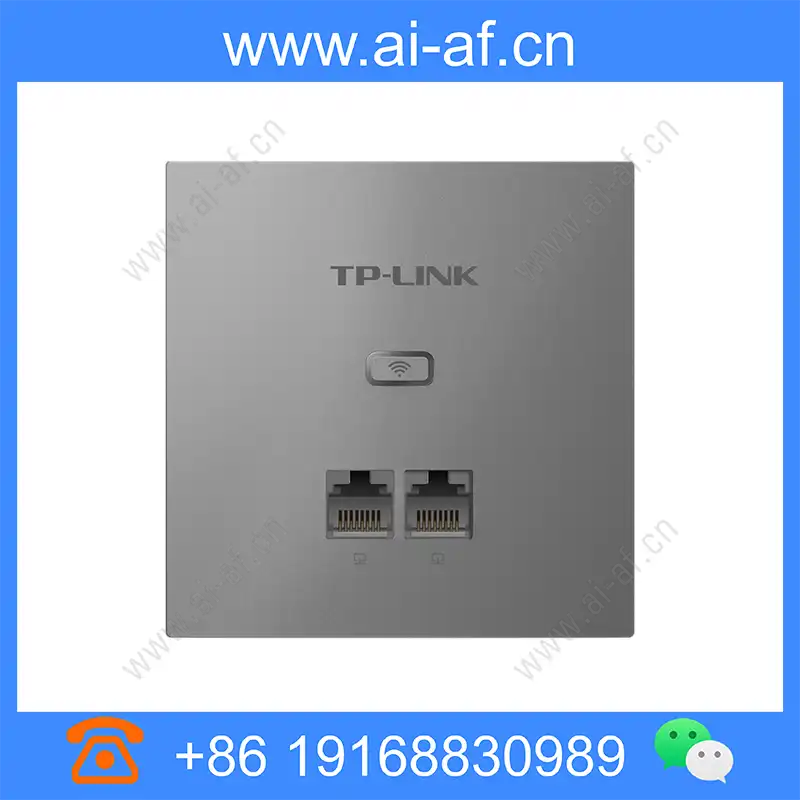

TP-LINK TL-AP456GI-PoE Thin Deep Space Silver 2.4GHz 450M Gigabit Wireless Panel AP
11N wireless technology, 450Mbps wireless rate 86 type panel design, slim shell, stylish appearance Deep-space silver shell, atmospheric appearance, more suitable for home environment Dual network port design to meet wired demand Gigabit wired port, can better play wireless performance WiFi/LED lights can be turned off 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments Support TP-LINK business cloud APP remote view / management Product model TL-AP456GI-PoE silver thin deep space section (square) Installation method Install directly into national standard 86 type network connection
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP456GI-PoE silver thin deep space section (square) |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*87.5*33mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps |

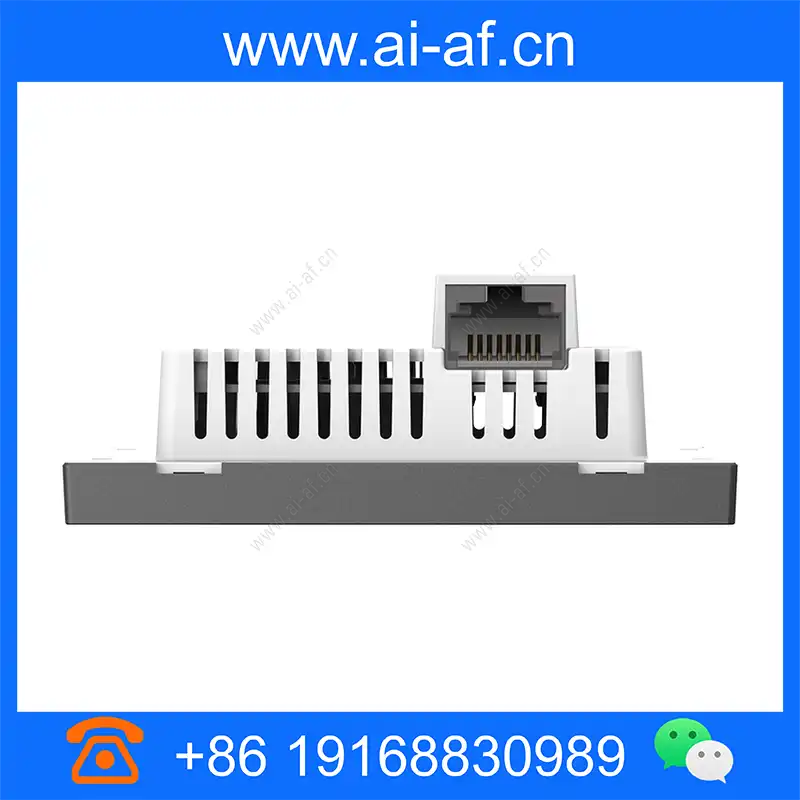

| port | Front: 2 10/100/1000M RJ45 ports Back: 1 10/100/1000M RJ45 ports |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 WiFi/LED multiplexing button 1 FAT/FIT mode toggle switch 1 Reset button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 5.7W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal equipment access: support to remove weak signal equipment: support |
| Maximum number of connectable clients | 50 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
