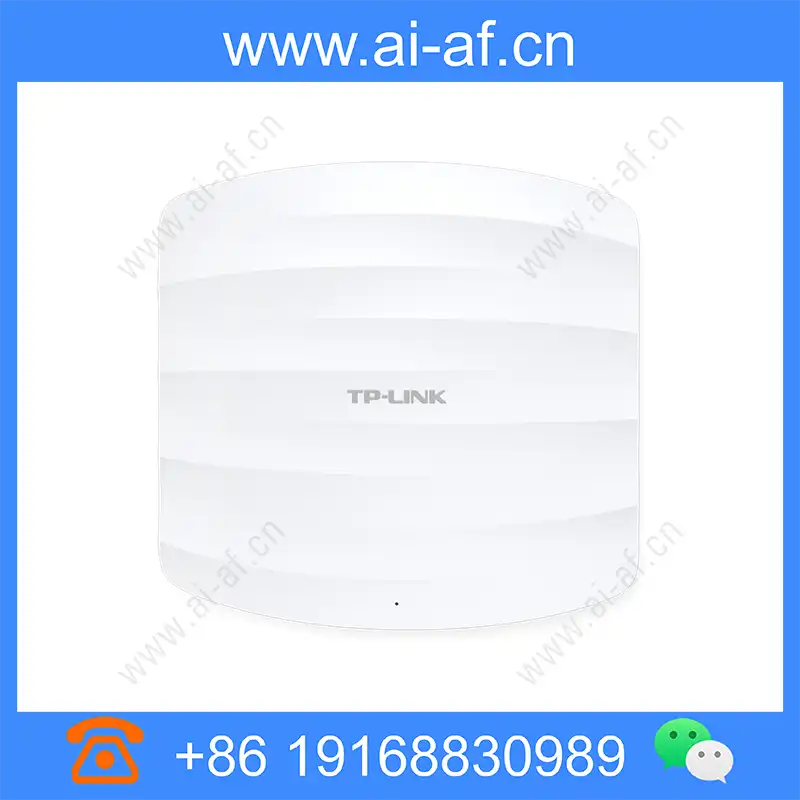

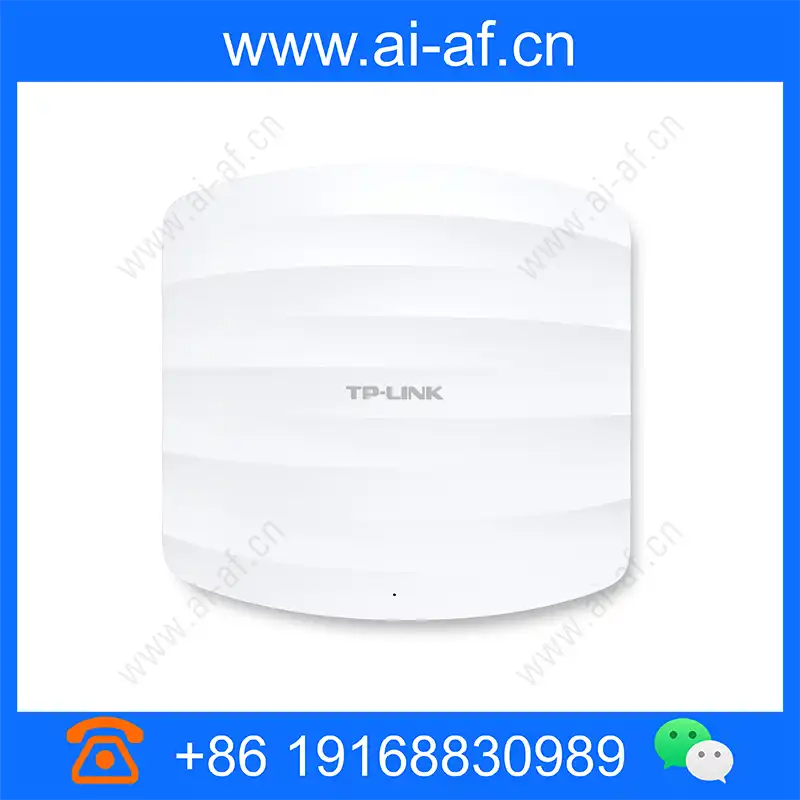

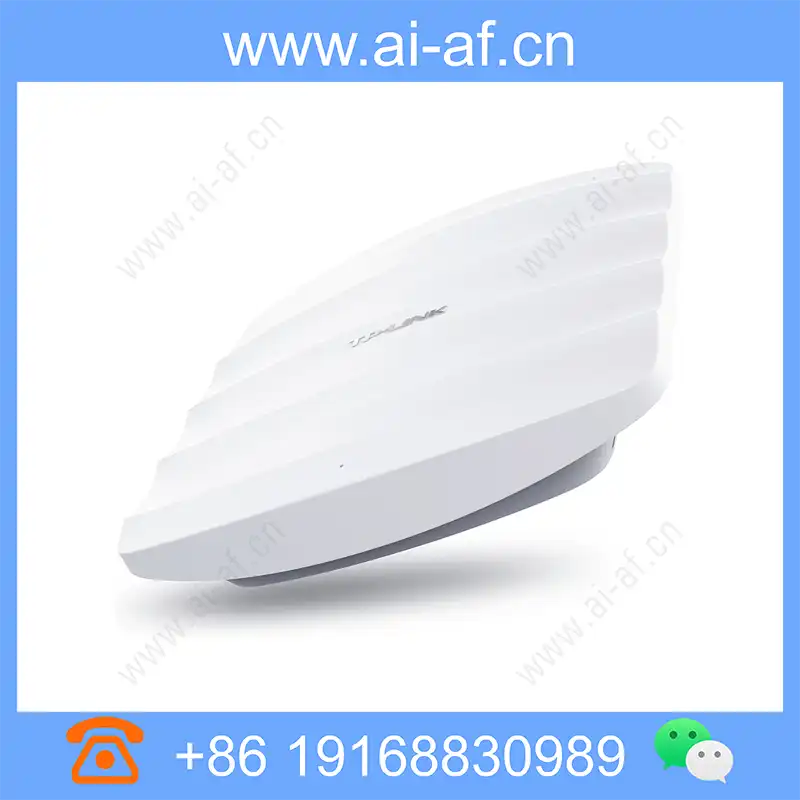

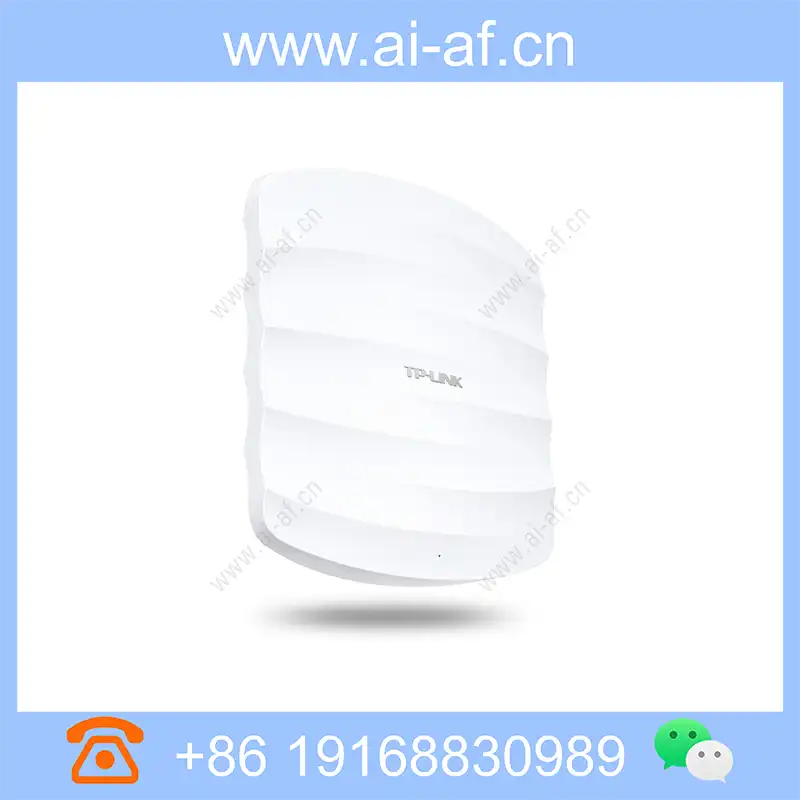

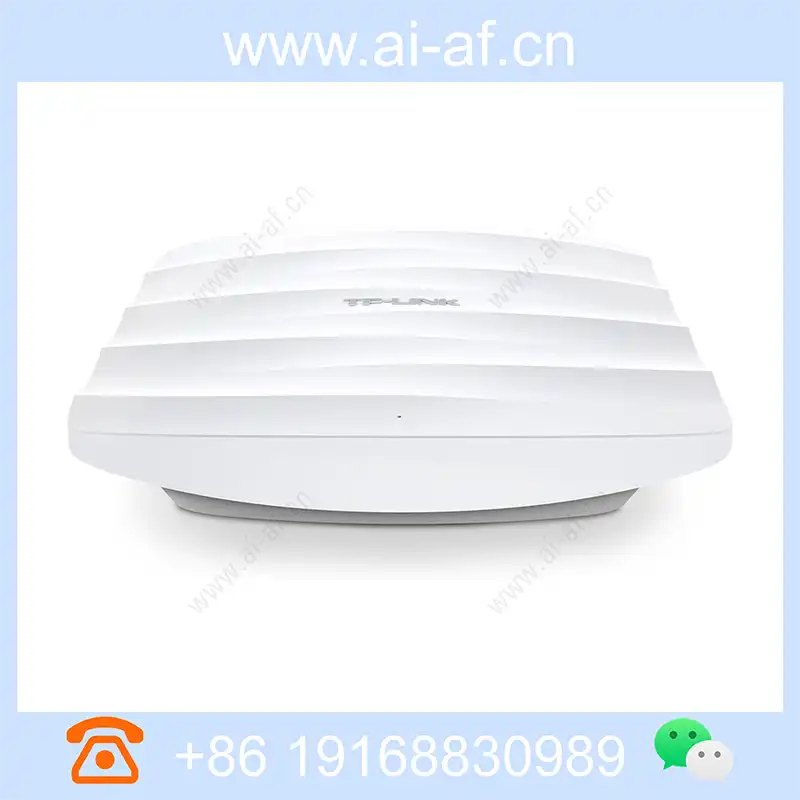

TP-LINK TL-AP453C-PoE 2.4GHz 450M single frequency wireless ceiling AP
11N wireless technology, 450Mbps wireless rate Small size, hidden design of network cable port, better adapt to various environments Ceiling/wall hanging, flexible and easy to install, 802.3af/at standard PoE power supply Fat and thin, choose different working modes in different environments The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Support 4 SSIDs (support Chinese SSID), easily divide the wireless network Prohibit and kick off weak signal clients to improve overall network performance Support TP-LINK business cloud APP remote view / management Product model TL-AP453C-PoE Installation method Ceiling / wall mounting size 135*131*31mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps port 1
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP453C-PoE |
| Installation method | Ceiling / wall mounting |
| size | 135*131*31mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps |
| port | 1 10/100M RJ45 port |
| Indicator light | One system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| power supply | 802.3af/at standard PoE power supply |
| Machine power consumption | 4.61W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 4 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation wireless MAC Address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal client access and kick out weak signal The client kicks out weak signal devices and prohibits weak signal devices from accessing: support |
| Maximum number of connectable clients | 50 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
