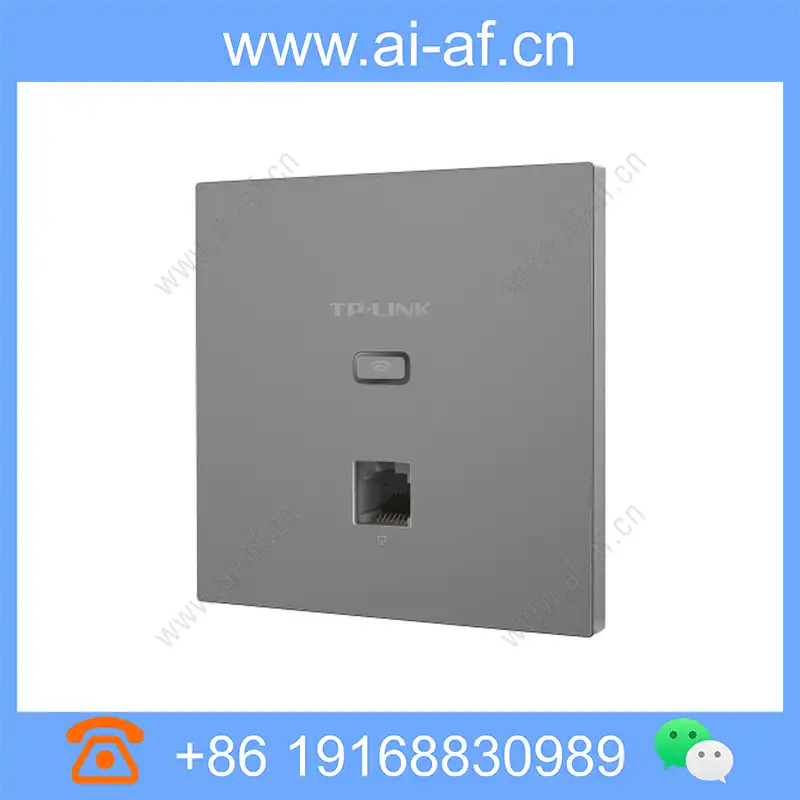

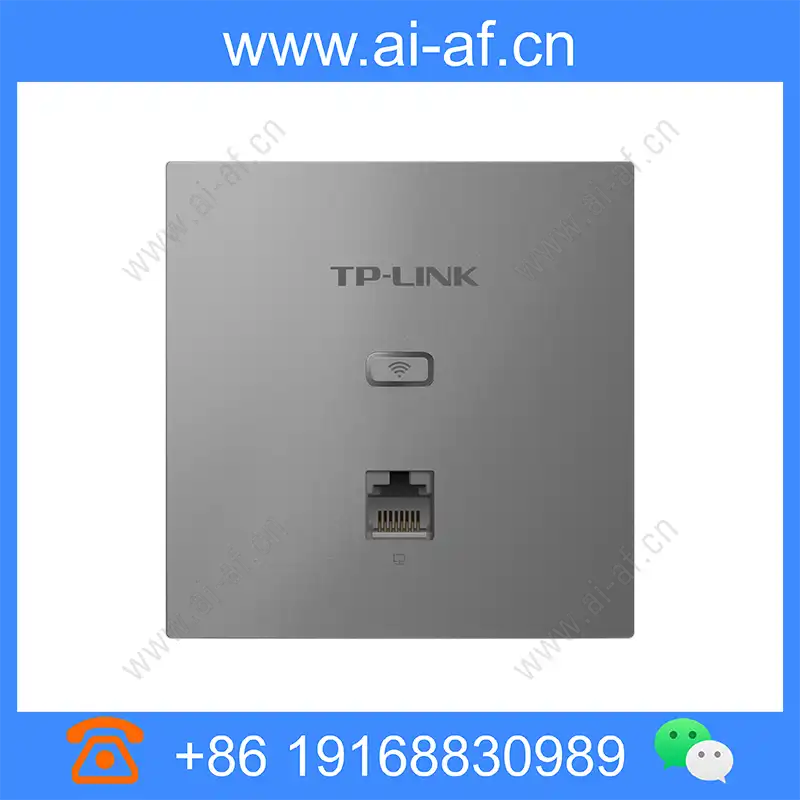

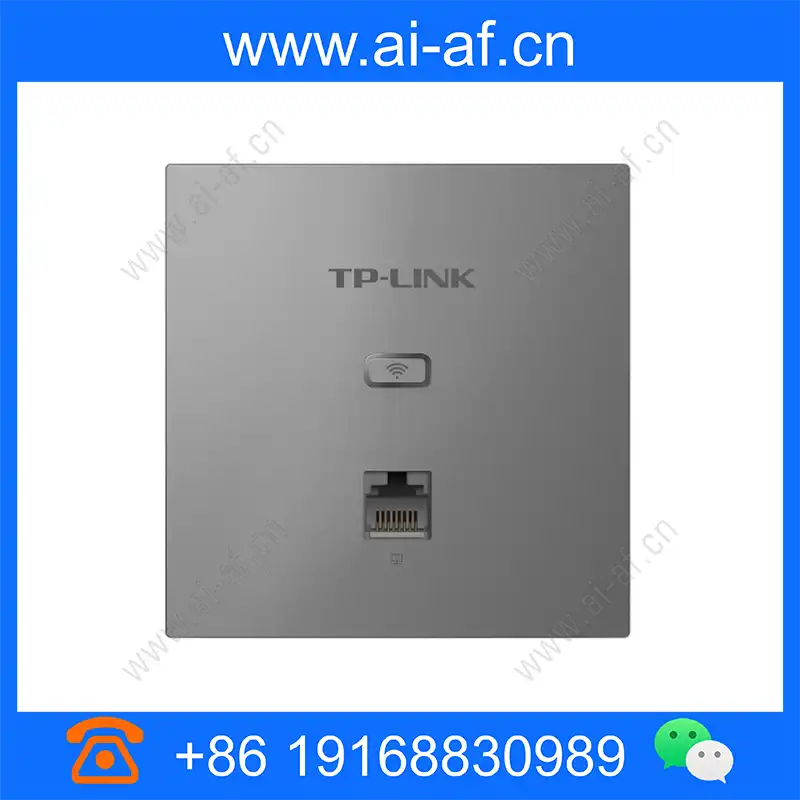

TP-LINK TL-AP450I-PoE Thin Deep Space Silver 2.4GHz 450M Single Frequency Wireless Panel AP
11N wireless technology, 450Mbps wireless rate 86 type panel design, ultra-thin shell, stylish appearance WiFi/LED lights can be turned off 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments 4.0 version of the new appearance shell, simple and stylish Support TP-LINK business cloud APP remote view / management Product model TL-AP450I-PoE Thin Space Silver (Square) Version 3.0 Installation method Install directly into national standard 86 type network connection cassette size 86*87.5*33mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps port Front: 1
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP450I-PoE Thin Space Silver (Square) Version 3.0 |

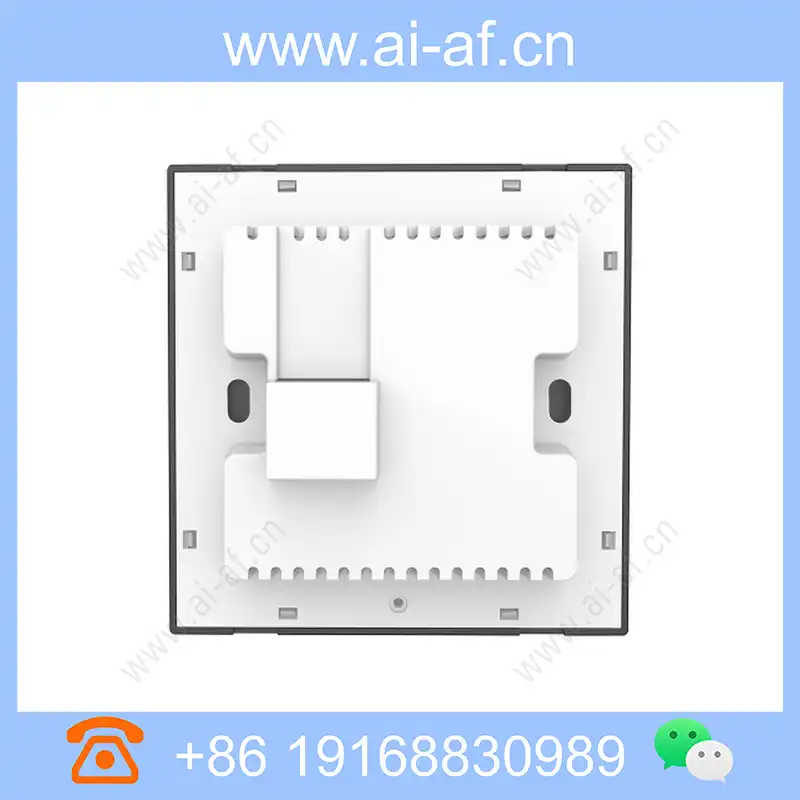

| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*87.5*33mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps |

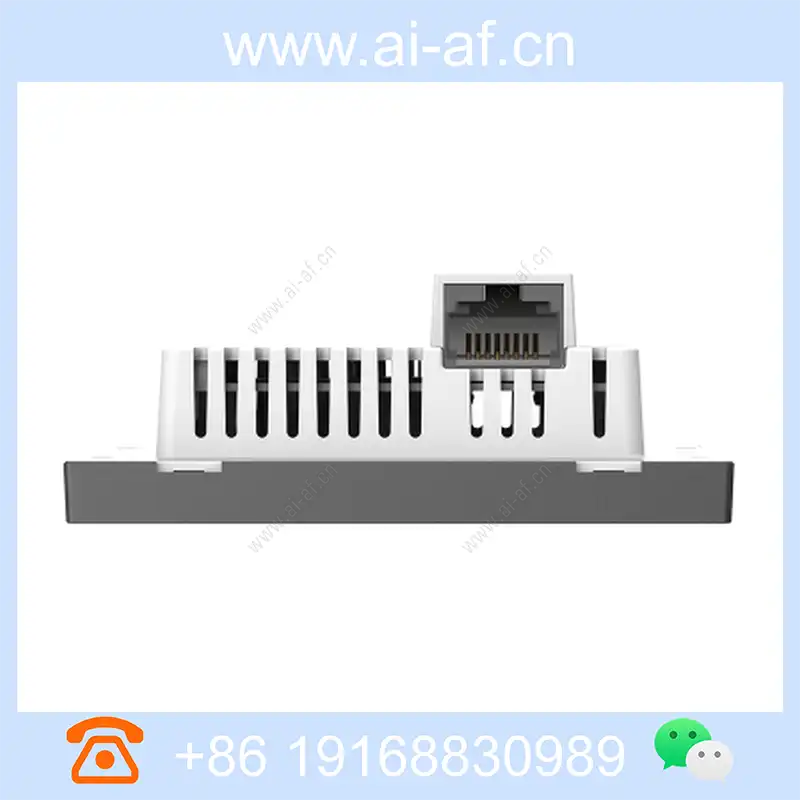

| port | Front: 1 10/100M RJ45 port Back: 1 10/100M RJ45 port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 WiFi/LED/Reset multiplexing button 1 FAT/FIT mode toggle switch 1 Reset button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 3.91W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, host network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal equipment access: support to remove weak signal equipment: support |
| Maximum number of connectable clients | 50 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
