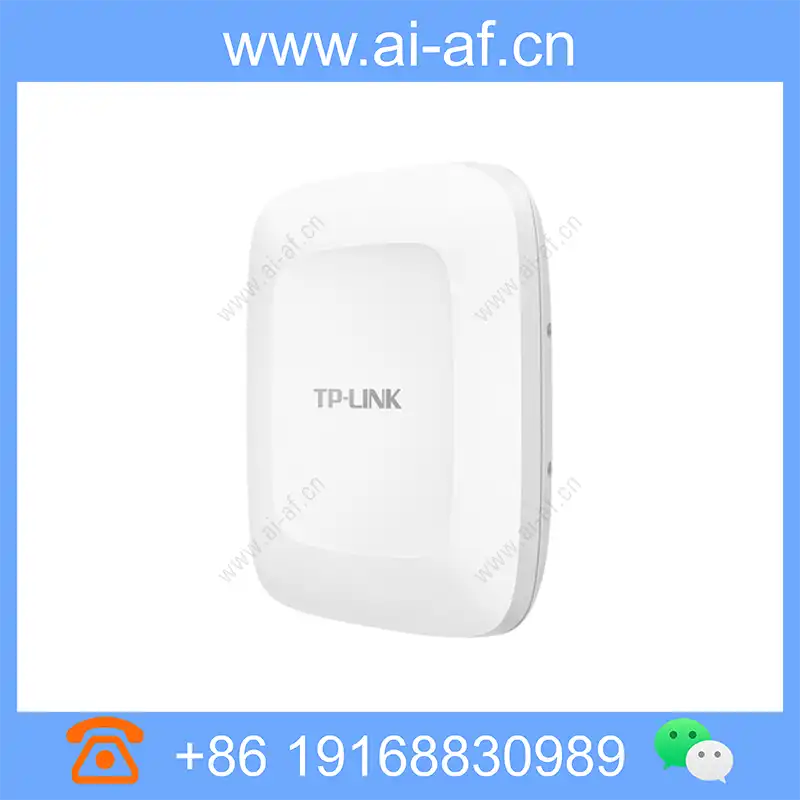

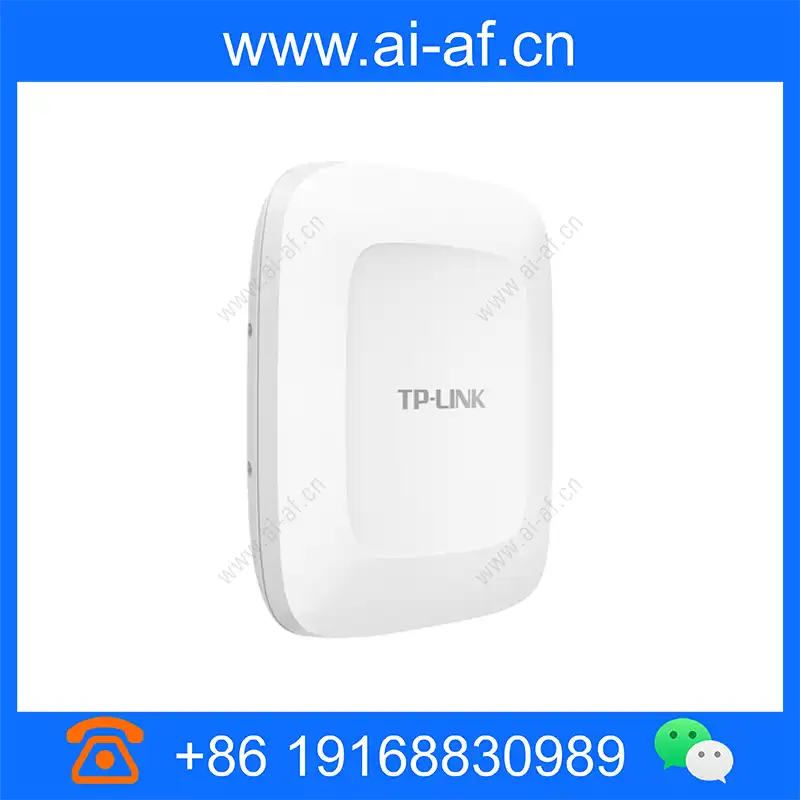

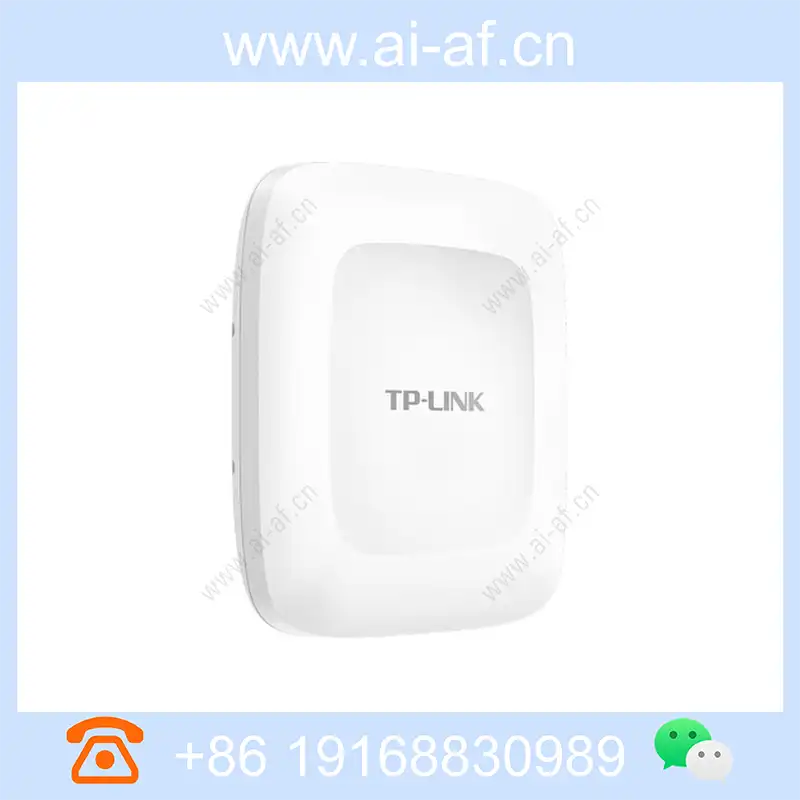

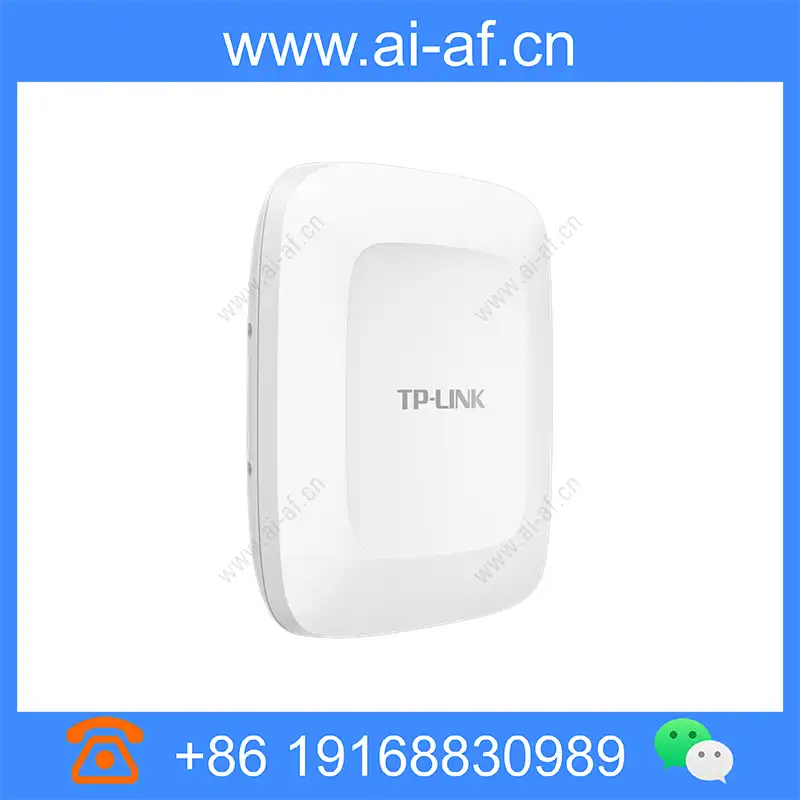

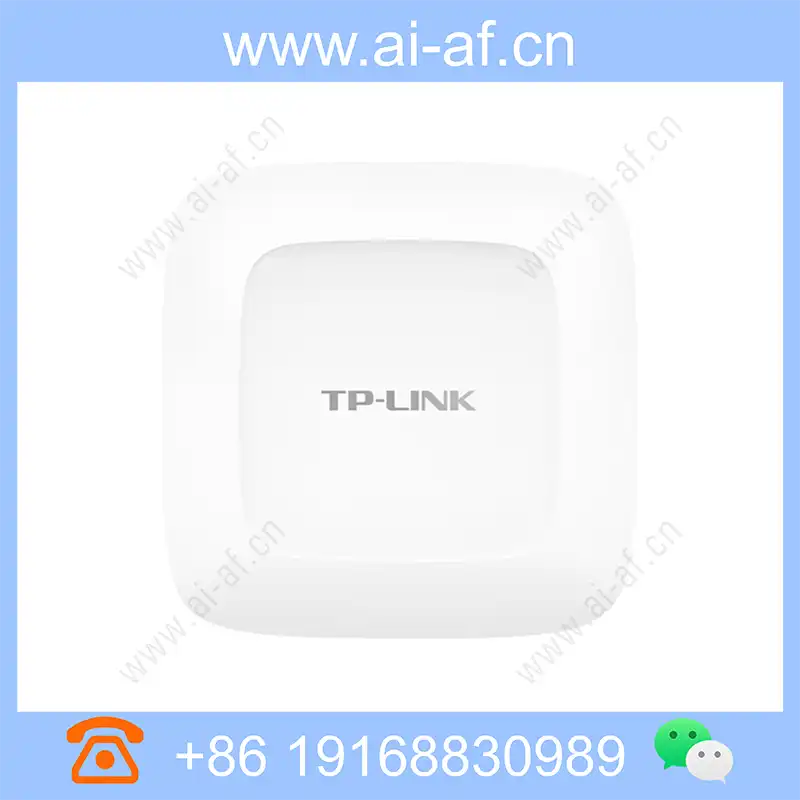

TP-LINK TL-AP450GP Omnidirectional 2.4GHz 450M single frequency outdoor high power wireless AP
11N wireless technology, wireless rate up to 450Mbps Built-in omniDirectional antenna, independent radio frequency circuit design, coverage radius up to 180 meters Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments Automatic selection of suitable channels, smooth and stable network Linear adjustable power, effectively reducing mutual interference between APs Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Independent hardware protection circuit can automatically recover abnormal AP Passive PoE network cable power supply, flexible deployment Pole/wall installation, flexible and simple Fat and thin integrated, wireless
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP450GP omniDirectional |
| Installation method | Pole / wall mounting |
| size | 360*360*60mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 450Mbps |
| port | 1 10/100/1000Mbps RJ45 port |
| antenna | Built-in 5dBi omniDirectional antenna |
| Antenna coverage angle | 360° |
| Indicator light | 1 system indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 24VDC / 0.7A Passive PoE power supply, power supply distance up to 60M |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Environmental protection | IP68 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Recommended coverage distance (open environment) | 180 meters (when used with different wireless terminals, the actual coverage distance may vary) |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit weak signal devices from connecting Entry: Support |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
| Recommended wireless band capacity | 30 |
| Maximum wireless belt capacity | 100 |
