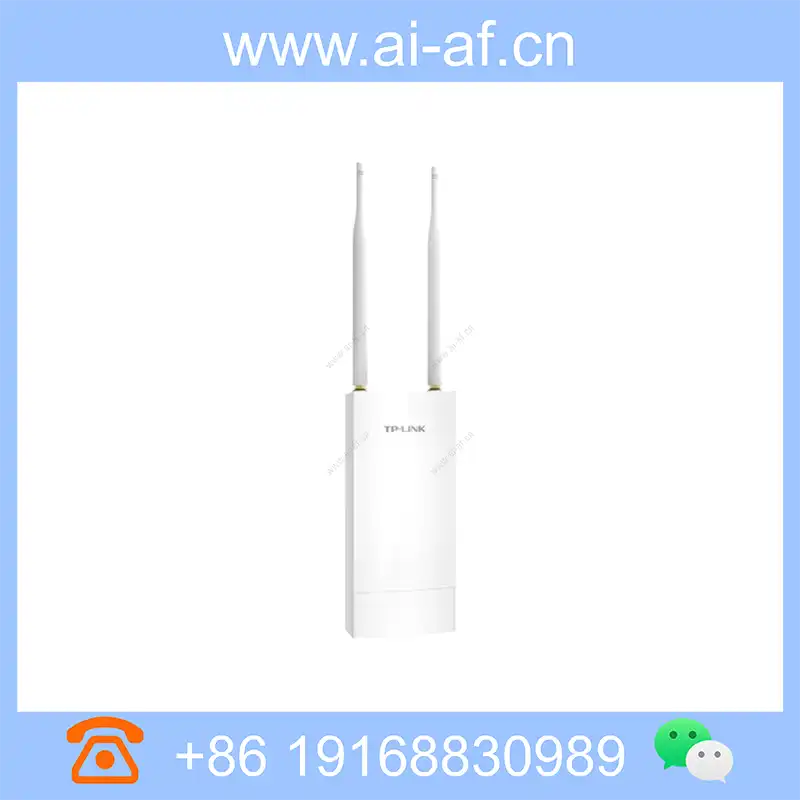

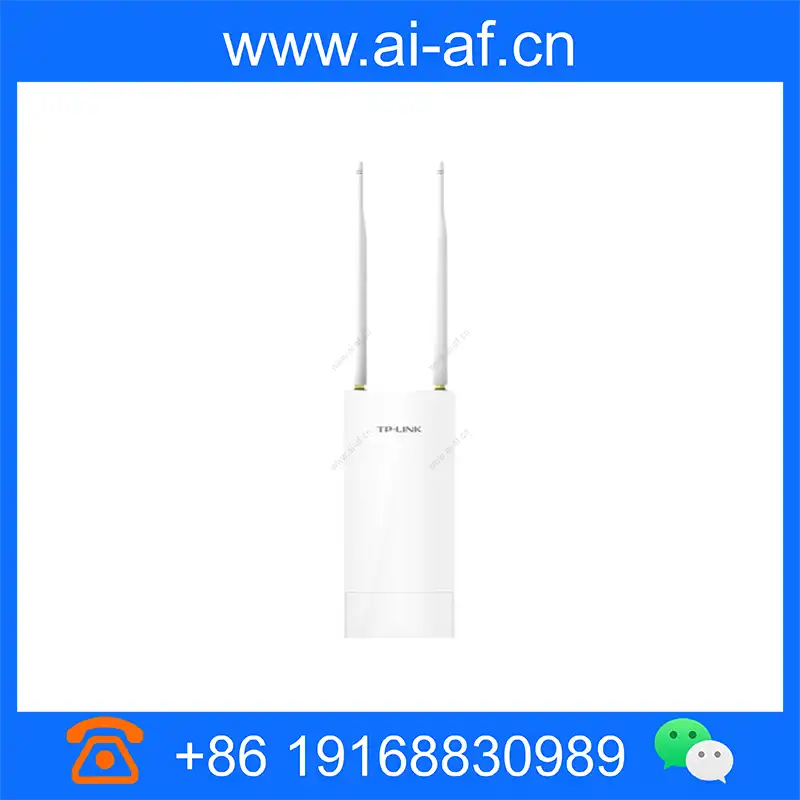

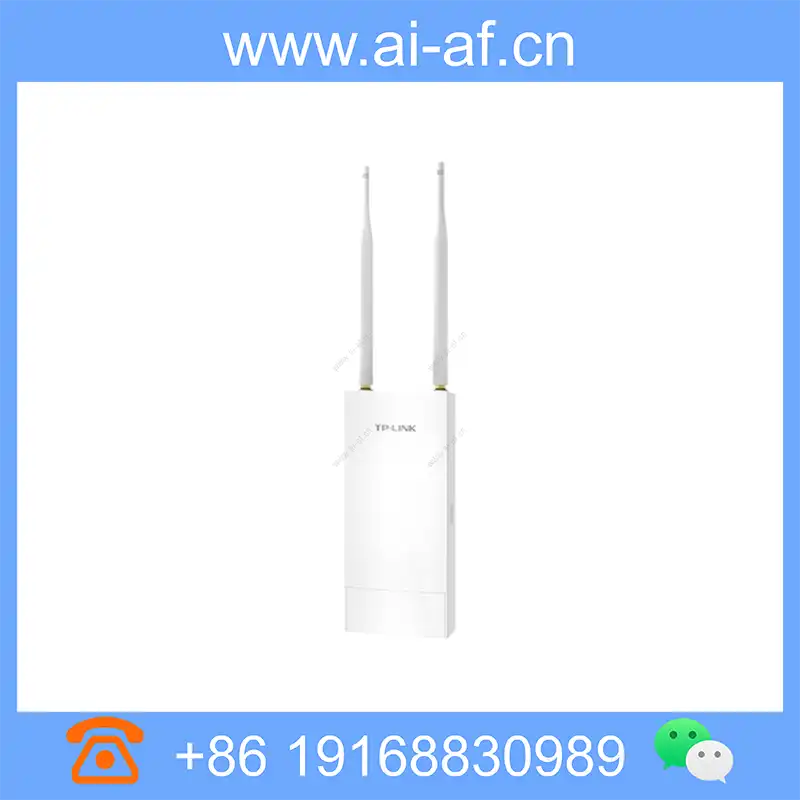

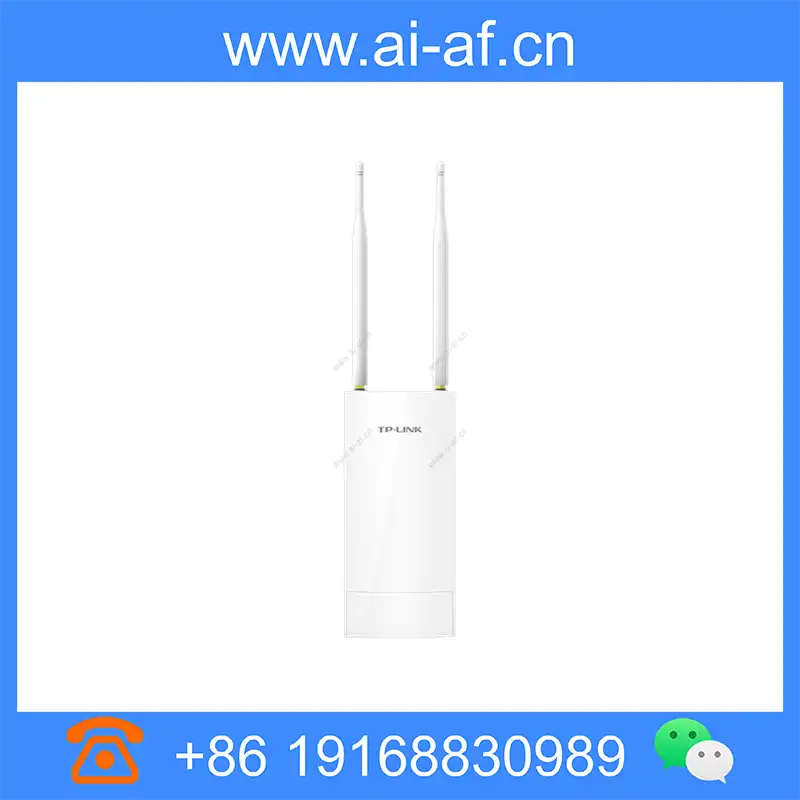

TP-LINK TL-AP302P 2.4GHz 300M single frequency outdoor wireless AP
300M wireless, external 5dBi omniDirectional waterproof antenna, outdoor professional omniDirectional wireless coverage Professional outdoor shell design, adapt to various harsh environments Automatic selection of suitable channels, smooth and stable network Linear adjustable power, effectively reducing mutual interference between APs Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Independent hardware protection circuit can automatically recover abnormal AP Up to 8 SSIDs can be set, supporting dual-code Chinese SSIDs, stylish and practical Support DC and Passive PoE two power supply modes, flexible layout Pole/wall installation, flexible and simple Fat and thin integrated, wireless networks of different sizes can be
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP302P |
| Installation method | Pole / wall mounting |
| size | 209*95*43mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps |

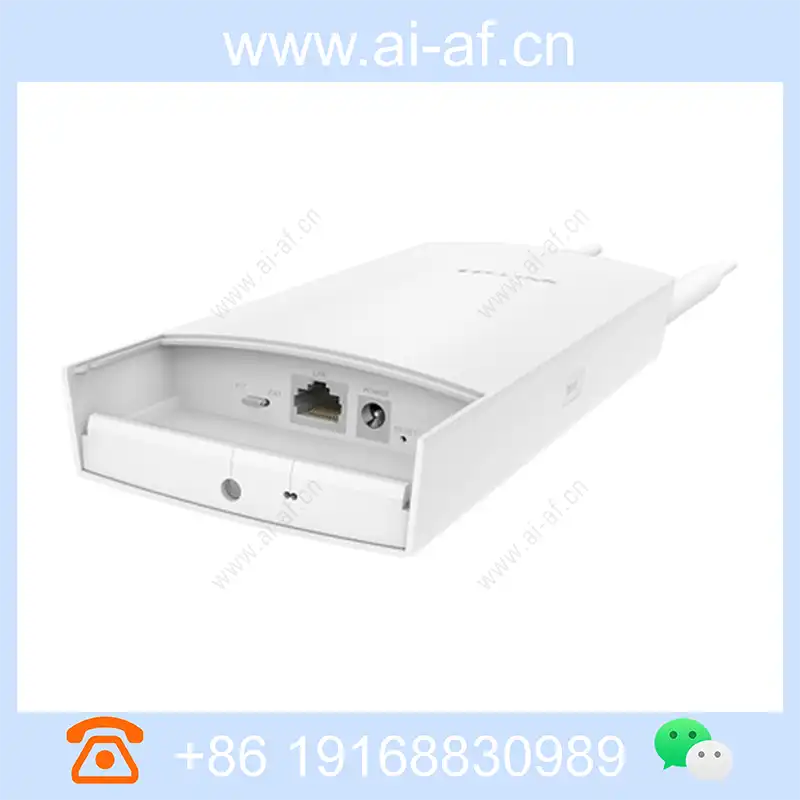

| port | 1 10/100Mbps RJ45 port 1 DC interface |
| antenna | 5dBi omniDirectional detachable waterproof antenna |
| Antenna coverage angle | 360° |
| Indicator light | 1 system indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 9VDC / 0.85A. Support Passive PoE power supply, power supply distance up to 60 meters |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Environmental protection | ASA engineering plastic casing, IP65 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit weak signal devices from connecting Entry: Support |
| Maximum number of connectable clients | 100 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
