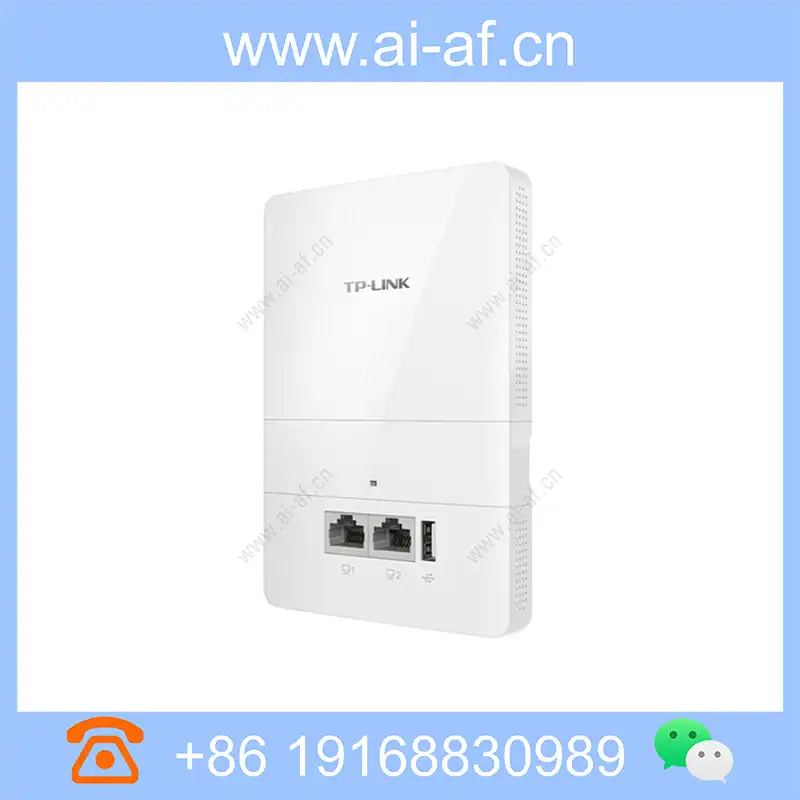

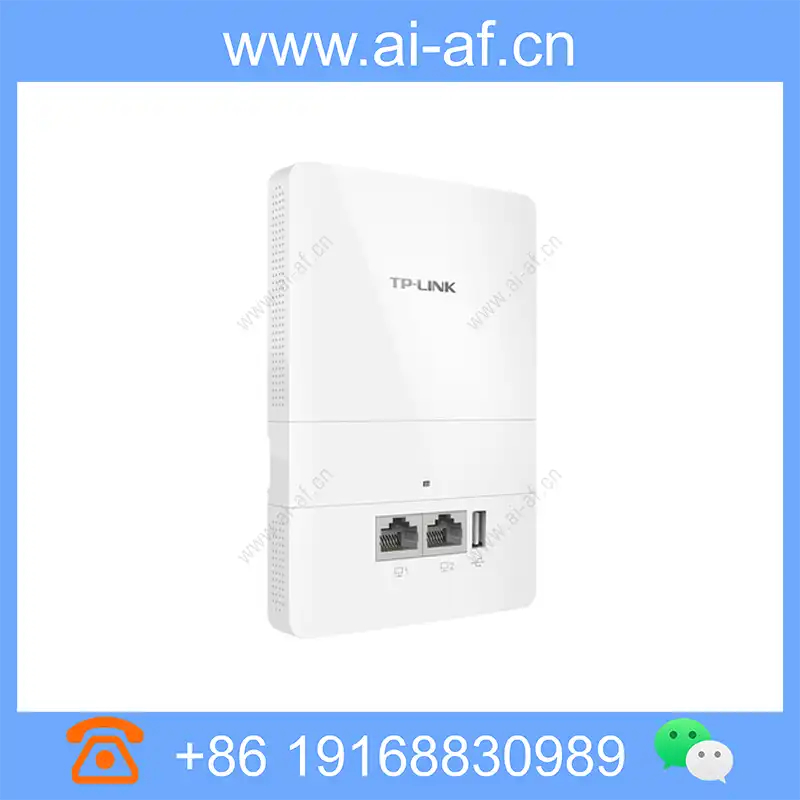

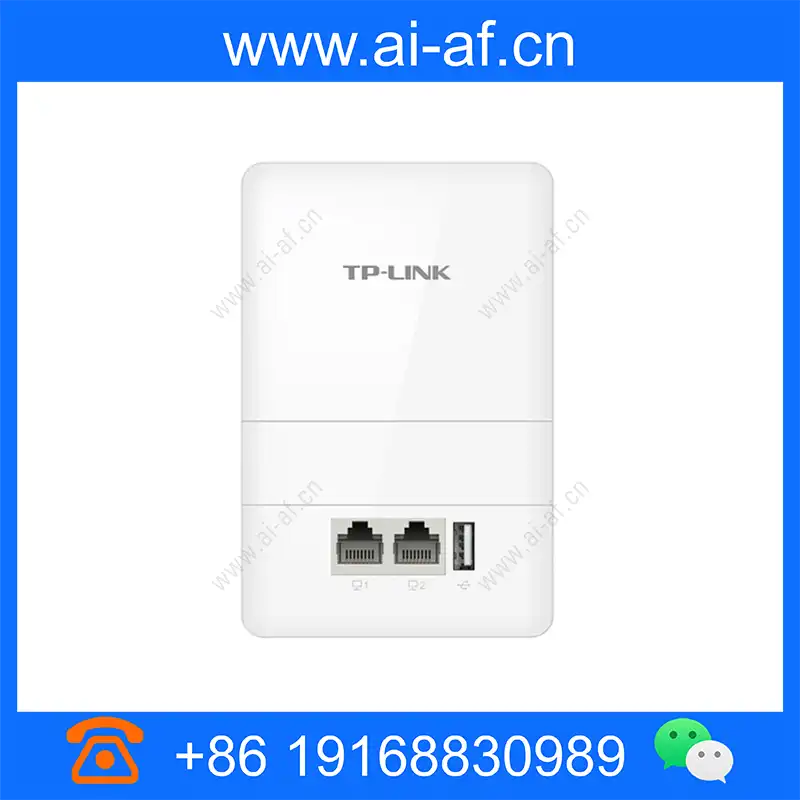

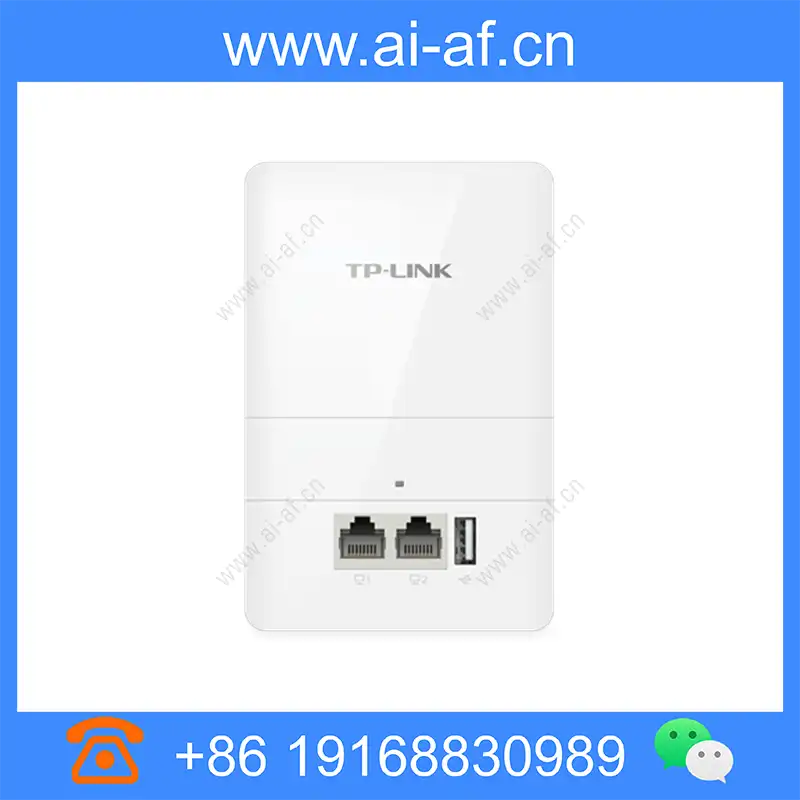

TP-LINK TL-AP1203I-PoE AC1200 dual-band wireless panel AP
11AC wireless technology, 2.4G/5G dual-band concurrent, wireless rate up to 1167Mbps Dual network port design to meet the simultaneous wired access needs of multiple terminals 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments Support TP-LINK business cloud APP remote view / management Product model TL-AP1203I-PoE Installation method Install directly into national standard 86 type network connection cassette size 132*86*42mm Wireless rate 2.4GHz :300Mbps 5GHz :867Mbps port Front: 2 10/100M RJ45 ports, 1 USB port (support 5VDC 1A output) Back: 1 10/100M RJ45 port antenna Built-in
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1203I-PoE |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 132*86*42mm |
| Wireless rate | 2.4GHz :300Mbps 5GHz :867Mbps |

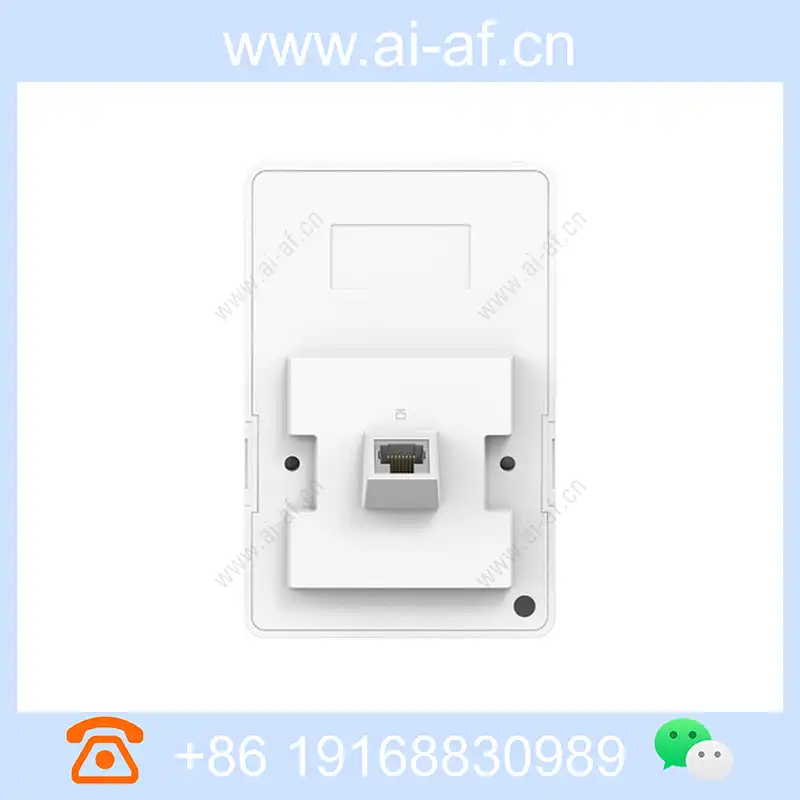

| port | Front: 2 10/100M RJ45 ports, 1 USB port (support 5VDC 1A output) Back: 1 10/100M RJ45 port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 FAT/FIT mode toggle switch 1 Reset button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 13W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4G) + 8 (5G) (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: between wireless networks Isolation, AP internal isolation Wireless MAC address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal device access In: support to remove weak signal equipment: support |
| Maximum number of connectable clients | 100(2.4G)+100(5G) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
