TAMRON SMA11F16 1" 16mm F/1.6-22 Manual Iris SWIR Machine Vision Lens C Mount

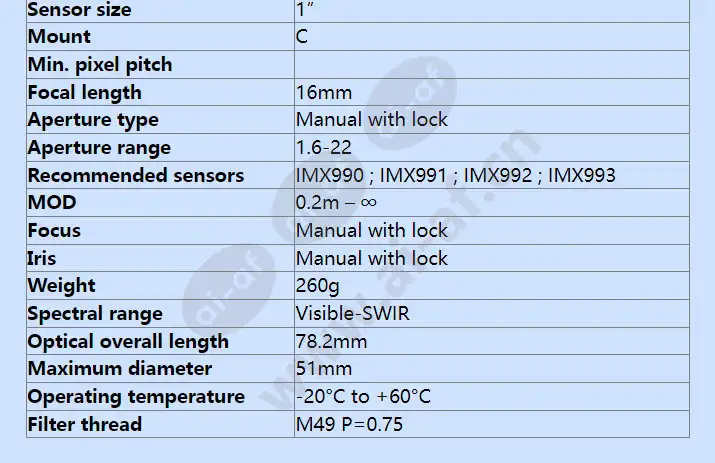

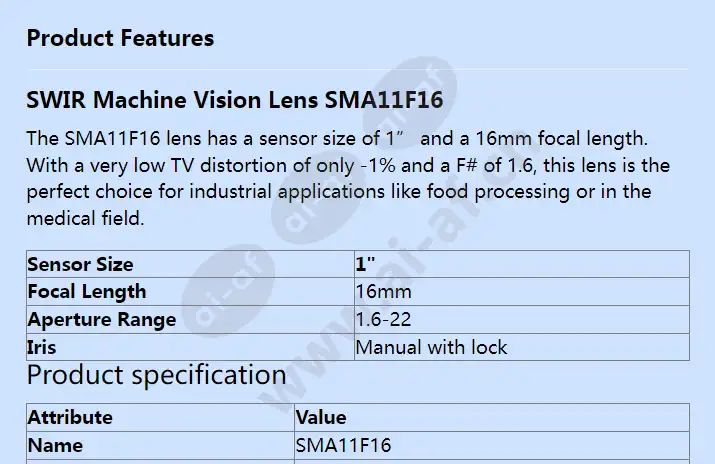

SWIR Machine Vision Lens SMA11F16 The SMA11F16 lens has a sensor size of 1” and a 16mm focal length. With a very low TV distortion of only -1% and a F# of 1.6, this lens is the perfect choice for industrial applications like food processing or in the medical field. Sensor Size 1" Focal Length 16mm Aperture Range 1.6-22 Iris Manual with lock Product specification Attribute Value Name SMA11F16 Sensor size 1″ Mount C Min. pixel pitch Focal length 16mm Aperture type Manual with lock Aperture range 1.6-22 Recommended sensors IMX990 ; IMX991 ; IMX992 ; IMX993 MOD 0.2m – ∞ Focus Manual with lock Iris Manual with lock Weight 260g Spectral range Visible-SWIR Optical overall length 78.2mm Maximum diameter 51mm Operating temperature -20°C to +60°C Filter thread M49 P=0.75
