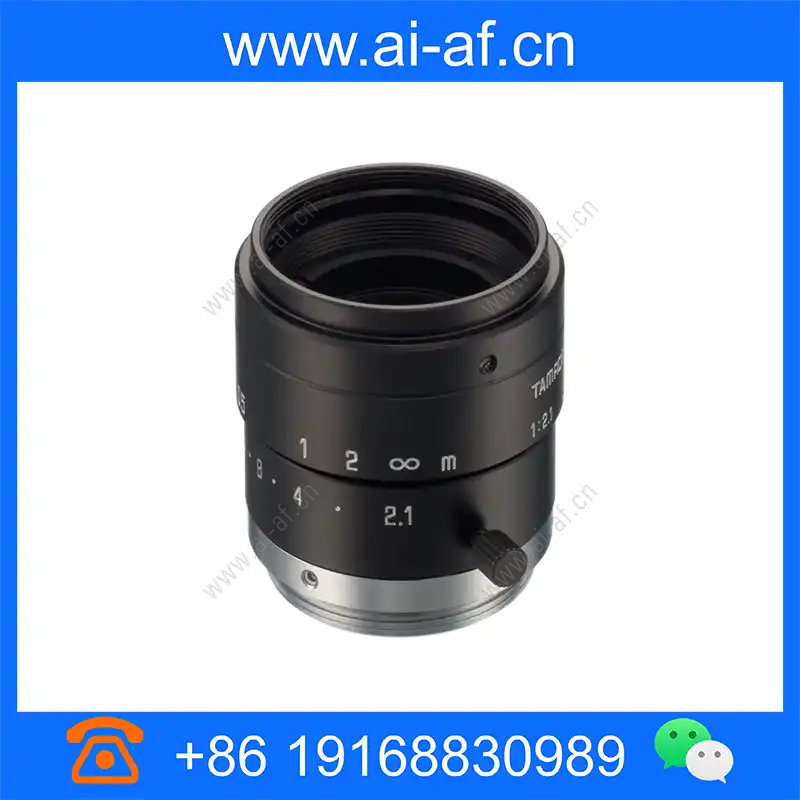

TAMRON 35HB 2/3" 35mm F/2.1-22 Manual Iris Machine Vision Lens C Mount

Brand: TAMRON
Model: 35HB

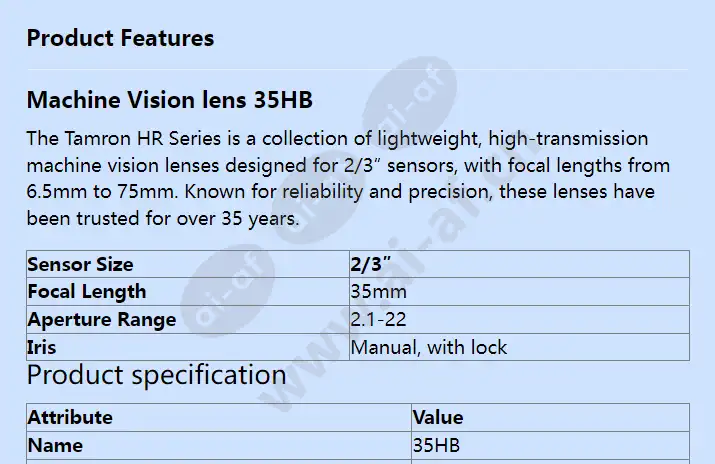

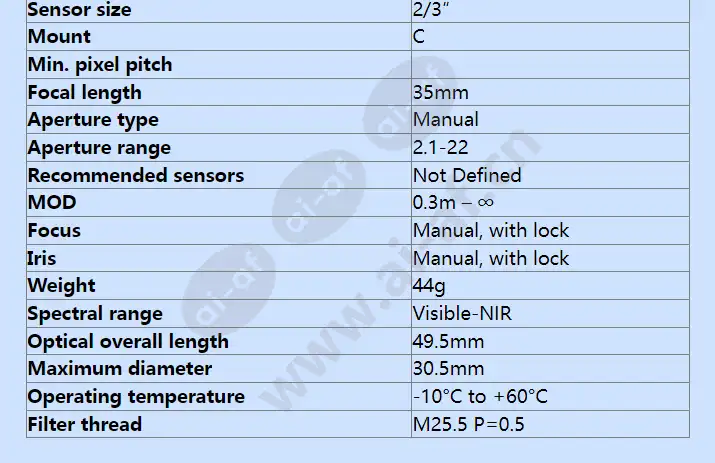

Machine Vision lens 35HB The Tamron HR Series is a collection of lightweight, high-transmission machine vision lenses designed for 2/3″ sensors, with focal lengths from 6.5mm to 75mm. Known for reliability and precision, these lenses have been trusted for over 35 years. Sensor Size 2/3″ Focal Length 35mm Aperture Range 2.1-22 Iris Manual, with lock Product specification Attribute Value Name 35HB Sensor size 2/3″ Mount C Min. pixel pitch Focal length 35mm Aperture type Manual Aperture range 2.1-22 Recommended sensors Not Defined MOD 0.3m – ∞ Focus Manual, with lock Iris Manual, with lock Weight 44g Spectral range Visible-NIR Optical overall length 49.5mm Maximum diameter 30.5mm Operating temperature -10°C to +60°C Filter thread M25.5 P=0.5
