Pelco POE75U-1UP-EUK 75 Watt Power Over Ethernet Single Port Injector

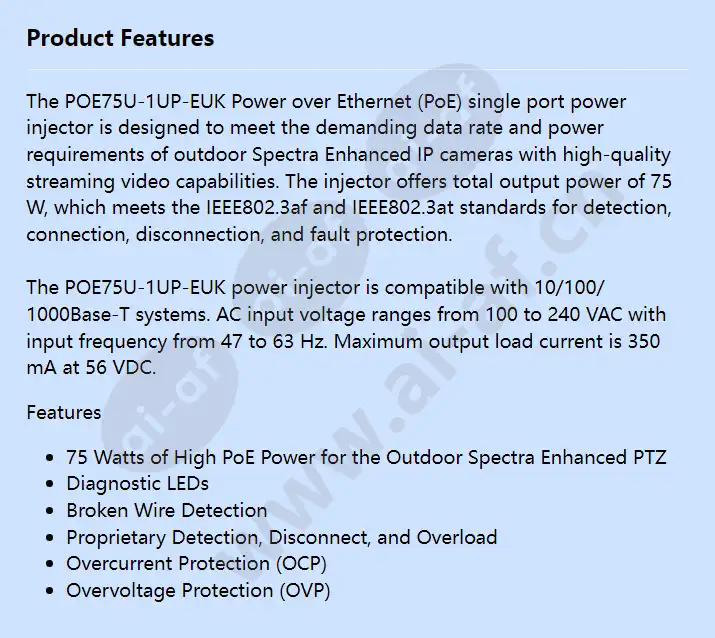

The POE75U-1UP-EUK Power over Ethernet (PoE) single port power injector is designed to meet the demanding data rate and power requirements of outdoor Spectra Enhanced IP cameras with high-quality streaming video capabilities. The injector offers total output power of 75 W, which meets the IEEE802.3af and IEEE802.3at standards for detection, connection, disconnection, and fault protection. The POE75U-1UP-EUK power injector is compatible with 10/100/ 1000Base-T systems. AC input voltage ranges from 100 to 240 VAC with input frequency from 47 to 63 Hz. Maximum output load current is 350 mA at 56 VDC. Features 75 Watts of High PoE Power for the Outdoor Spectra Enhanced PTZ Diagnostic LEDs Broken Wire Detection Proprietary Detection, Disconnect, and Overload Overcurrent Protection (OCP)
