Pelco EC-4BY1SWCPOE-W EthernetConnect 4-Port Self Managed POE Switch

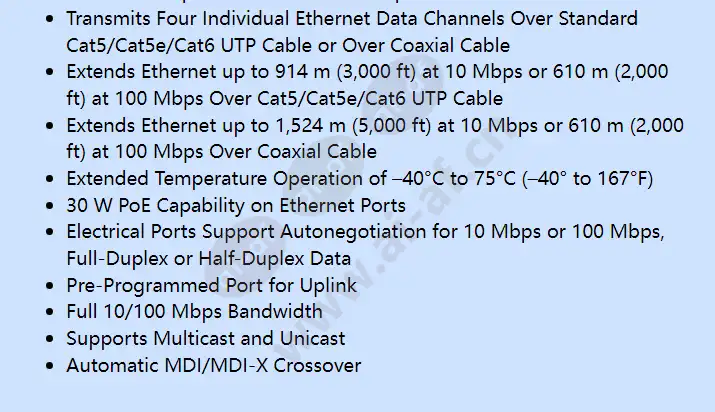

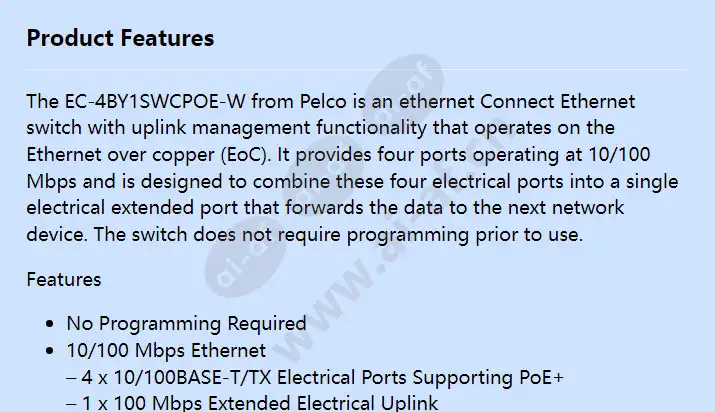

The EC-4BY1SWCPOE-W from Pelco is an ethernet Connect Ethernet switch with uplink management functionality that operates on the Ethernet over copper (EoC). It provides four ports operating at 10/100 Mbps and is designed to combine these four electrical ports into a single electrical extended port that forwards the data to the next network device. The switch does not require programming prior to use. Features No Programming Required 10/100 Mbps Ethernet – 4 x 10/100BASE-T/TX Electrical Ports Supporting PoE+ – 1 x 100 Mbps Extended Electrical Uplink Transmits Four Individual Ethernet Data Channels Over Standard Cat5/Cat5e/Cat6 UTP Cable or Over Coaxial Cable Extends Ethernet up to 914 m (3,000 ft) at 10 Mbps or 610 m (2,000 ft) at 100 Mbps Over Cat5/Cat5e/Cat6 UTP Cable Extends Ethernet up
