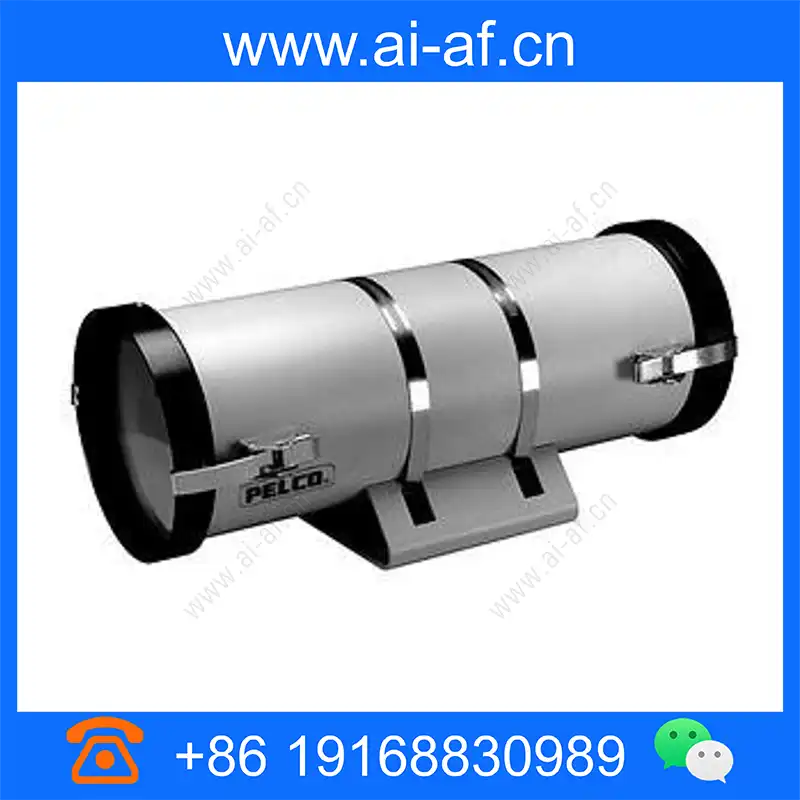

Pelco E706-16P Enclosure None

Brand: PELCO
Model: E706-16P

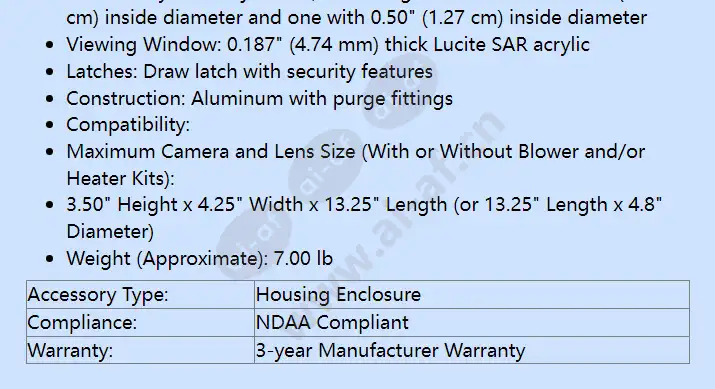

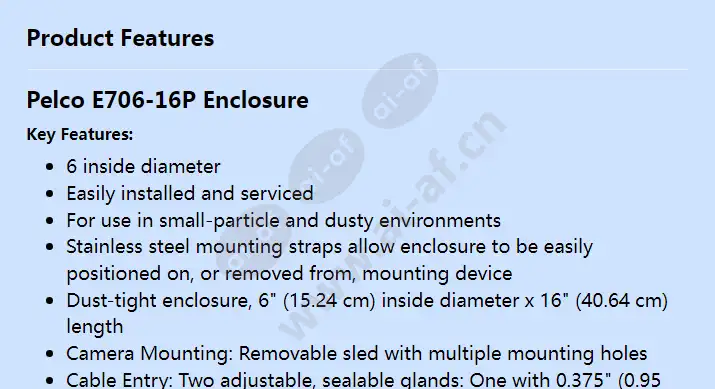

Pelco E706-16P Enclosure Key Features: 6 inside diameter Easily installed and serviced For use in small-particle and dusty environments Stainless steel mounting straps allow enclosure to be easily positioned on, or removed from, mounting device Dust-tight enclosure, 6" (15.24 cm) inside diameter x 16" (40.64 cm) length Camera Mounting: Removable sled with multiple mounting holes Cable Entry: Two adjustable, sealable glands: One with 0.375" (0.95 cm) inside diameter and one with 0.50" (1.27 cm) inside diameter Viewing Window: 0.187" (4.74 mm) thick Lucite SAR acrylic Latches: Draw latch with security features Construction: Aluminum with purge fittings Compatibility: Maximum Camera and Lens Size (With or Without Blower and/or Heater Kits): 3.50" Height x 4.25" Width x 13.25" Length (or
