Pelco C10-UM Universal Indoor Camera Mount (Wall Ceiling T-Rail) None

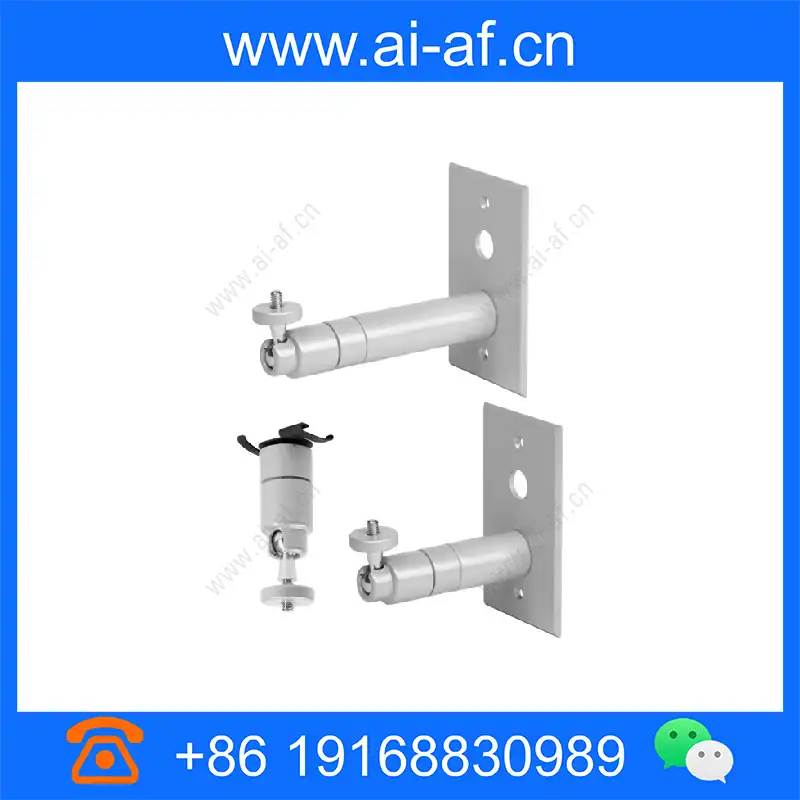

Pelco C10-UM Universal C10 Series Camera Mount The C10-UM is a universal camera mount kit that includes all the components for wall, ceiling, or T-rail clip installations for most box type cameras with 1/4 x 20-inch mounting holes. The kit supports cameras weighing up to 7 lb (3.18 kg). The ball socket of the kit allows for 360-degree pan adjustment and 90-degree tilt adjustment. The C10-UM mounting plate is designed to attach a standard 2 x 4-inch (5.08 x 10.16 cm) electrical box, or it can be flush mounted to the ceiling or a wall (hardware not supplied). A T-rail clip is included for installations where the mounting plate cannot be used. Designed with a fully adjustable ball socket, the C10-UM allows for camera adjustment from a level position to a tilt angle of 90 degrees and a
