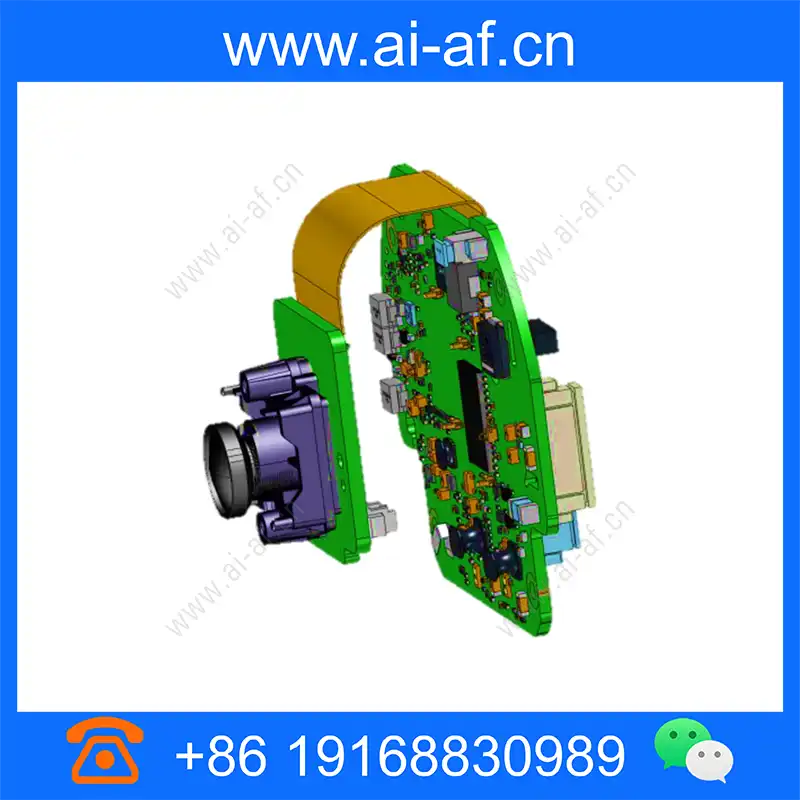

Huawei HSMDU2140-Ex 1T 4MP Smart Camera Module

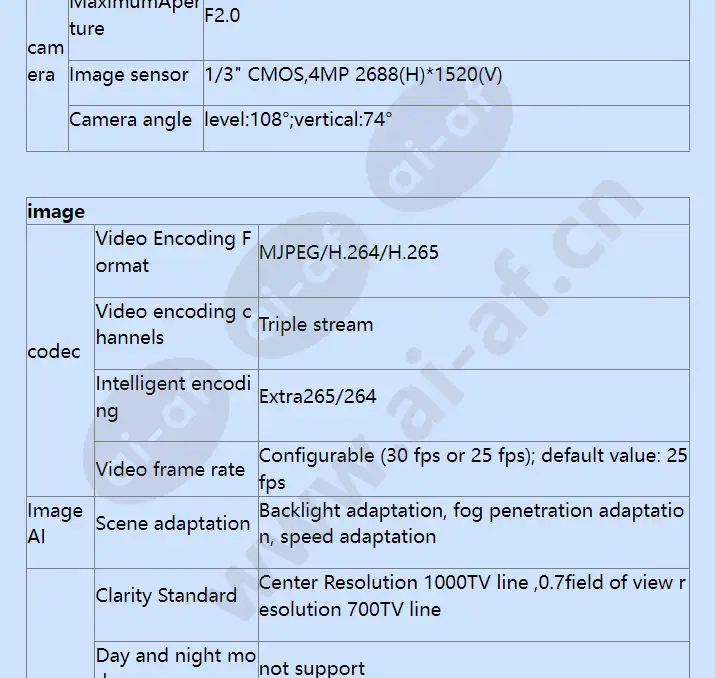

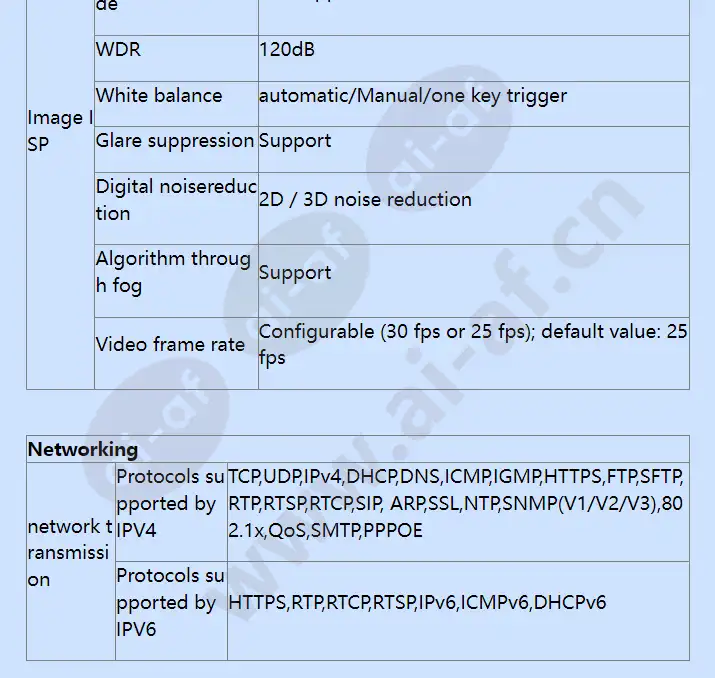

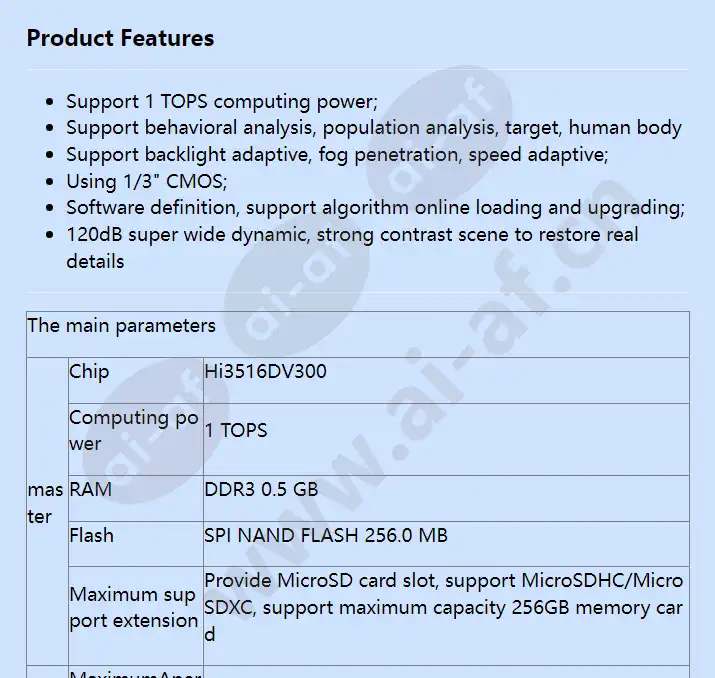

Support 1 TOPS computing power; Support behavioral analysis, population analysis, target, human body Support backlight adaptive, fog penetration, speed adaptive; Using 1/3" CMOS; Software definition, support algorithm online loading and upgrading; 120dB super wide dynamic, strong contrast scene to restore real details The main parameters master Chip Hi3516DV300 Computing power 1 TOPS RAM DDR3 0 .5 GB Flash SPI NAND FLASH 256 .0 MB Maximum support extension Provide MicroSD card slot, support MicroSDHC/MicroSDXC, support maximum capacity 256GB memory card camera MaximumAperture F 2.0 Image sensor 1/ 3 " CMOS, 4 MP 2 688 (H )* 1 5 20(V ) Camera angle level : 108 ° ; vertical : 74 ° image codec Video Encoding Format MJPEG/H.264/H.265 Video encoding channels Triple stream Intelligent encoding
