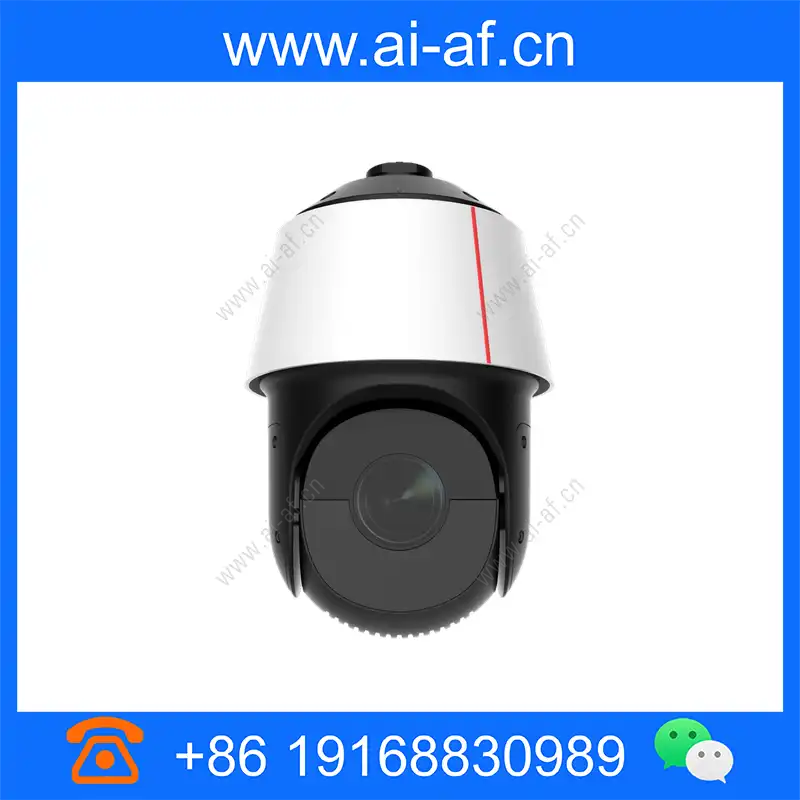

Huawei C662A-Z23 2MP Starlight IR Fixed Dome Camera 02352RBX

Brand: HUAWEI
Model: C662A-Z23
Weight: 5.30kg

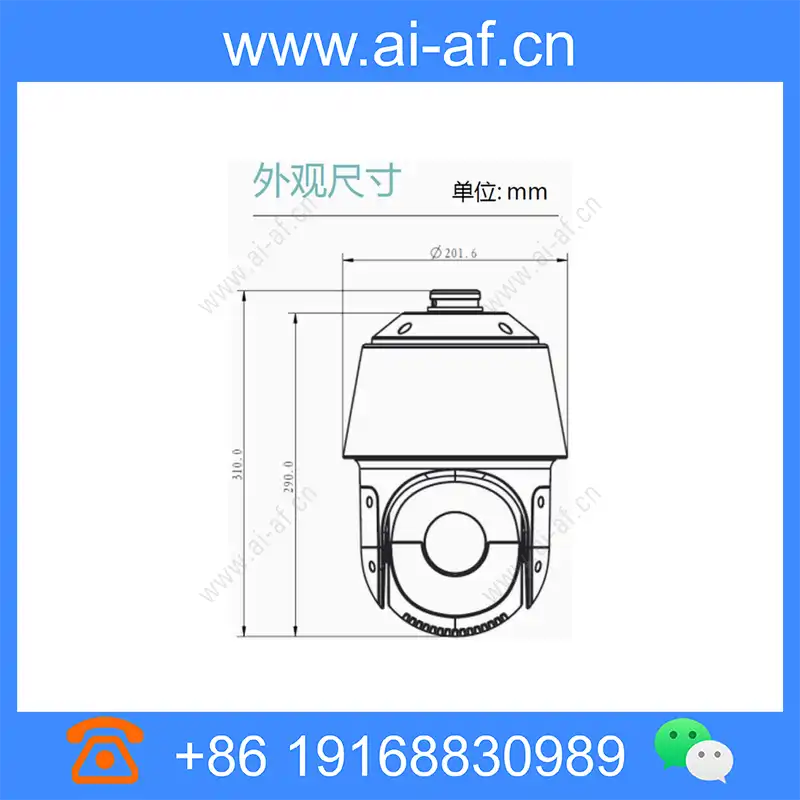

Dimensions: 400mm x 295mm x 295mm

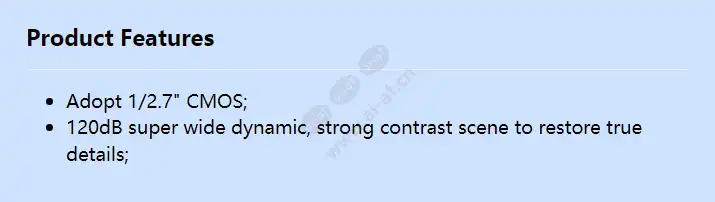

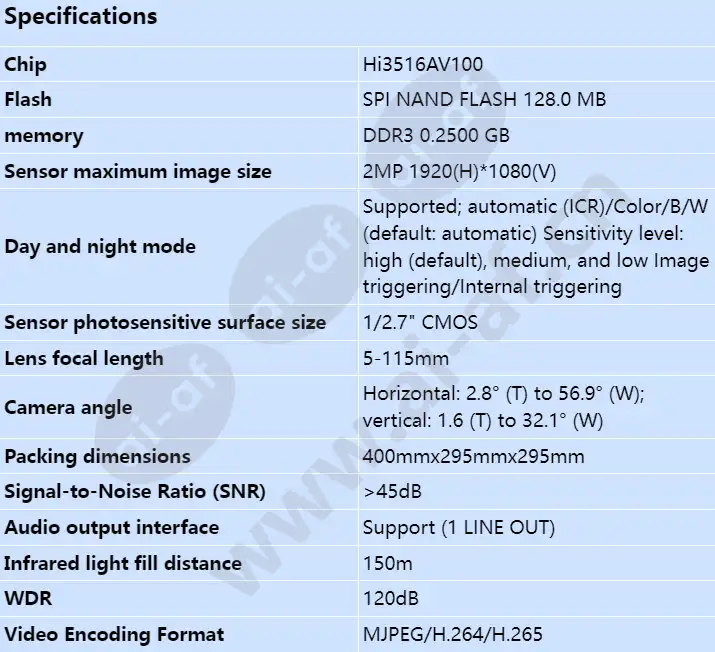

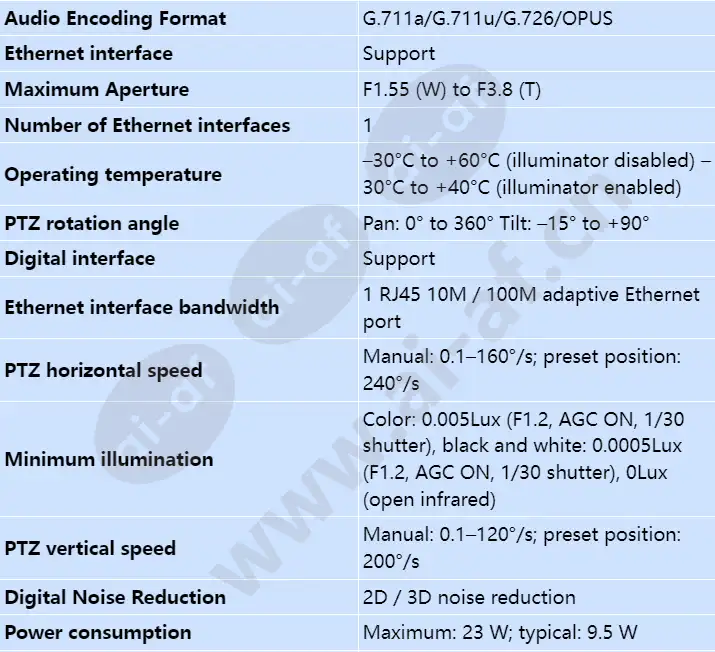

Adopt 1/2.7" CMOS; 120dB super wide dynamic, strong contrast scene to restore true details; Chip Hi3516AV100 RAM DDR3 0.2500 GB Flash SPI NAND FLASH 128.0 MB Sensor maximum image size 2MP 1920(H)*1080(V) Sensor photosensitive surface size 1/2.7" CMOS Minimum illumination Color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (open infrared) Lens focal length 5-115mm Camera angle Horizontal: 2.8° (T) to 56.9° (W); vertical: 1.6 (T) to 32.1° (W) Infrared light fill distance 150m Video Encoding Format MJPEG/H.264/H.265 Audio encodingformat G.711a/G.711u/G.726/OPUS PTZ rotation angle Pan: 0° to 360° Tilt: –15° to +90° PTZ horizontal speed Manual: 0.1–160°/s; preset position: 240°/s PTZ vertical speed Manual: 0.1–120°/s; preset position:
