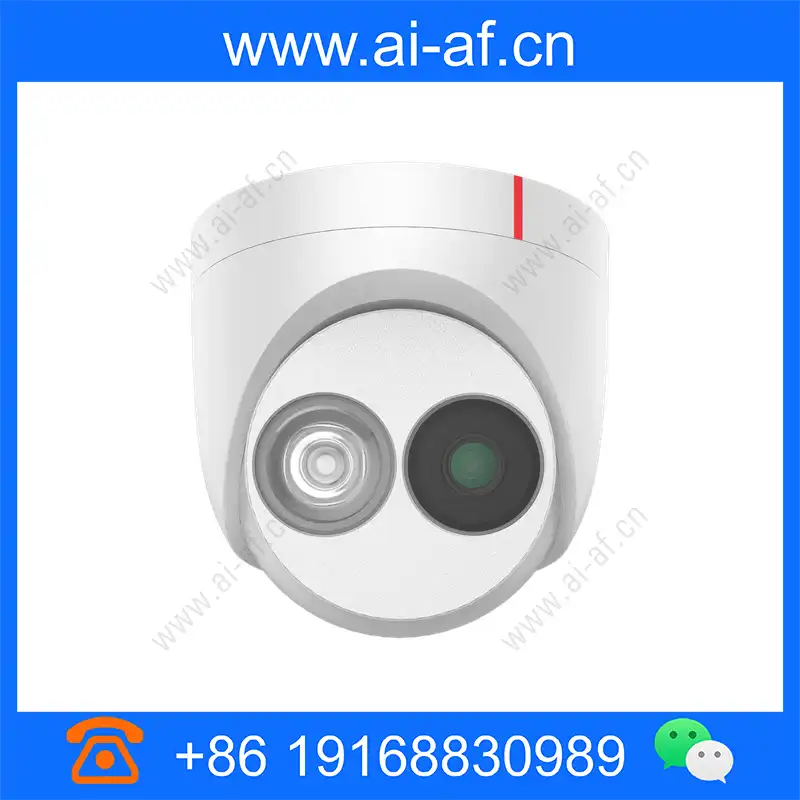

Huawei C305A-I(2.8mm) 5MP Starlight IR Fixed Dome Camera 02352VMF

Brand: HUAWEI
Model: C305A-I(2.8MM)
Weight: 0.39kg

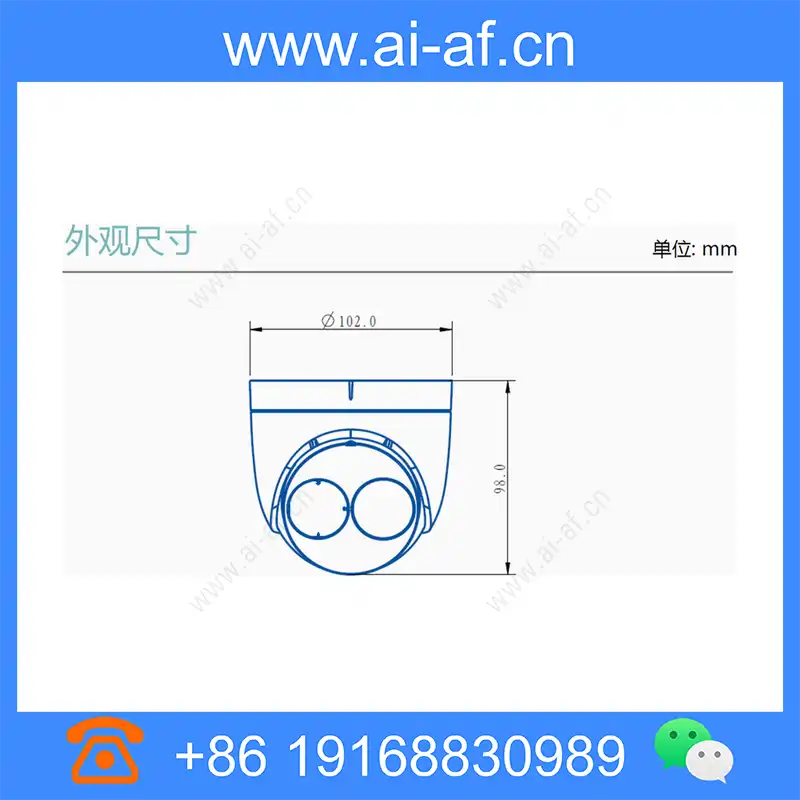

Dimensions: 114mm x 114mm x 126mm

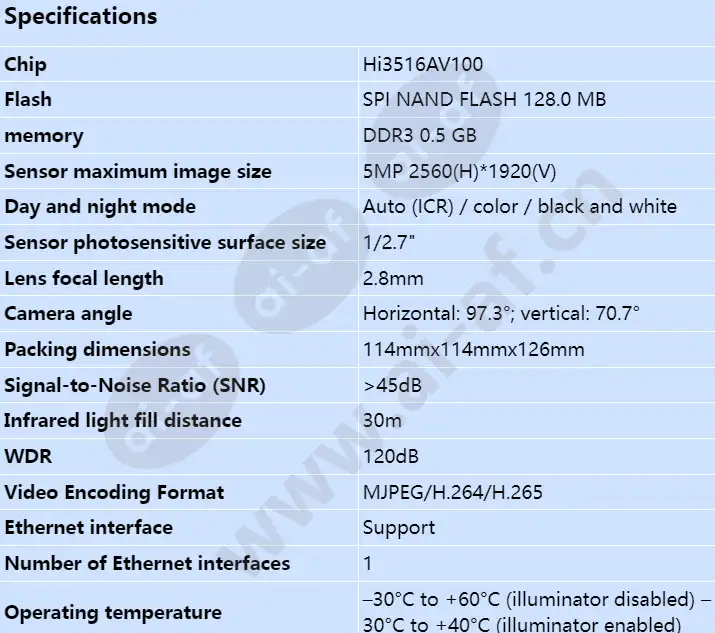

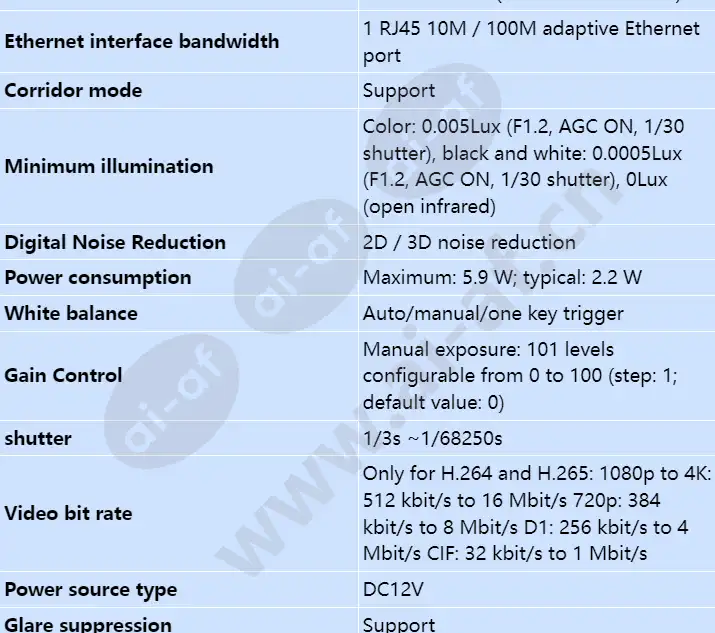

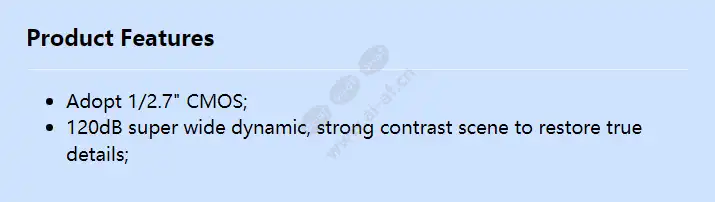

Adopt 1/2.7" CMOS; 120dB super wide dynamic, strong contrast scene to restore true details; Chip Hi3516AV100 RAM DDR3 0.5 GB Flash SPI NAND FLASH 128.0 MB Sensor maximum image size 5MP 2560(H)*1920(V) Sensor photosensitive surface size 1/2.7" Minimum illumination Color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0005Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (open infrared) Lens focal length 2.8mm Camera angle Horizontal: 97.3°; vertical: 70.7° Infrared light fill distance 30m Video Encoding Format MJPEG/H.264/H.265 Ethernet interface Support Number of Ethernet interfaces 1 Ethernet interface bandwidth 1 RJ45 10M / 100M adaptive Ethernet port Power type DC12V Power consumption Maximum: 5.9 W; typical: 2.2 W Operating temperature –30°C to +60°C (illuminator disabled) –30°C to
