Huawei C-M16(5MP)-23F14-2 Lens-C/CS Lens-5MP-16mm-C/CS-2/3 inch F1.4 48010283
Brand: HUAWEI
Model: C-M16(5MP)-23F14-2
Weight: 198g
Dimensions: 61.65mm x 40mm x 40mm

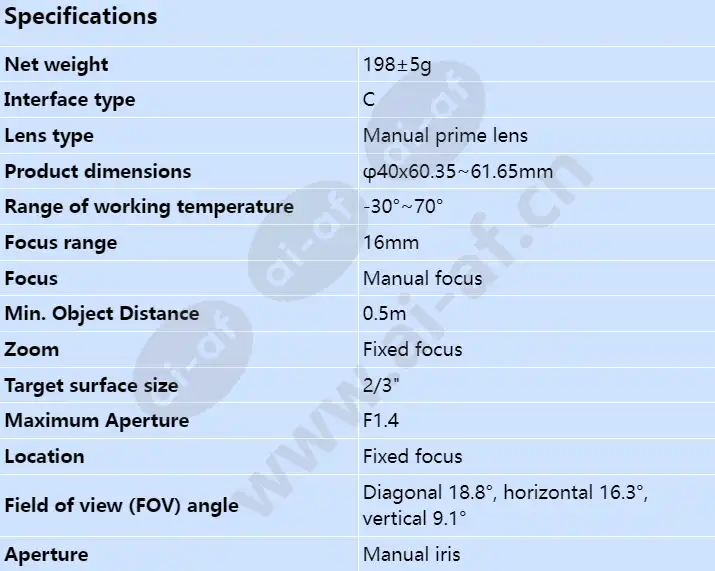

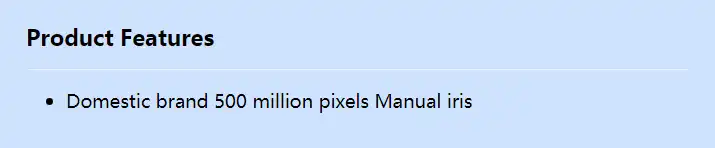

Domestic brand 500 million pixels Manual iris Net weight 198±5g Product dimensions φ40x60.35~61.65mm Range of working temperature -30°~70° Focus range 16mm Field of View Diagonal 18.8°, horizontal 16.3°, vertical 9.1° Focus Manual focus Lens mount C Lens type Manual prime lens Zoom Fixed focus Target surface size 2/3" Aperture Manual iris MaximumAperture F1.4 Min object distance 0.5m Location Fixed focus
-23f14-2_f_en.webp)
-23f14-2_s_en.webp)
